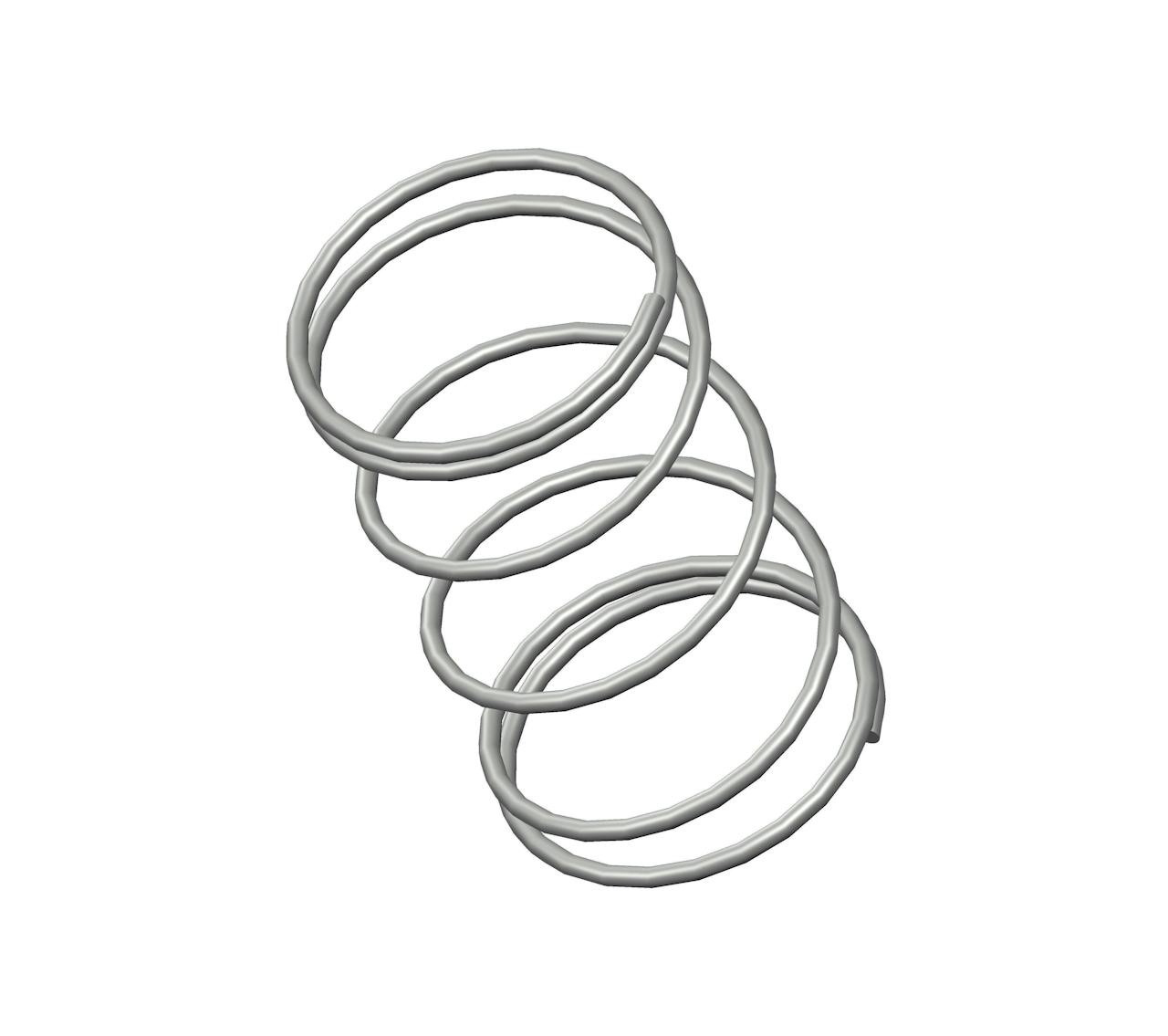

L-19CS - 1" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 6 coils and closed ends. This spring features an O.D. of 0.562", and an I.D. of 0.502".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-19 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 1 in |
| Inside Diameter | 0.502 in |
| Material | Music Wire |
| Outside Diameter | 0.562 in |
| Part Type | Standard |
| Rate | 1.9 lbs/in |
| SKU | L-19CS |
| Solid Length | 0.21 in |
| Suggested Max Deflection | 0.79 in |
| Suggested Max Load | 1.5 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.03 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-19 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 25.4 mm |
| Inside Diameter | 12.75 mm |
| Material | Music Wire |
| Outside Diameter | 14.27 mm |
| Part Type | Standard |
| Rate | 0.33 N/mm |
| SKU | L-19CS |
| Solid Length | 5.33 mm |
| Suggested Max Deflection | 20.07 mm |
| Suggested Max Load | 6.67 N |
| Total Coils | 6 |
| Wire Diameter | 0.76 mm |
The compression spring L-19CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the L-19 compression spring design exhibits exceptional tensile strength and resilience.
The L-19 design is manufactured with a free length of 1", with an outer diameter of 0.562", an inner diameter of 0.502", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.9 lbs/in.
The L-19CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-19 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The L-19 design is manufactured with a free length of 1", with an outer diameter of 0.562", an inner diameter of 0.502", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.9 lbs/in.
The L-19CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-19 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
