KK-99CS - 0.81" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

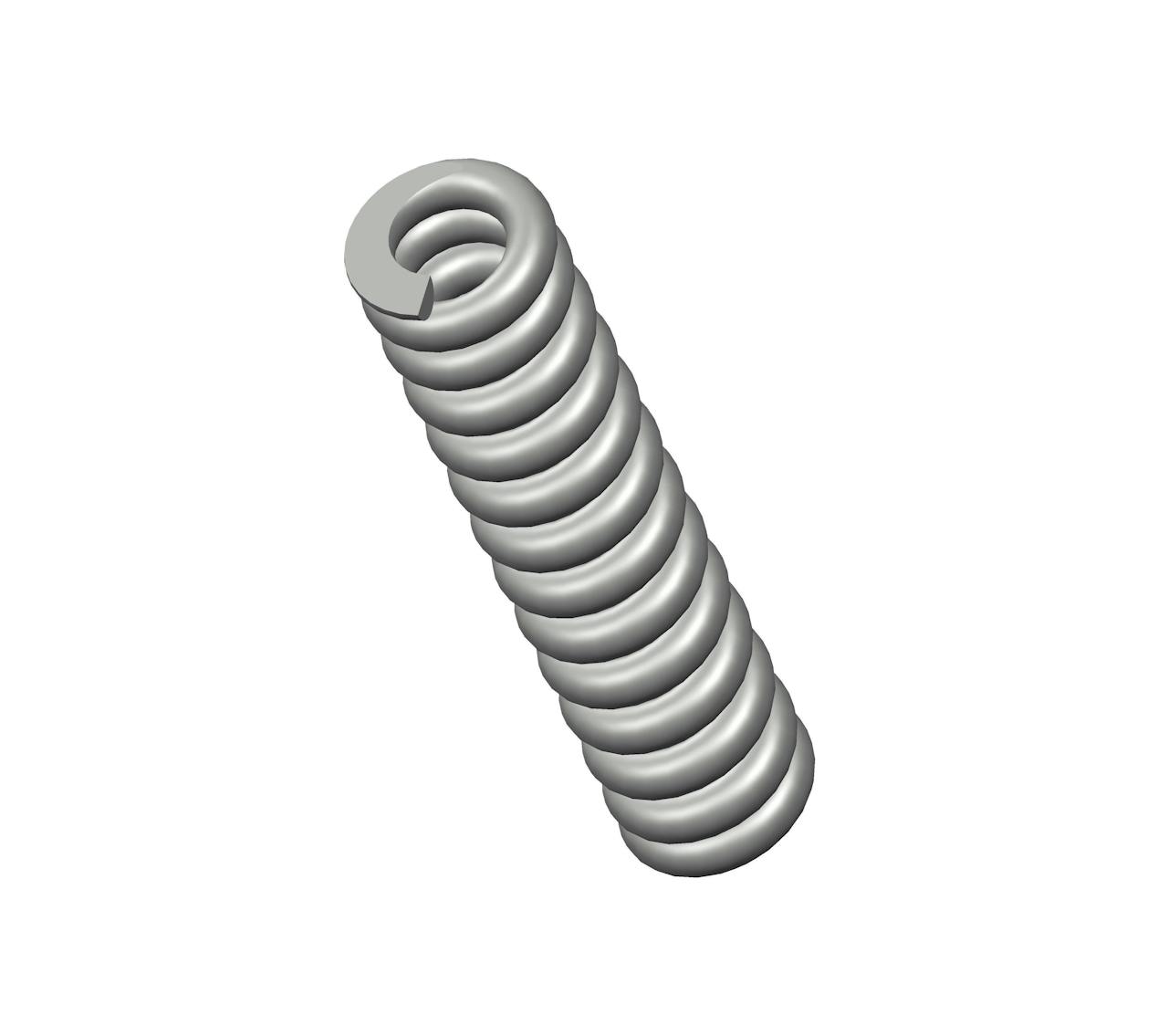

Compression spring manufactured from spring steel with 13.5 coils and closed & ground ends. This spring features an O.D. of 0.188", and an I.D. of 0.098".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | KK-99 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.81 in |
| Inside Diameter | 0.098 in |
| Material | Spring Steel |
| Outside Diameter | 0.188 in |
| Part Type | Standard |
| Rate | 179 lbs/in |
| SKU | KK-99CS |
| Solid Length | 0.61 in |
| Suggested Max Deflection | 0.09 in |
| Suggested Max Load | 17 lbf |
| Total Coils | 13.5 |
| Wire Diameter | 0.045 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | KK-99 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 20.57 mm |
| Inside Diameter | 2.49 mm |
| Material | Spring Steel |
| Outside Diameter | 4.78 mm |
| Part Type | Standard |
| Rate | 31.34 N/mm |
| SKU | KK-99CS |
| Solid Length | 15.49 mm |
| Suggested Max Deflection | 2.29 mm |
| Suggested Max Load | 75.62 N |
| Total Coils | 13.5 |
| Wire Diameter | 1.14 mm |
The compression spring KK-99CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the KK-99 compression spring design exhibits exceptional tensile strength and resilience.
The KK-99 design is manufactured with a free length of 0.81", with an outer diameter of 0.188", an inner diameter of 0.098", and a total of 13.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 179 lbs/in.
The KK-99CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring KK-99 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The KK-99 design is manufactured with a free length of 0.81", with an outer diameter of 0.188", an inner diameter of 0.098", and a total of 13.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 179 lbs/in.
The KK-99CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring KK-99 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
