KK-91CS - 1.44" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

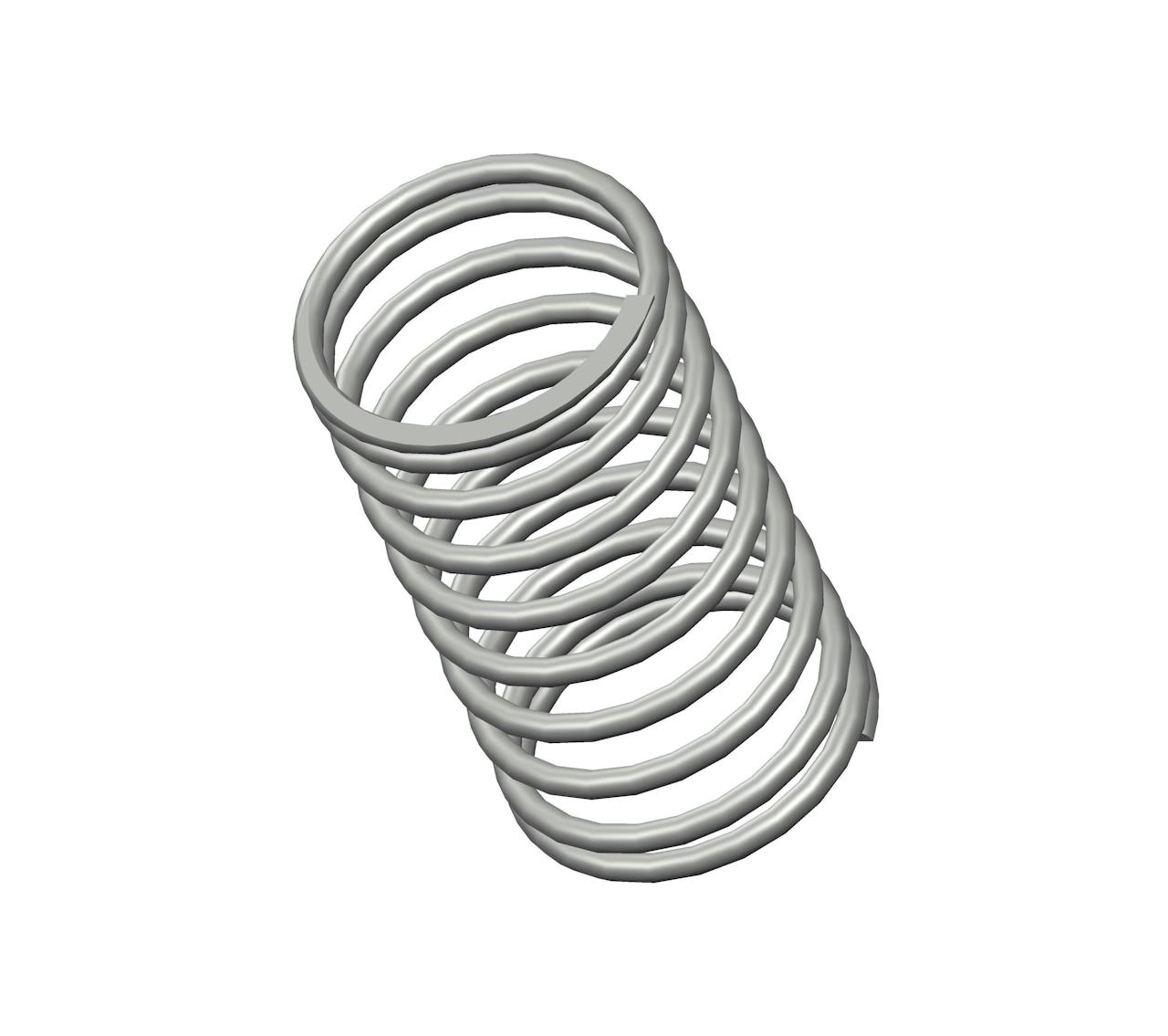

Compression spring manufactured from spring steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.781", and an I.D. of 0.661".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | KK-91 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 1.44 in |
| Inside Diameter | 0.661 in |
| Material | Spring Steel |
| Outside Diameter | 0.781 in |
| Part Type | Standard |
| Rate | 6.2 lbs/in |
| SKU | KK-91CS |
| Solid Length | 0.6 in |
| Suggested Max Deflection | 0.84 in |
| Suggested Max Load | 5.2 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.06 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | KK-91 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 36.58 mm |
| Inside Diameter | 16.79 mm |
| Material | Spring Steel |
| Outside Diameter | 19.84 mm |
| Part Type | Standard |
| Rate | 1.09 N/mm |
| SKU | KK-91CS |
| Solid Length | 15.24 mm |
| Suggested Max Deflection | 21.34 mm |
| Suggested Max Load | 23.13 N |
| Total Coils | 10 |
| Wire Diameter | 1.52 mm |
The KK-91 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The KK-91CS compression spring is designed with a free length of 1.38" total of 27 coils, and a rate of 4.9 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The KK-91 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The KK-91CS compression spring is designed with a free length of 1.38" total of 27 coils, and a rate of 4.9 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The KK-91 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
