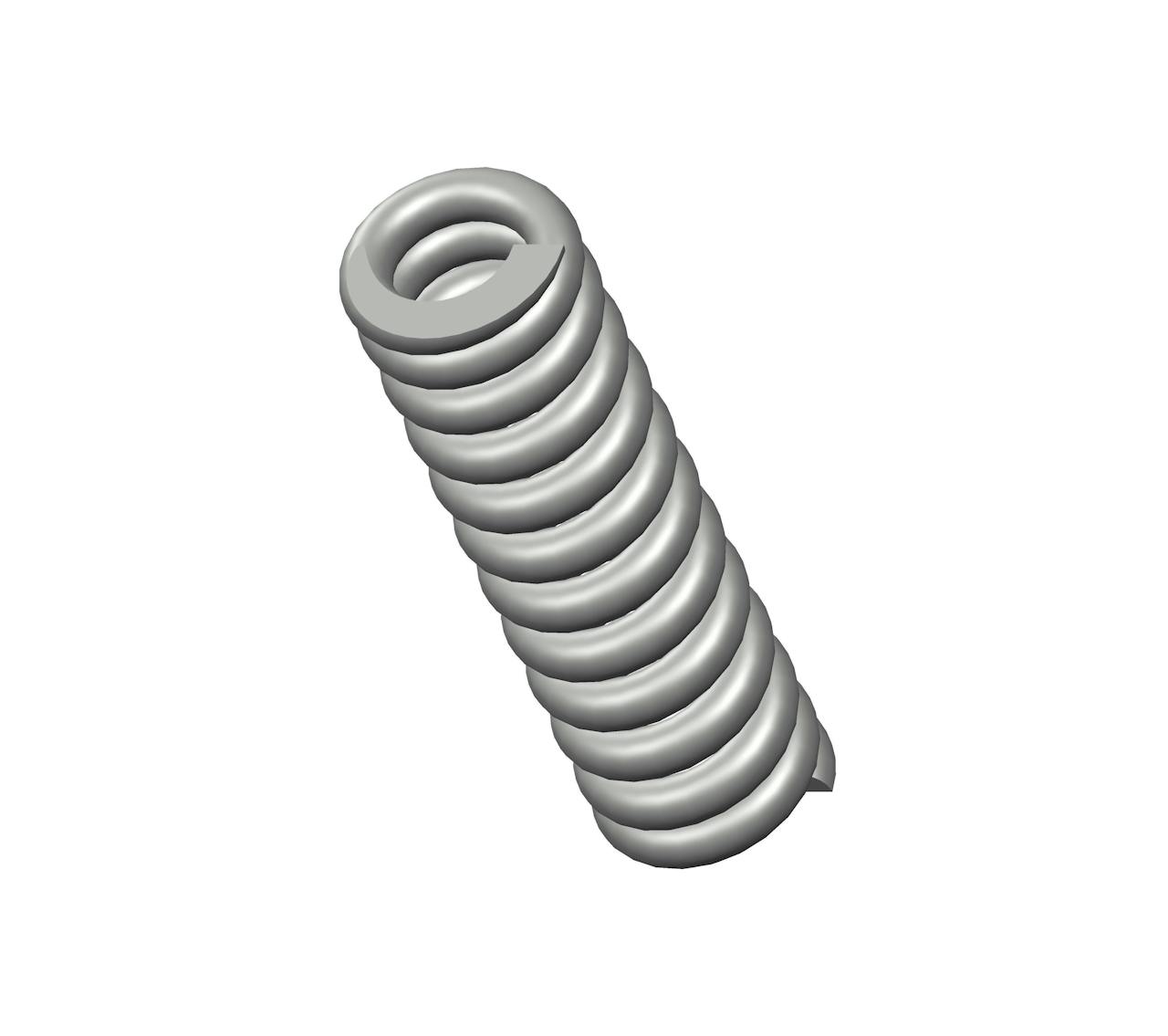

KK-88CS - 1" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 12 coils and closed & ground ends. This spring features an O.D. of 0.281", and an I.D. of 0.156".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | KK-88 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1 in |
| Inside Diameter | 0.156 in |
| Material | Spring Steel |
| Outside Diameter | 0.281 in |
| Part Type | Standard |
| Rate | 202 lbs/in |
| SKU | KK-88CS |
| Solid Length | 0.74 in |
| Suggested Max Deflection | 0.14 in |
| Suggested Max Load | 28 lbf |
| Total Coils | 12 |
| Wire Diameter | 0.0625 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | KK-88 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 25.4 mm |
| Inside Diameter | 3.96 mm |
| Material | Spring Steel |
| Outside Diameter | 7.14 mm |
| Part Type | Standard |
| Rate | 35.37 N/mm |
| SKU | KK-88CS |
| Solid Length | 18.8 mm |
| Suggested Max Deflection | 3.56 mm |
| Suggested Max Load | 124.54 N |
| Total Coils | 12 |
| Wire Diameter | 1.59 mm |
The compression spring KK-88CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the KK-88 compression spring design exhibits exceptional tensile strength and resilience.
The KK-88 design is manufactured with a free length of 1", with an outer diameter of 0.281", an inner diameter of 0.156", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 202 lbs/in.
The KK-88CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring KK-88 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The KK-88 design is manufactured with a free length of 1", with an outer diameter of 0.281", an inner diameter of 0.156", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 202 lbs/in.
The KK-88CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring KK-88 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
