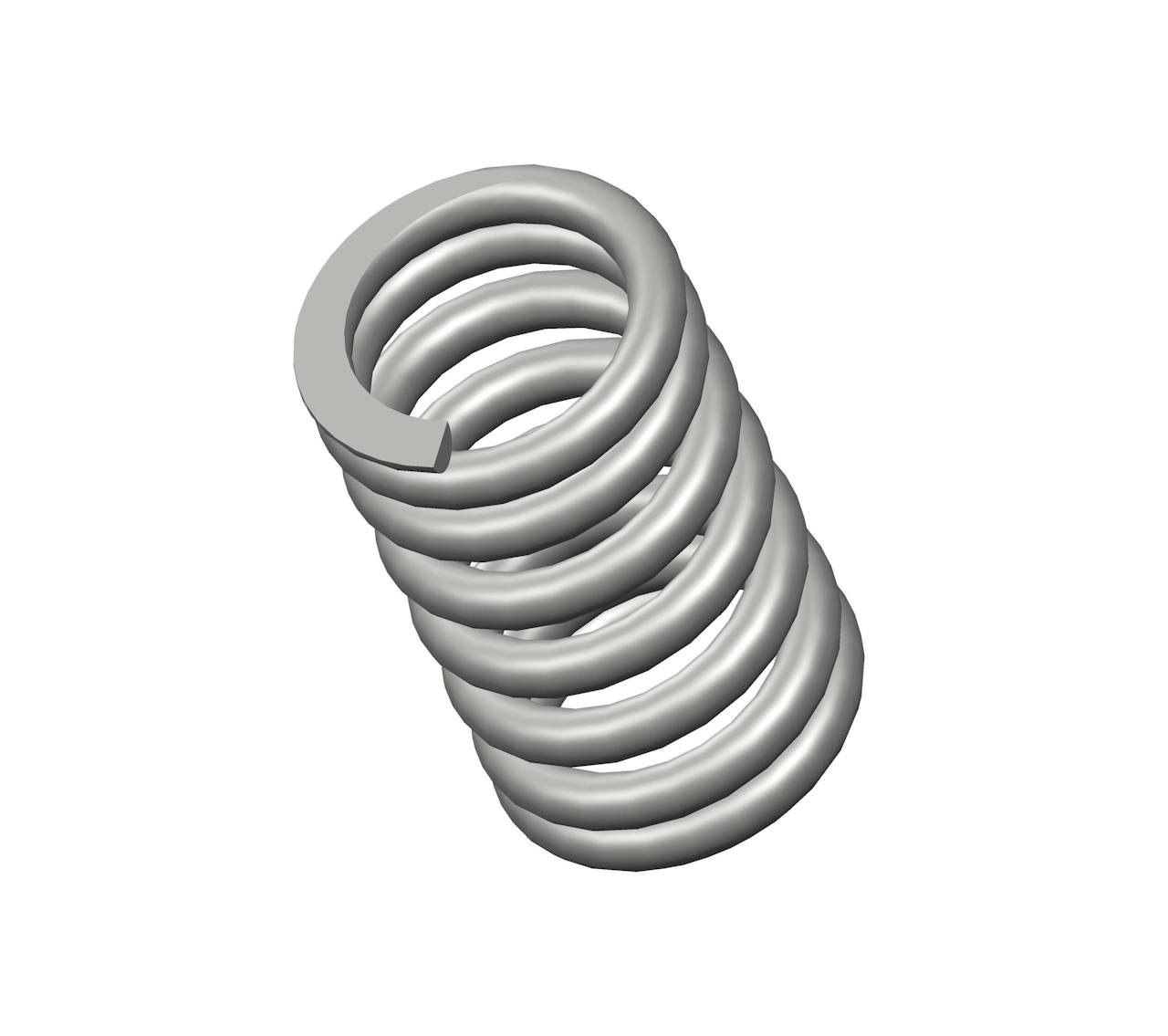

KK-72CS - 1.25" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 7.5 coils and closed & ground ends. This spring features an O.D. of 0.75", and an I.D. of 0.53".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | KK-72 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.25 in |
| Inside Diameter | 0.53 in |
| Material | Spring Steel |
| Outside Diameter | 0.75 in |
| Part Type | Standard |
| Rate | 146 lbs/in |
| SKU | KK-72CS |
| Solid Length | 0.83 in |
| Suggested Max Deflection | 0.37 in |
| Suggested Max Load | 55 lbf |
| Total Coils | 7.5 |
| Wire Diameter | 0.11 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | KK-72 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 31.75 mm |
| Inside Diameter | 13.46 mm |
| Material | Spring Steel |
| Outside Diameter | 19.05 mm |
| Part Type | Standard |
| Rate | 25.56 N/mm |
| SKU | KK-72CS |
| Solid Length | 21.08 mm |
| Suggested Max Deflection | 9.4 mm |
| Suggested Max Load | 244.64 N |
| Total Coils | 7.5 |
| Wire Diameter | 2.79 mm |
The KK-72 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The KK-72CS compression spring is designed with a free length of 1.75" total of 4 coils, and a rate of 29 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The KK-72 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The KK-72CS compression spring is designed with a free length of 1.75" total of 4 coils, and a rate of 29 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The KK-72 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
