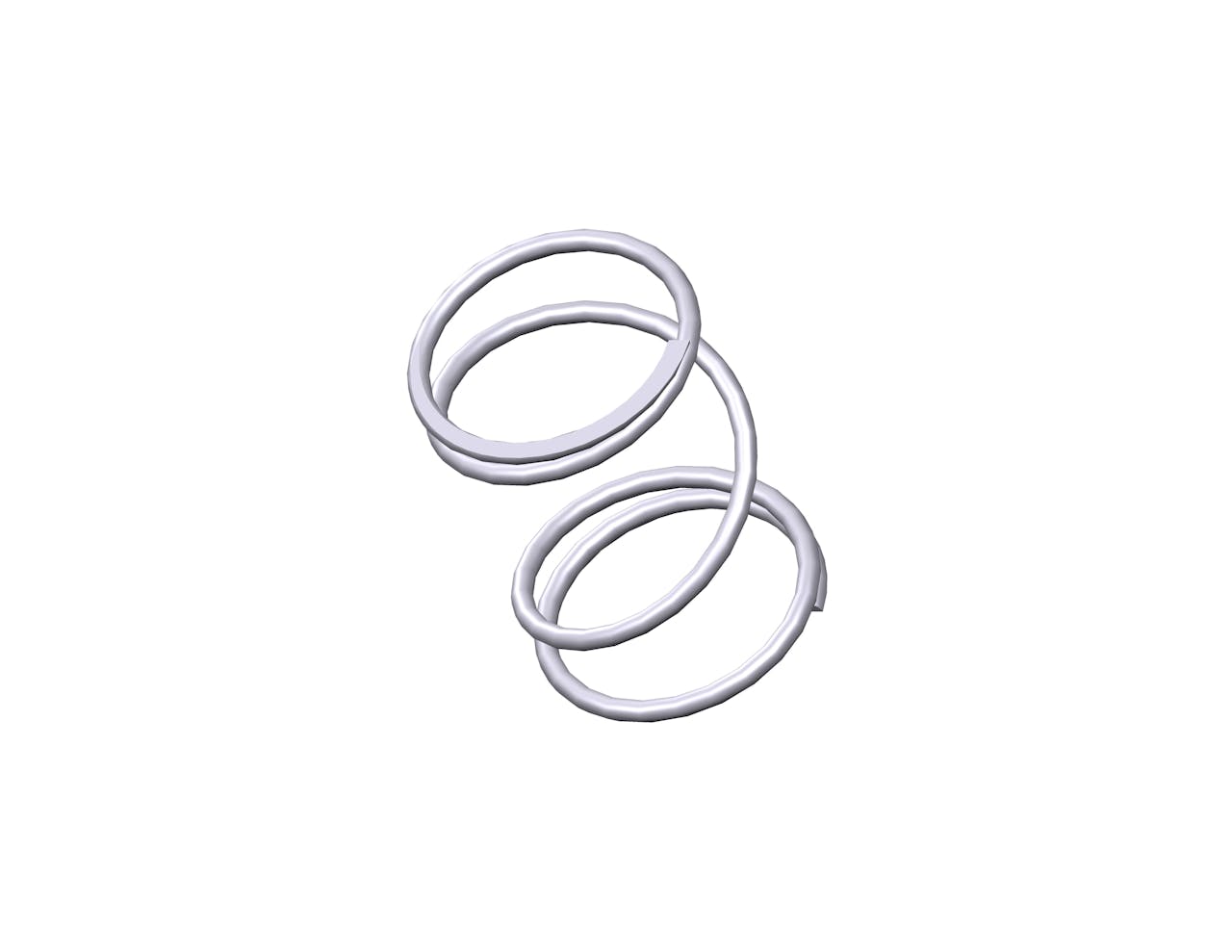

KK-71CS - 1.75" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 4 coils and closed & ground ends. This spring features an O.D. of 1.219", and an I.D. of 1.039".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | KK-71 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.75 in |
| Inside Diameter | 1.039 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.219 in |
| Part Type | Standard |
| Rate | 29 lbs/in |
| SKU | KK-71CS |
| Solid Length | 0.36 in |
| Suggested Max Deflection | 0.63 in |
| Suggested Max Load | 18 lbf |
| Total Coils | 4 |
| Wire Diameter | 0.09 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | KK-71 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 44.45 mm |
| Inside Diameter | 26.39 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 30.96 mm |
| Part Type | Standard |
| Rate | 5.08 N/mm |
| SKU | KK-71CS |
| Solid Length | 9.14 mm |
| Suggested Max Deflection | 16 mm |
| Suggested Max Load | 80.06 N |
| Total Coils | 4 |
| Wire Diameter | 2.29 mm |
The compression spring KK-71CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the KK-71 compression spring design exhibits exceptional tensile strength and resilience.
The KK-71 design is manufactured with a free length of 1.75", with an outer diameter of 1.219", an inner diameter of 1.039", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 29 lbs/in.
The KK-71CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring KK-71 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
