K-9CS - 0.5" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

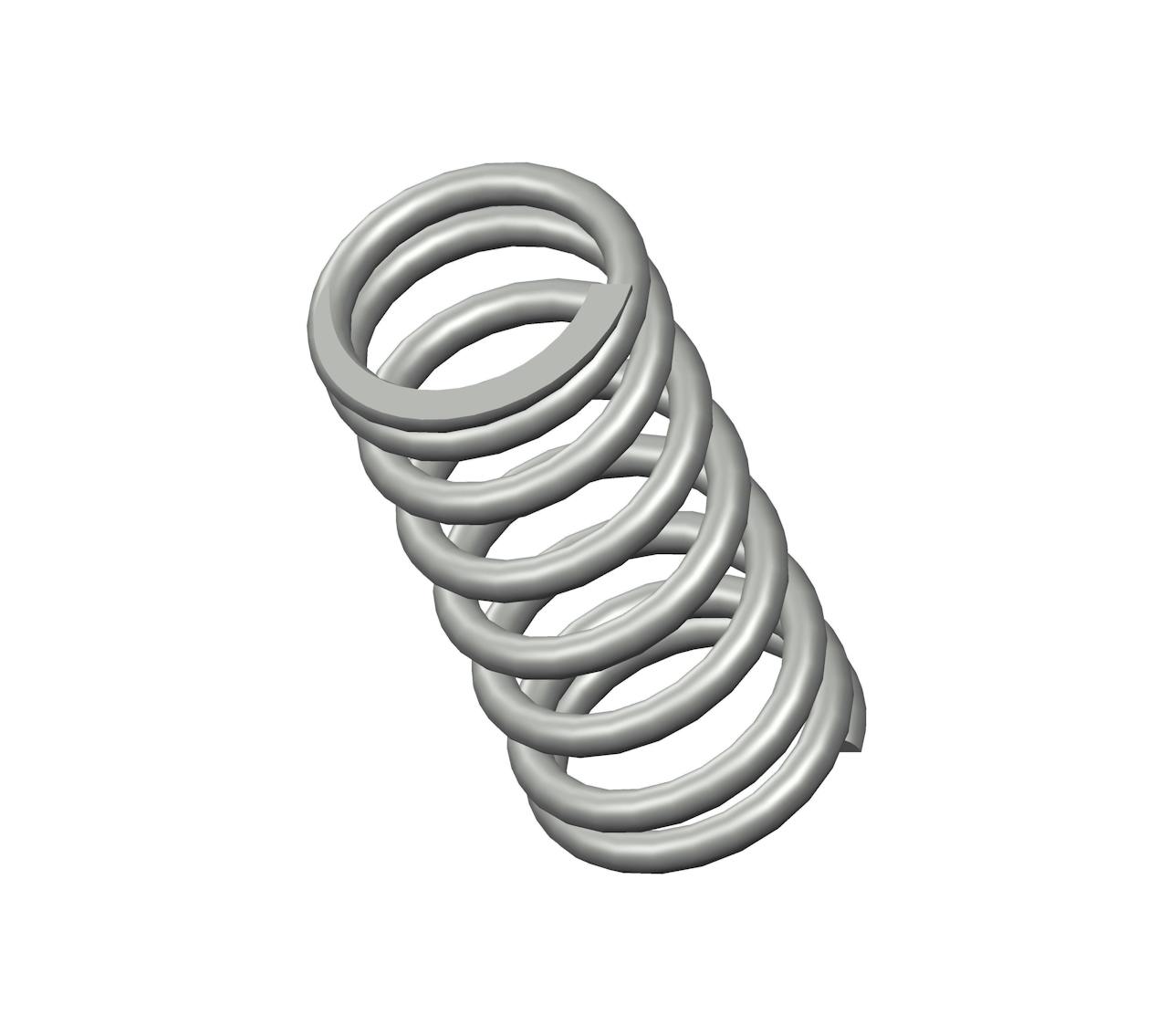

Compression spring manufactured from music wire with 8 coils and closed & ground ends. This spring features an O.D. of 0.234", and an I.D. of 0.176".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | K-9 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.5 in |
| Inside Diameter | 0.176 in |
| Material | Music Wire |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 20 lbs/in |
| SKU | K-9CS |
| Solid Length | 0.23 in |
| Suggested Max Deflection | 0.27 in |
| Suggested Max Load | 5.3 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.029 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | K-9 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 12.7 mm |
| Inside Diameter | 4.47 mm |
| Material | Music Wire |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 3.5 N/mm |
| SKU | K-9CS |
| Solid Length | 5.84 mm |
| Suggested Max Deflection | 6.86 mm |
| Suggested Max Load | 23.57 N |
| Total Coils | 8 |
| Wire Diameter | 0.74 mm |
The compression spring K-9CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the K-9 compression spring design exhibits exceptional tensile strength and resilience.
The K-9 design is manufactured with a free length of 0.5", with an outer diameter of 0.234", an inner diameter of 0.176", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 20 lbs/in.
The K-9CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring K-9 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The K-9 design is manufactured with a free length of 0.5", with an outer diameter of 0.234", an inner diameter of 0.176", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 20 lbs/in.
The K-9CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring K-9 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
