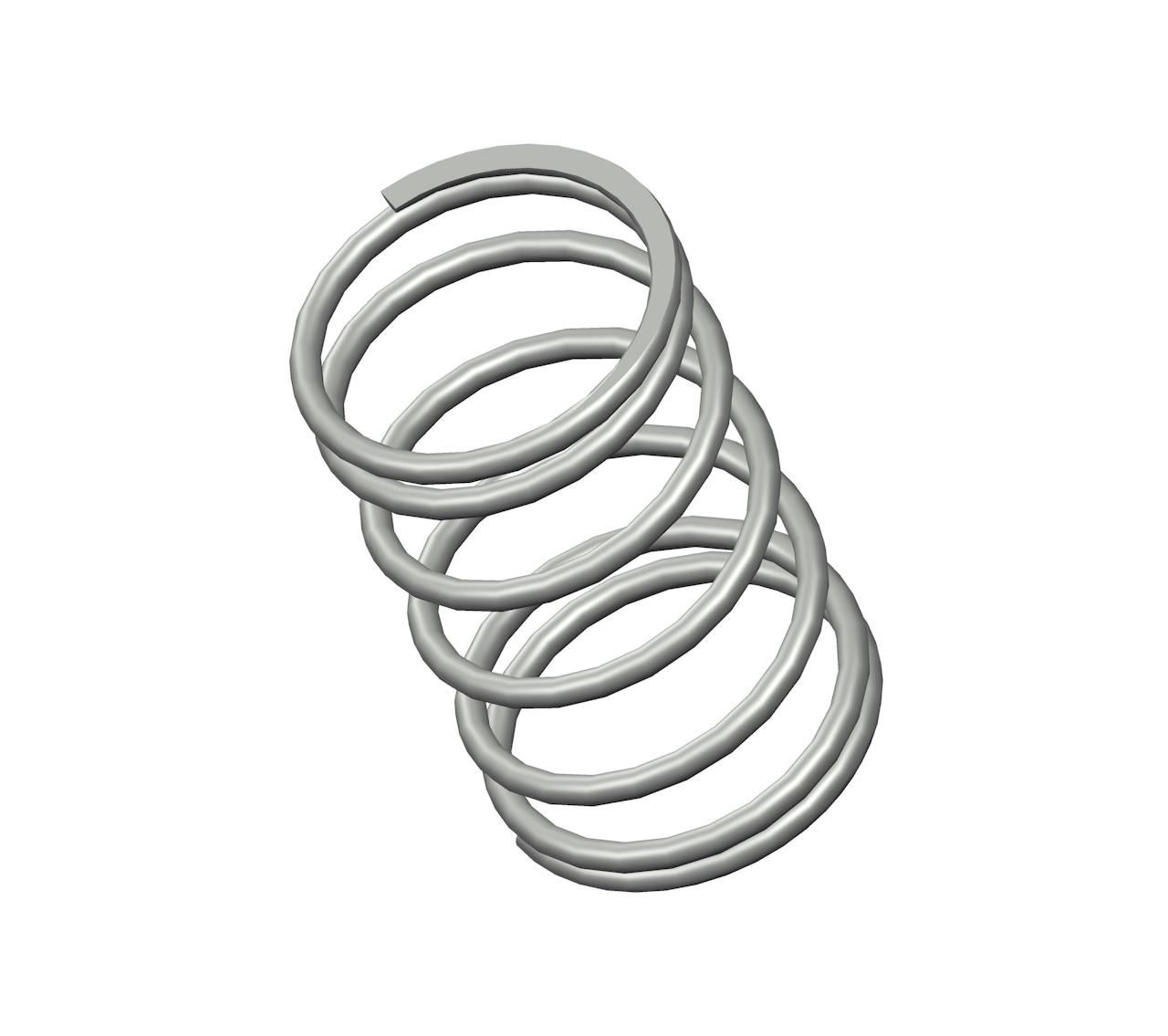

K-71CS - 0.56" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 6.75 coils and closed & ground ends. This spring features an O.D. of 0.343", and an I.D. of 0.291".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | K-71 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.56 in |
| Inside Diameter | 0.291 in |
| Material | Music Wire |
| Outside Diameter | 0.343 in |
| Part Type | Standard |
| Rate | 4.3 lbs/in |
| SKU | K-71CS |
| Solid Length | 0.18 in |
| Suggested Max Deflection | 0.39 in |
| Suggested Max Load | 1.7 lbf |
| Total Coils | 6.75 |
| Wire Diameter | 0.026 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | K-71 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 14.22 mm |
| Inside Diameter | 7.39 mm |
| Material | Music Wire |
| Outside Diameter | 8.71 mm |
| Part Type | Standard |
| Rate | 0.75 N/mm |
| SKU | K-71CS |
| Solid Length | 4.57 mm |
| Suggested Max Deflection | 9.91 mm |
| Suggested Max Load | 7.56 N |
| Total Coils | 6.75 |
| Wire Diameter | 0.66 mm |
The compression spring K-71CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the K-71 compression spring design exhibits exceptional tensile strength and resilience.
The K-71 design is manufactured with a free length of 0.56", with an outer diameter of 0.343", an inner diameter of 0.291", and a total of 6.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.3 lbs/in.
The K-71CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring K-71 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The K-71 design is manufactured with a free length of 0.56", with an outer diameter of 0.343", an inner diameter of 0.291", and a total of 6.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.3 lbs/in.
The K-71CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring K-71 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
