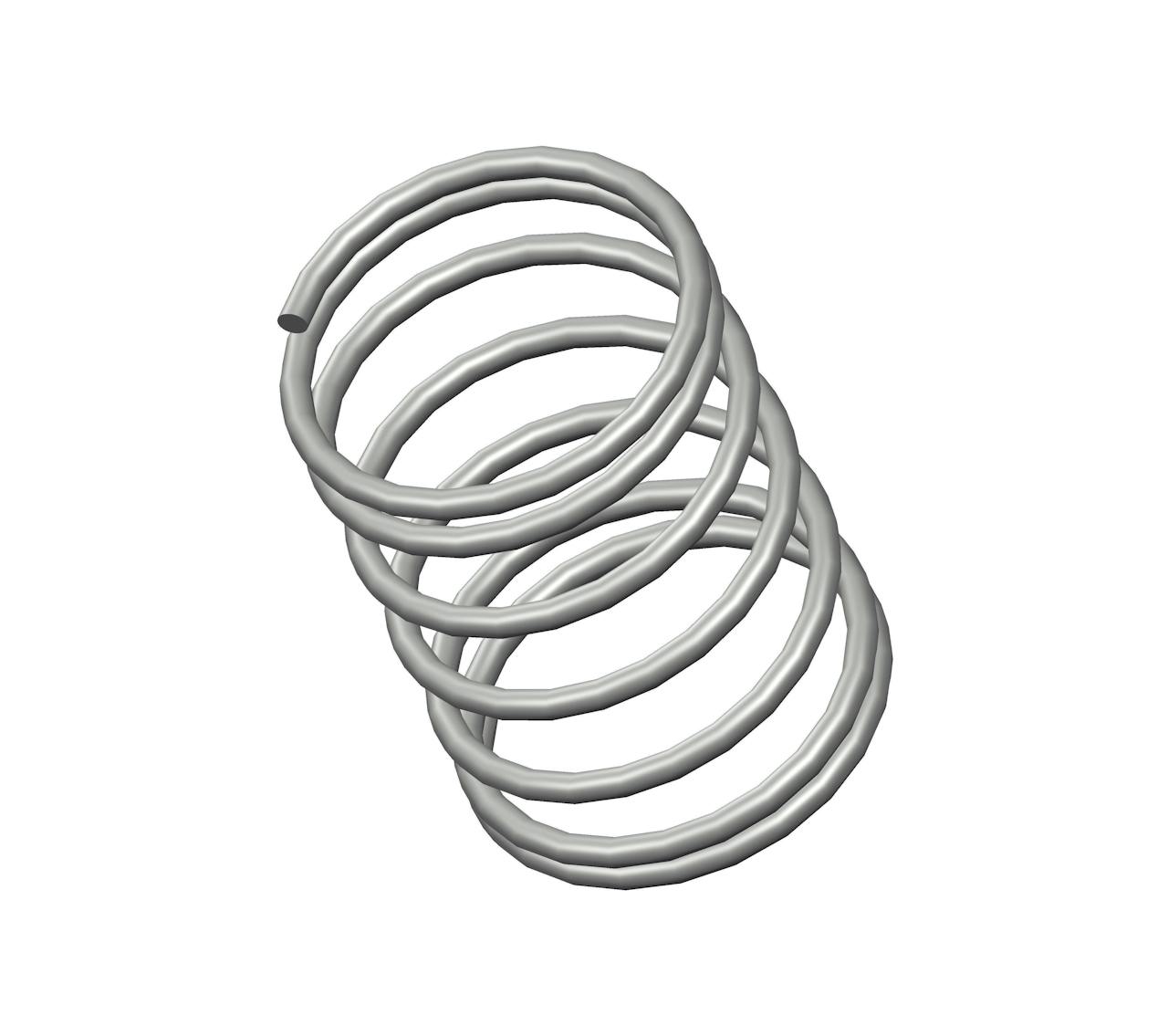

K-64CS - 0.56" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 7 coils and closed ends. This spring features an O.D. of 0.39", and an I.D. of 0.336".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | K-64 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.56 in |
| Inside Diameter | 0.336 in |
| Material | Music Wire |
| Outside Diameter | 0.39 in |
| Part Type | Standard |
| Rate | 3.2 lbs/in |
| SKU | K-64CS |
| Solid Length | 0.22 in |
| Suggested Max Deflection | 0.35 in |
| Suggested Max Load | 1.1 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.027 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | K-64 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 14.22 mm |
| Inside Diameter | 8.53 mm |
| Material | Music Wire |
| Outside Diameter | 9.91 mm |
| Part Type | Standard |
| Rate | 0.56 N/mm |
| SKU | K-64CS |
| Solid Length | 5.59 mm |
| Suggested Max Deflection | 8.89 mm |
| Suggested Max Load | 4.89 N |
| Total Coils | 7 |
| Wire Diameter | 0.69 mm |
The compression spring K-64CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the K-64 compression spring design exhibits exceptional tensile strength and resilience.
The K-64 design is manufactured with a free length of 0.56", with an outer diameter of 0.39", an inner diameter of 0.336", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.2 lbs/in.
The K-64CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring K-64 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The K-64 design is manufactured with a free length of 0.56", with an outer diameter of 0.39", an inner diameter of 0.336", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.2 lbs/in.
The K-64CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring K-64 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
