Century Spring

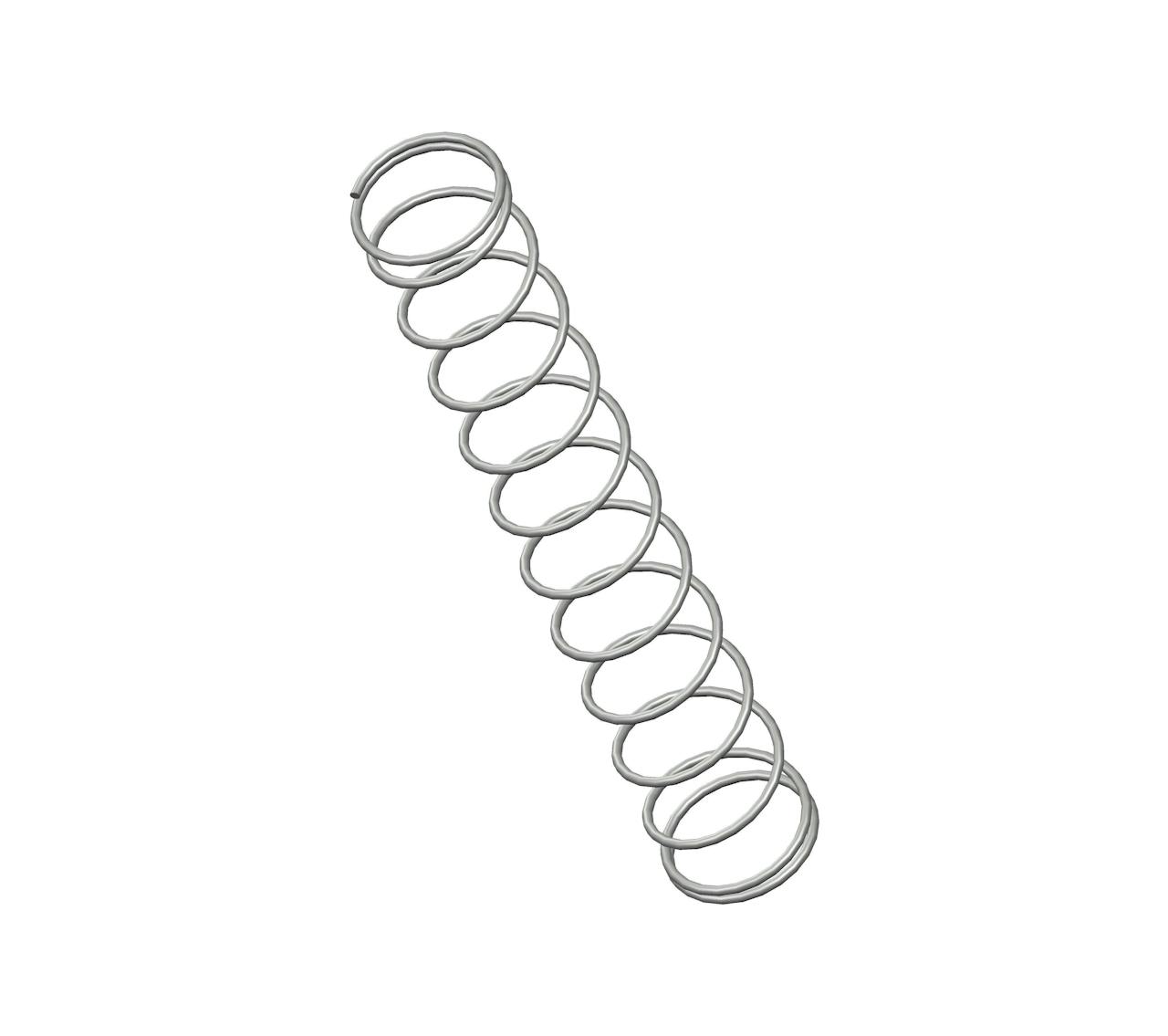

K-57CS - 2.38" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 13 coils and closed ends. This spring features an O.D. of 0.375", and an I.D. of 0.327".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name K-57
Ends Closed
Finish Gold Iridite
Free Length 2.38 in
Inside Diameter 0.327 in
Material Music Wire
Outside Diameter 0.375 in
Part Type Standard
Rate 1 lbs/in
SKU K-57CS
Solid Length 0.34 in
Suggested Max Deflection 2 in
Suggested Max Load 2 lbf
Total Coils 13
Wire Diameter 0.024 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name K-57
Ends Closed
Finish Gold Iridite
Free Length 60.45 mm
Inside Diameter 8.31 mm
Material Music Wire
Outside Diameter 9.53 mm
Part Type Standard
Rate 0.18 N/mm
SKU K-57CS
Solid Length 8.64 mm
Suggested Max Deflection 50.8 mm
Suggested Max Load 8.9 N
Total Coils 13
Wire Diameter 0.61 mm
The compression spring K-57CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the K-57 compression spring design exhibits exceptional tensile strength and resilience.

The K-57 design is manufactured with a free length of 2.38", with an outer diameter of 0.375", an inner diameter of 0.327", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 1 lbs/in.

The K-57CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring K-57 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
