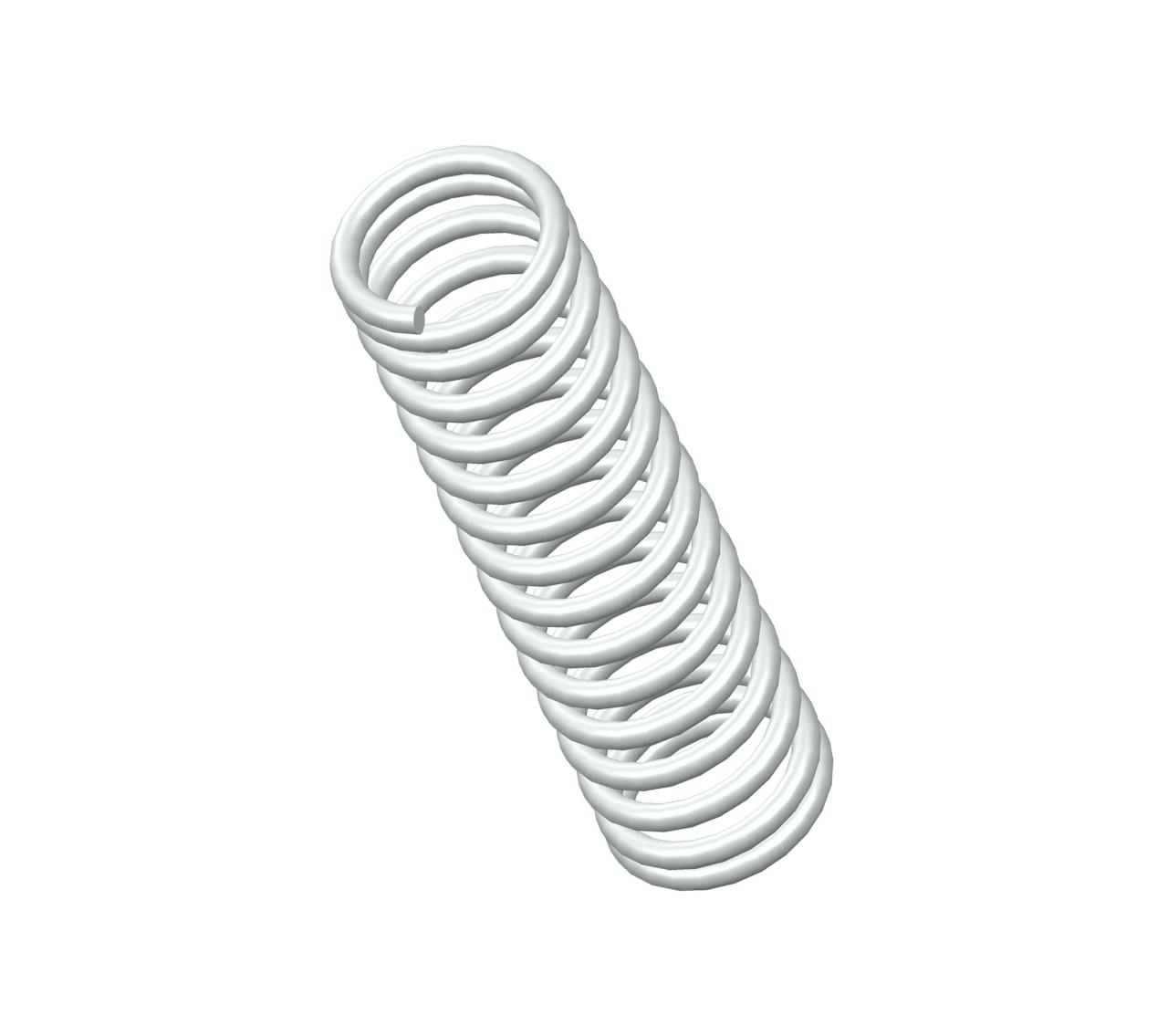

K-43CS - 1.19" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 15.5 coils and closed ends. This spring features an O.D. of 0.312", and an I.D. of 0.238".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | K-43 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.19 in |
| Inside Diameter | 0.238 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.312 in |
| Part Type | Standard |
| Rate | 8.8 lbs/in |
| SKU | K-43CS |
| Solid Length | 0.57 in |
| Suggested Max Deflection | 0.61 in |
| Suggested Max Load | 5.4 lbf |
| Total Coils | 15.5 |
| Wire Diameter | 0.037 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | K-43 |
| Ends | Closed |
| Finish | None |
| Free Length | 30.23 mm |
| Inside Diameter | 6.05 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.92 mm |
| Part Type | Standard |
| Rate | 1.54 N/mm |
| SKU | K-43CS |
| Solid Length | 14.48 mm |
| Suggested Max Deflection | 15.49 mm |
| Suggested Max Load | 24.02 N |
| Total Coils | 15.5 |
| Wire Diameter | 0.94 mm |
The compression spring K-43CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the K-43 compression spring design exhibits exceptional tensile strength and resilience.
The K-43 design is manufactured with a free length of 1.19", with an outer diameter of 0.312", an inner diameter of 0.238", and a total of 15.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.8 lbs/in.
The K-43CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring K-43 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The K-43 design is manufactured with a free length of 1.19", with an outer diameter of 0.312", an inner diameter of 0.238", and a total of 15.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.8 lbs/in.
The K-43CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring K-43 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
