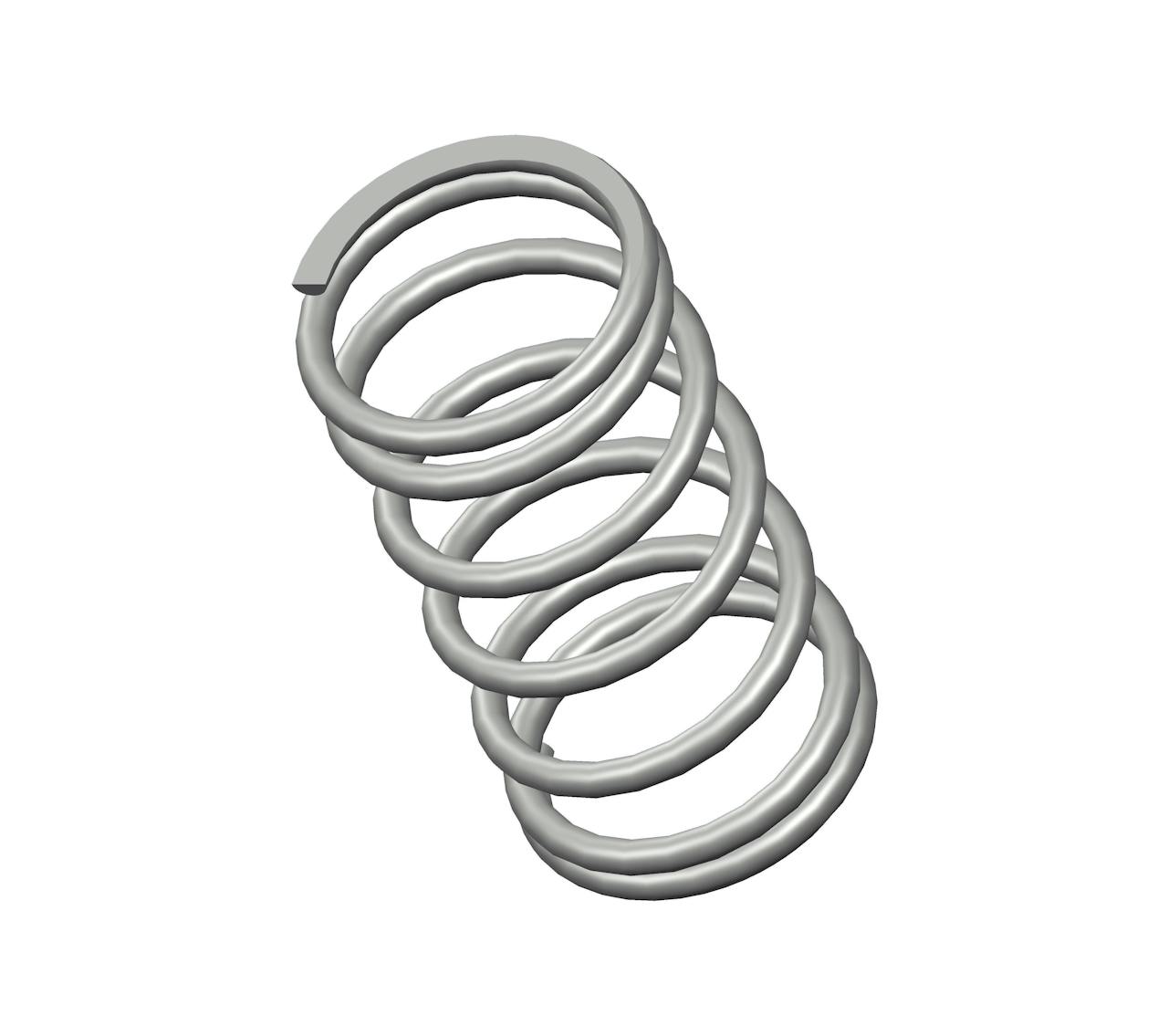

K-36CS - 0.88" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.453", and an I.D. of 0.367".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | K-36 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.88 in |
| Inside Diameter | 0.367 in |
| Material | Spring Steel |
| Outside Diameter | 0.453 in |
| Part Type | Standard |
| Rate | 14 lbs/in |
| SKU | K-36CS |
| Solid Length | 0.3 in |
| Suggested Max Deflection | 0.47 in |
| Suggested Max Load | 6.8 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.043 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | K-36 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 22.35 mm |
| Inside Diameter | 9.32 mm |
| Material | Spring Steel |
| Outside Diameter | 11.51 mm |
| Part Type | Standard |
| Rate | 2.45 N/mm |
| SKU | K-36CS |
| Solid Length | 7.62 mm |
| Suggested Max Deflection | 11.94 mm |
| Suggested Max Load | 30.25 N |
| Total Coils | 7 |
| Wire Diameter | 1.09 mm |
The K-36 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The K-36CS compression spring is designed with a free length of 2.13" total of 13 coils, and a rate of 9.1 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The K-36 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The K-36CS compression spring is designed with a free length of 2.13" total of 13 coils, and a rate of 9.1 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The K-36 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
