Century Spring

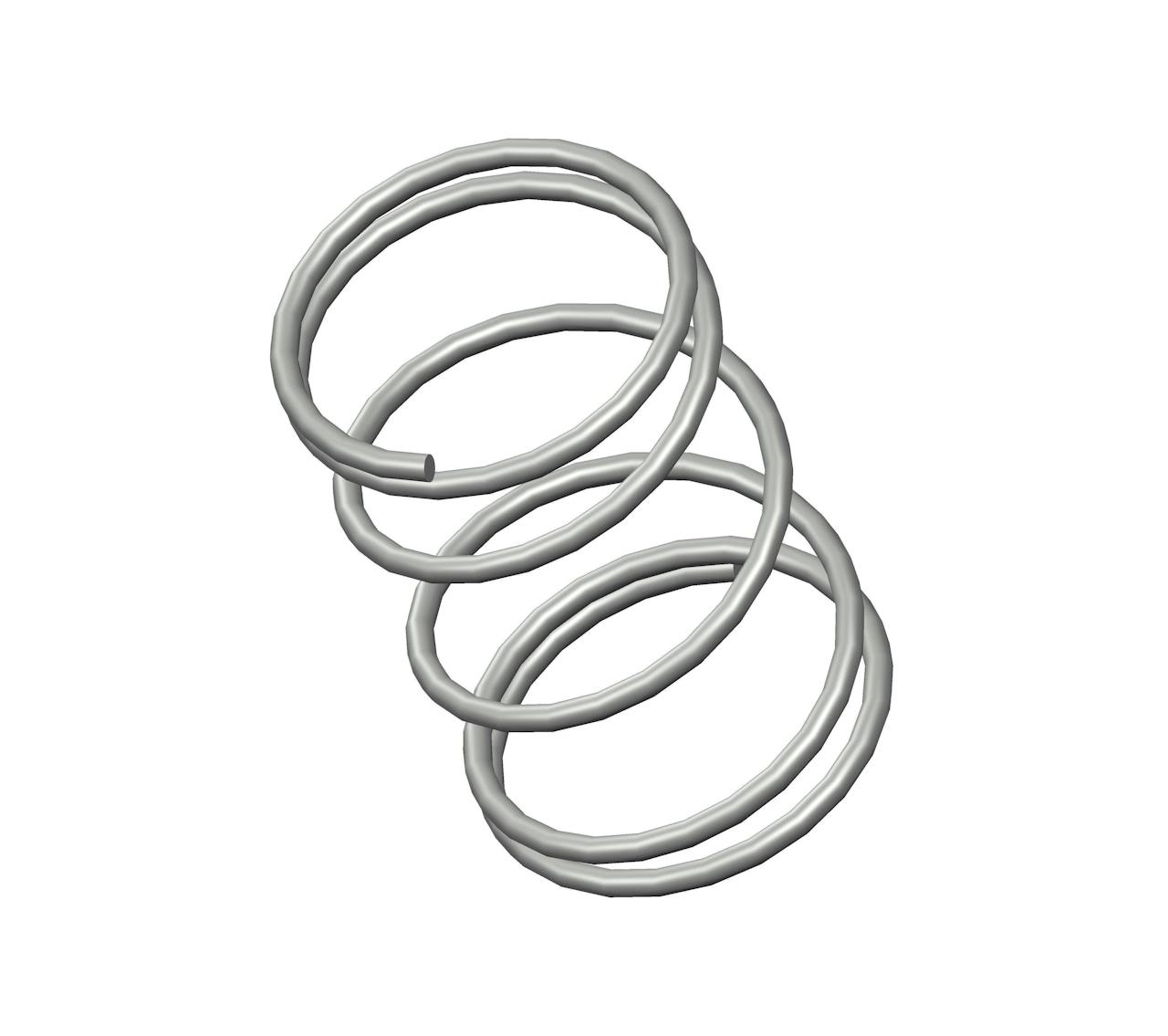

K-32CS - 0.75" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 5.5 coils and closed ends. This spring features an O.D. of 0.468", and an I.D. of 0.408".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name K-32
Ends Closed
Finish Zinc
Free Length 0.75 in
Inside Diameter 0.408 in
Material Music Wire
Outside Diameter 0.468 in
Part Type Standard
Rate 4 lbs/in
SKU K-32CS
Solid Length 0.2 in
Suggested Max Deflection 0.56 in
Suggested Max Load 2.2 lbf
Total Coils 5.5
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name K-32
Ends Closed
Finish Zinc
Free Length 19.05 mm
Inside Diameter 10.36 mm
Material Music Wire
Outside Diameter 11.89 mm
Part Type Standard
Rate 0.7 N/mm
SKU K-32CS
Solid Length 5.08 mm
Suggested Max Deflection 14.22 mm
Suggested Max Load 9.79 N
Total Coils 5.5
Wire Diameter 0.76 mm
The compression spring K-32CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the K-32 compression spring design exhibits exceptional tensile strength and resilience.

The K-32 design is manufactured with a free length of 0.75", with an outer diameter of 0.468", an inner diameter of 0.408", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 4 lbs/in.

The K-32CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring K-32 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
