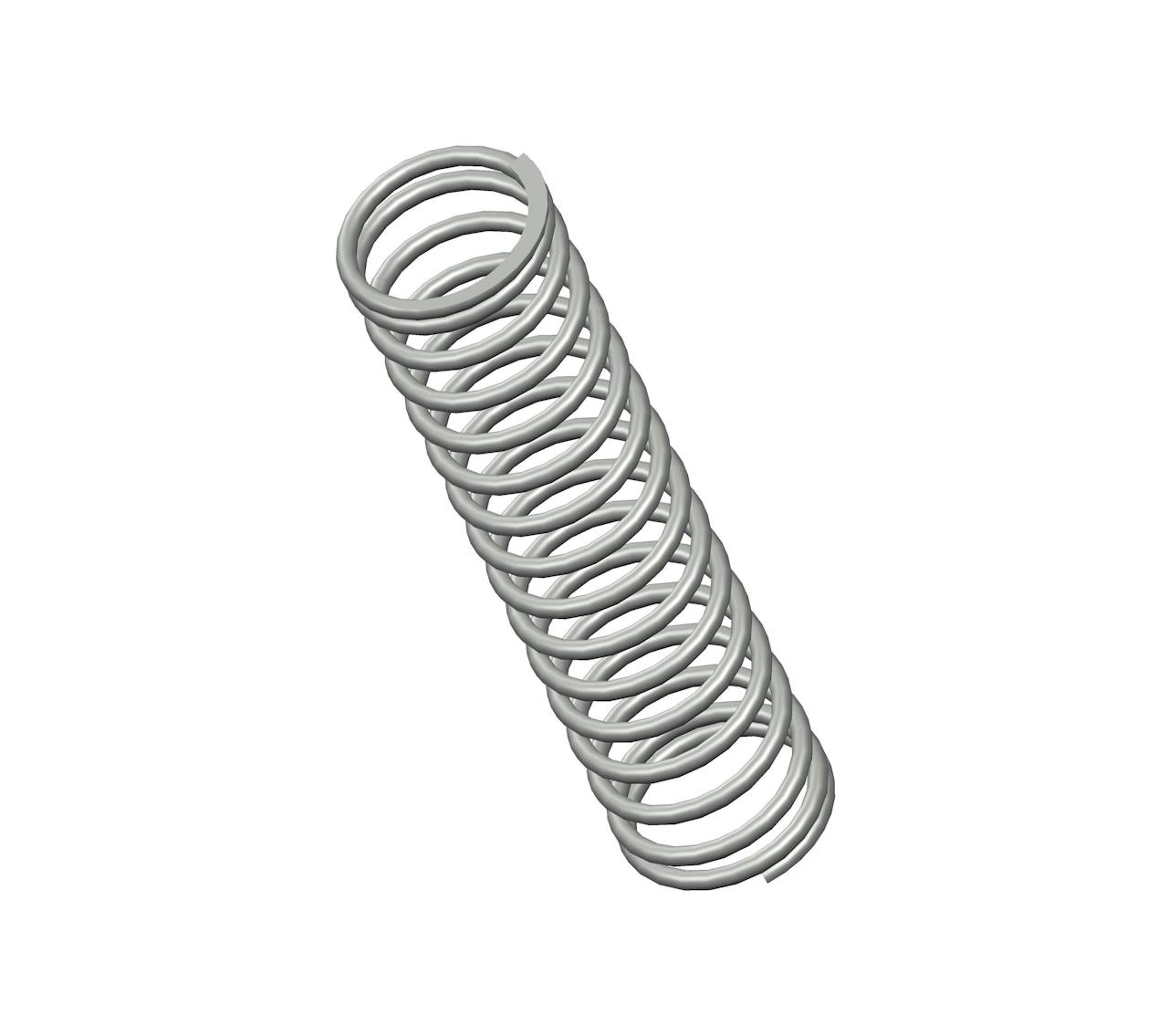

K-26CS - 1.5" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from spring steel with 16.3 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.294".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | K-26 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 1.5 in |
| Inside Diameter | 0.294 in |
| Material | Spring Steel |
| Outside Diameter | 0.36 in |
| Part Type | Standard |
| Rate | 3.5 lbs/in |
| SKU | K-26CS |
| Solid Length | 0.54 in |
| Suggested Max Deflection | 0.96 in |
| Suggested Max Load | 3.3 lbf |
| Total Coils | 16.3 |
| Wire Diameter | 0.033 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | K-26 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 38.1 mm |
| Inside Diameter | 7.47 mm |
| Material | Spring Steel |
| Outside Diameter | 9.14 mm |
| Part Type | Standard |
| Rate | 0.61 N/mm |
| SKU | K-26CS |
| Solid Length | 13.72 mm |
| Suggested Max Deflection | 24.38 mm |
| Suggested Max Load | 14.68 N |
| Total Coils | 16.3 |
| Wire Diameter | 0.84 mm |
The compression spring K-26CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the K-26 compression spring design exhibits exceptional tensile strength and resilience.
The K-26 design is manufactured with a free length of 1.5", with an outer diameter of 0.36", an inner diameter of 0.294", and a total of 16.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.5 lbs/in.
The K-26CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring K-26 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The K-26 design is manufactured with a free length of 1.5", with an outer diameter of 0.36", an inner diameter of 0.294", and a total of 16.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.5 lbs/in.
The K-26CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring K-26 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
