Century Spring

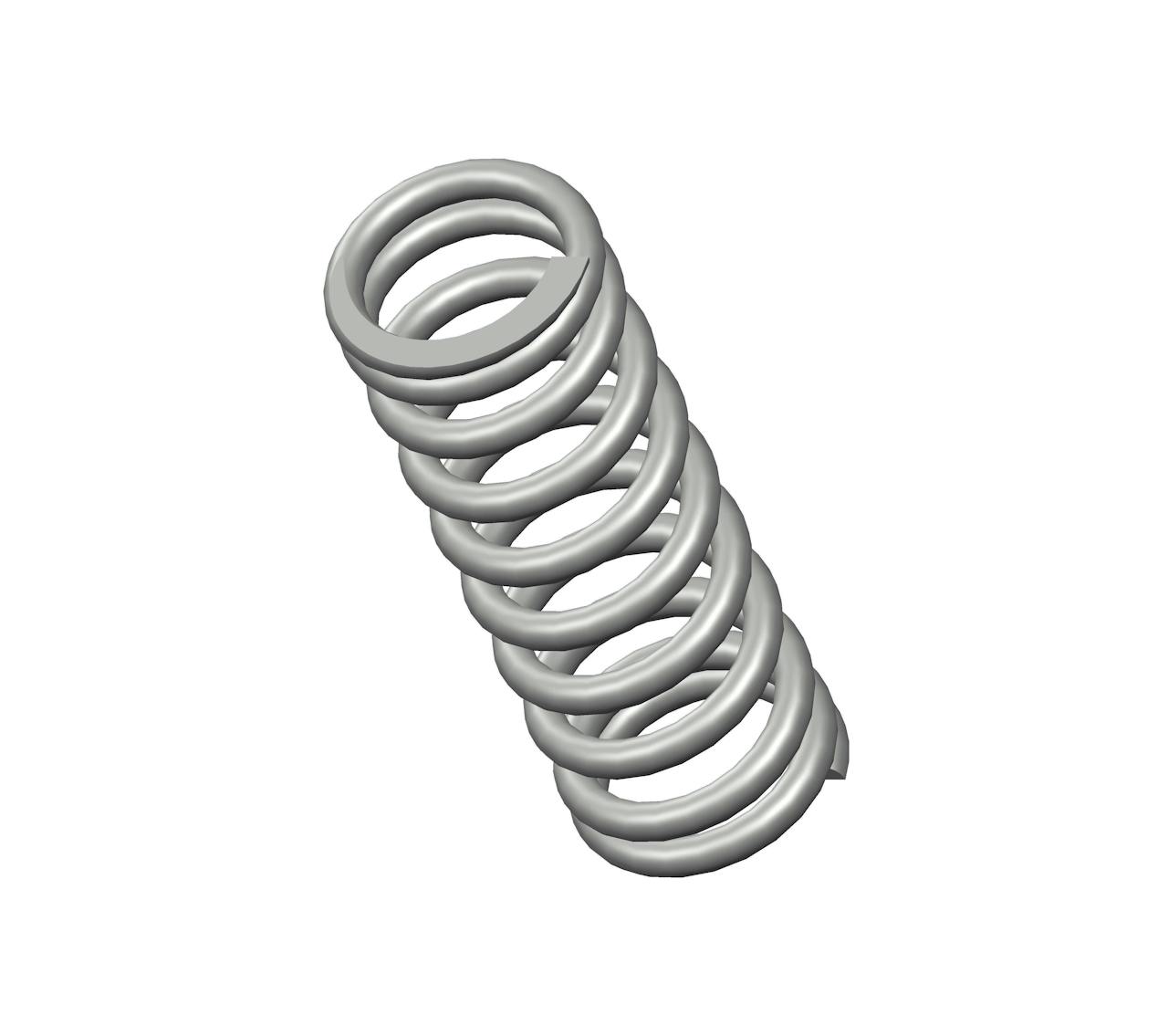

K-22CS - 1" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.343", and an I.D. of 0.247".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name K-22
Ends Closed & Ground
Finish None
Free Length 1 in
Inside Diameter 0.247 in
Material Spring Steel
Outside Diameter 0.343 in
Part Type Standard
Rate 37 lbs/in
SKU K-22CS
Solid Length 0.48 in
Suggested Max Deflection 0.33 in
Suggested Max Load 12 lbf
Total Coils 10
Wire Diameter 0.048 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name K-22
Ends Closed & Ground
Finish None
Free Length 25.4 mm
Inside Diameter 6.27 mm
Material Spring Steel
Outside Diameter 8.71 mm
Part Type Standard
Rate 6.48 N/mm
SKU K-22CS
Solid Length 12.19 mm
Suggested Max Deflection 8.38 mm
Suggested Max Load 53.38 N
Total Coils 10
Wire Diameter 1.22 mm
The compression spring K-22CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the K-22 compression spring design exhibits exceptional tensile strength and resilience.

The K-22 design is manufactured with a free length of 1", with an outer diameter of 0.343", an inner diameter of 0.247", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 37 lbs/in.

The K-22CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring K-22 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
