JJ-86CS - 0.94" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

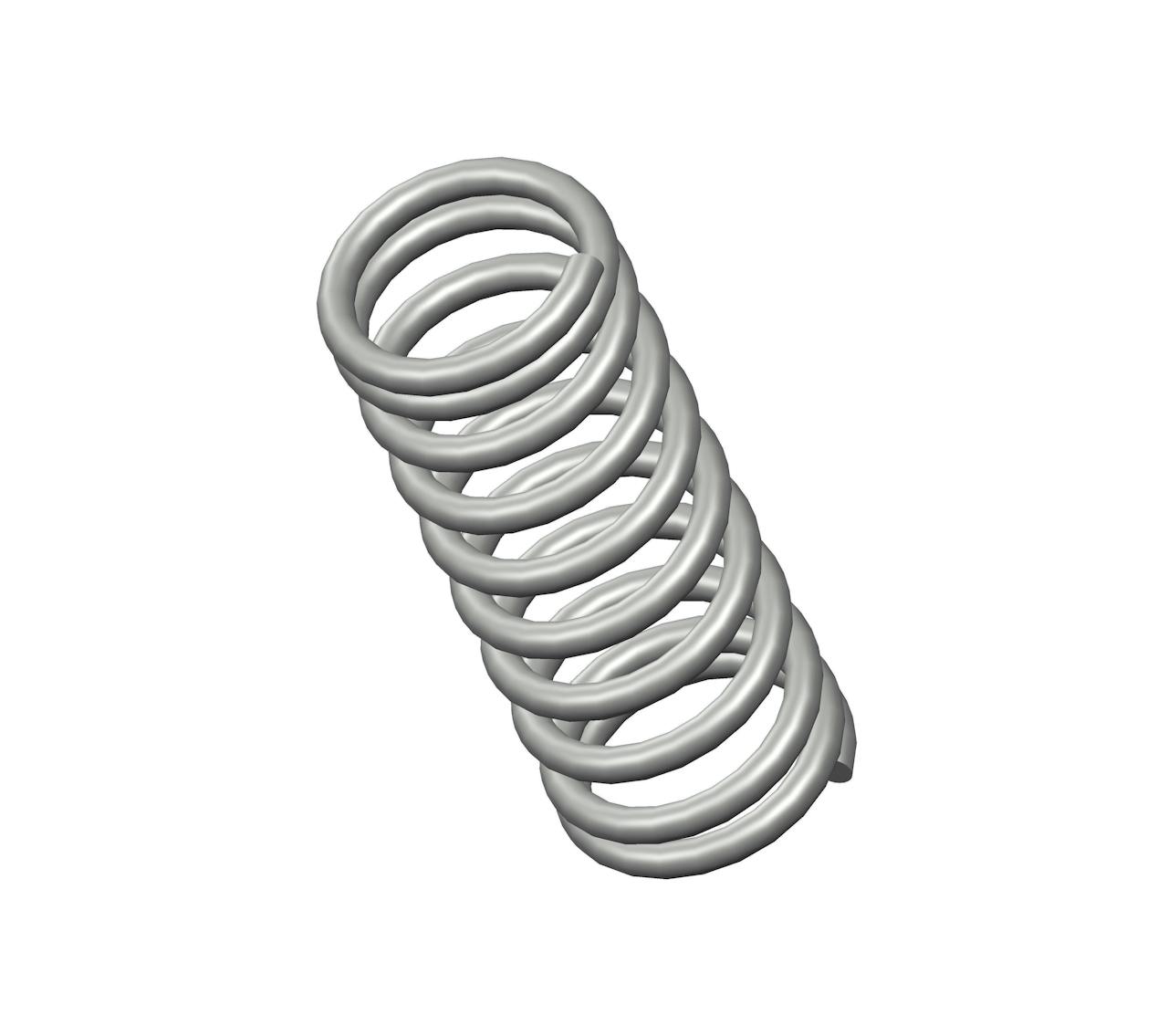

Compression spring manufactured from spring steel with 10 coils and closed ends. This spring features an O.D. of 0.343", and an I.D. of 0.259".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name JJ-86
Ends Closed
Finish Zinc
Free Length 0.94 in
Inside Diameter 0.259 in
Material Spring Steel
Outside Diameter 0.343 in
Part Type Standard
Rate 21 lbs/in
SKU JJ-86CS
Solid Length 0.46 in
Suggested Max Deflection 0.4 in
Suggested Max Load 8.2 lbf
Total Coils 10
Wire Diameter 0.042 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name JJ-86
Ends Closed
Finish Zinc
Free Length 23.88 mm
Inside Diameter 6.58 mm
Material Spring Steel
Outside Diameter 8.71 mm
Part Type Standard
Rate 3.68 N/mm
SKU JJ-86CS
Solid Length 11.68 mm
Suggested Max Deflection 10.16 mm
Suggested Max Load 36.47 N
Total Coils 10
Wire Diameter 1.07 mm
The JJ-86CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.042" diameter spring steel, the JJ-86 spring design exhibits reliable strength across its 10 active coils, withstanding repeated compression cycles with a maximum load of 8.2 lbf without succumbing to fatigue.

We manufacture the JJ-86 design to provide a compression spring that is 0.94" long at rest and provides a consistent rate of 21 lbs/in along its recommended maximum of 0.4" deflection. For best results, your application should fully accommodate the inner (0.259") and outer (0.343") diameters of this spring and be designed for its closed end configuration.
