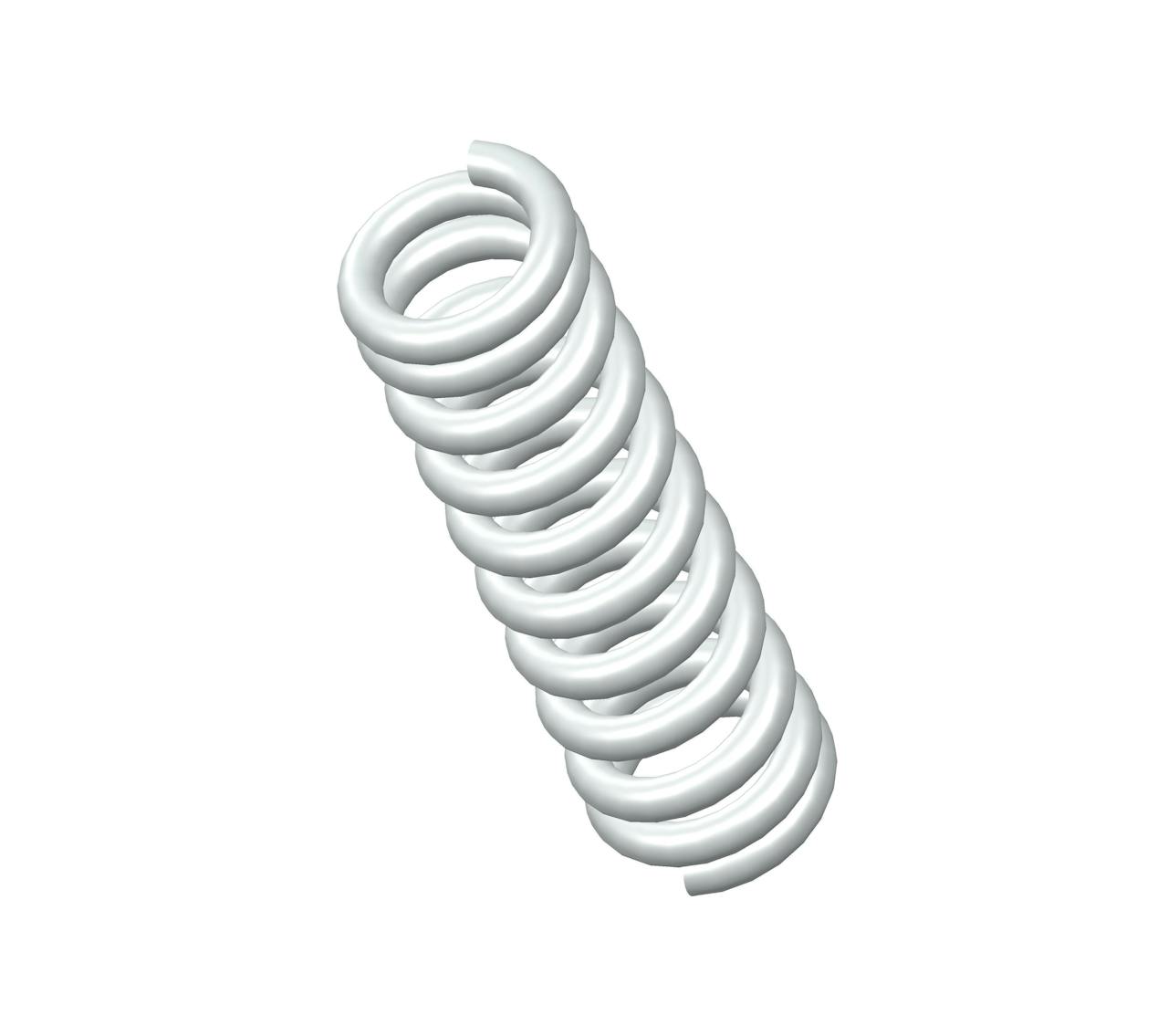

JJ-36CS - 0.84" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 10.5 coils and closed ends. This spring features an O.D. of 0.234", and an I.D. of 0.15".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | JJ-36 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.84 in |
| Inside Diameter | 0.15 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 66 lbs/in |
| SKU | JJ-36CS |
| Solid Length | 0.48 in |
| Suggested Max Deflection | 0.16 in |
| Suggested Max Load | 11 lbf |
| Total Coils | 10.5 |
| Wire Diameter | 0.042 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | JJ-36 |
| Ends | Closed |
| Finish | None |
| Free Length | 21.34 mm |
| Inside Diameter | 3.81 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 11.56 N/mm |
| SKU | JJ-36CS |
| Solid Length | 12.19 mm |
| Suggested Max Deflection | 4.06 mm |
| Suggested Max Load | 48.93 N |
| Total Coils | 10.5 |
| Wire Diameter | 1.07 mm |
The compression spring JJ-36CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the JJ-36 compression spring design exhibits exceptional tensile strength and resilience.
The JJ-36 design is manufactured with a free length of 0.84", with an outer diameter of 0.234", an inner diameter of 0.15", and a total of 10.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 66 lbs/in.
The JJ-36CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring JJ-36 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The JJ-36 design is manufactured with a free length of 0.84", with an outer diameter of 0.234", an inner diameter of 0.15", and a total of 10.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 66 lbs/in.
The JJ-36CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring JJ-36 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
