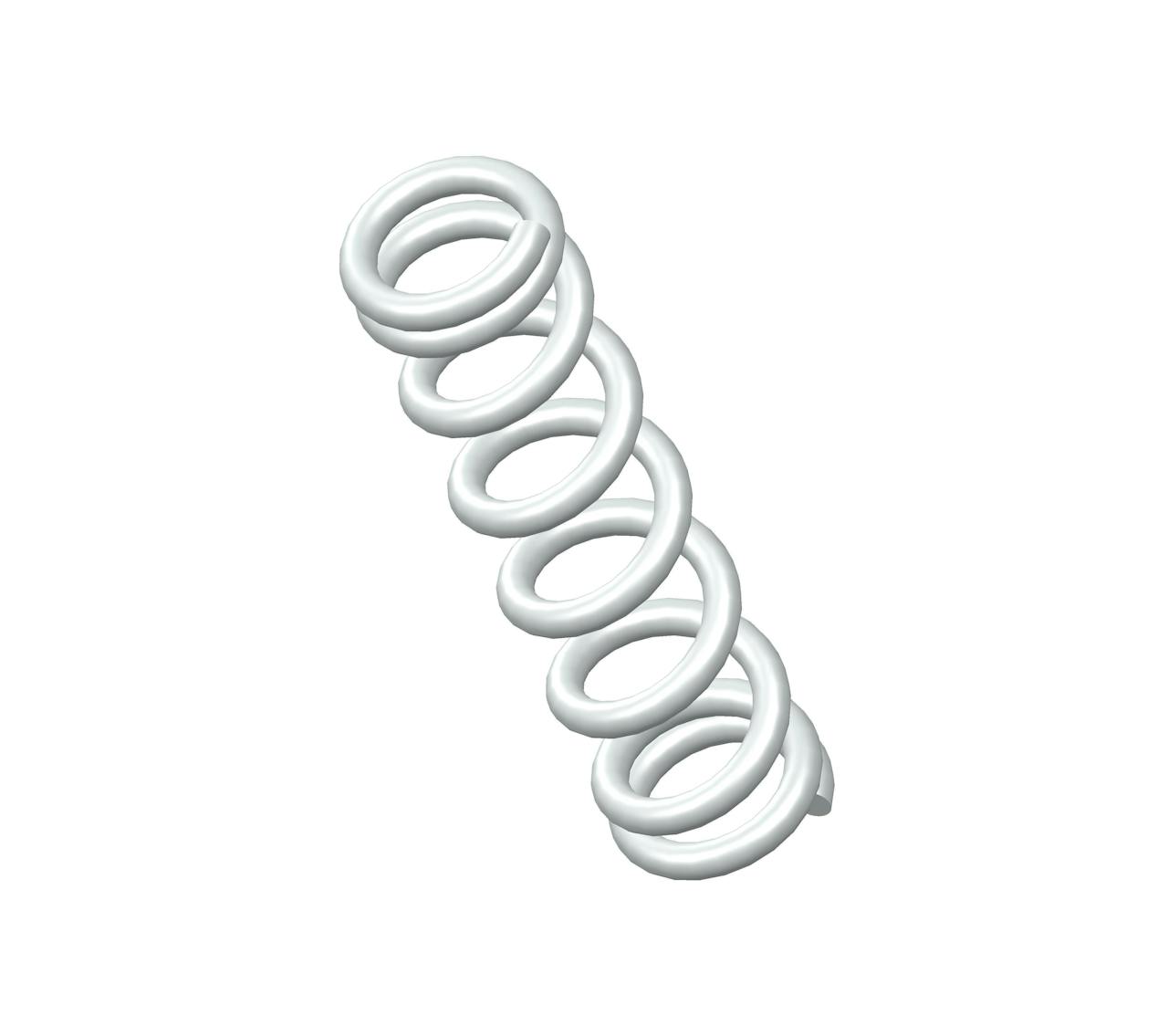

JJ-16CS - 1.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 8 coils and closed ends. This spring features an O.D. of 0.36", and an I.D. of 0.24".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | JJ-16 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.5 in |
| Inside Diameter | 0.24 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.36 in |
| Part Type | Standard |
| Rate | 103 lbs/in |
| SKU | JJ-16CS |
| Solid Length | 0.54 in |
| Suggested Max Deflection | 0.19 in |
| Suggested Max Load | 19 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.06 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | JJ-16 |
| Ends | Closed |
| Finish | None |
| Free Length | 38.1 mm |
| Inside Diameter | 6.1 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 9.14 mm |
| Part Type | Standard |
| Rate | 18.04 N/mm |
| SKU | JJ-16CS |
| Solid Length | 13.72 mm |
| Suggested Max Deflection | 4.83 mm |
| Suggested Max Load | 84.51 N |
| Total Coils | 8 |
| Wire Diameter | 1.52 mm |
The compression spring JJ-16CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the JJ-16 compression spring design exhibits exceptional tensile strength and resilience.
The JJ-16 design is manufactured with a free length of 1.5", with an outer diameter of 0.36", an inner diameter of 0.24", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 103 lbs/in.
The JJ-16CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring JJ-16 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The JJ-16 design is manufactured with a free length of 1.5", with an outer diameter of 0.36", an inner diameter of 0.24", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 103 lbs/in.
The JJ-16CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring JJ-16 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
