J-82CS - 0.31" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

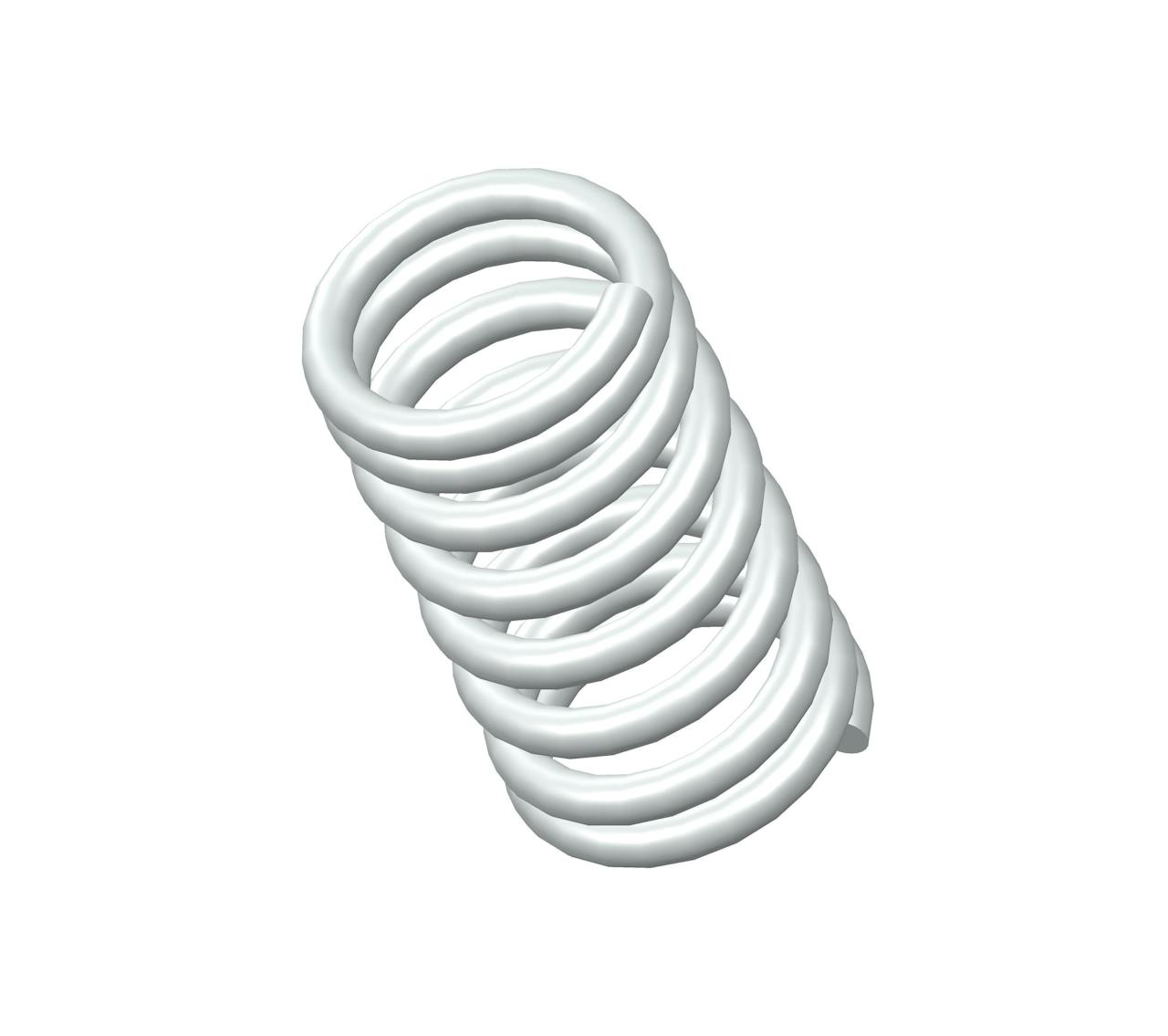

Compression spring manufactured from 302/304 stainless steel with 8 coils and closed ends. This spring features an O.D. of 0.156", and an I.D. of 0.114".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | J-82 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.31 in |
| Inside Diameter | 0.114 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.156 in |
| Part Type | Standard |
| Rate | 17 lbs/in |
| SKU | J-82CS |
| Solid Length | 0.19 in |
| Suggested Max Deflection | 0.12 in |
| Suggested Max Load | 2.1 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.021 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | J-82 |
| Ends | Closed |
| Finish | None |
| Free Length | 7.87 mm |
| Inside Diameter | 2.9 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 3.96 mm |
| Part Type | Standard |
| Rate | 2.98 N/mm |
| SKU | J-82CS |
| Solid Length | 4.83 mm |
| Suggested Max Deflection | 3.05 mm |
| Suggested Max Load | 9.34 N |
| Total Coils | 8 |
| Wire Diameter | 0.53 mm |
The compression spring J-82CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the J-82 compression spring design exhibits exceptional tensile strength and resilience.
The J-82 design is manufactured with a free length of 0.31", with an outer diameter of 0.156", an inner diameter of 0.114", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 17 lbs/in.
The J-82CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring J-82 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The J-82 design is manufactured with a free length of 0.31", with an outer diameter of 0.156", an inner diameter of 0.114", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 17 lbs/in.
The J-82CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring J-82 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
