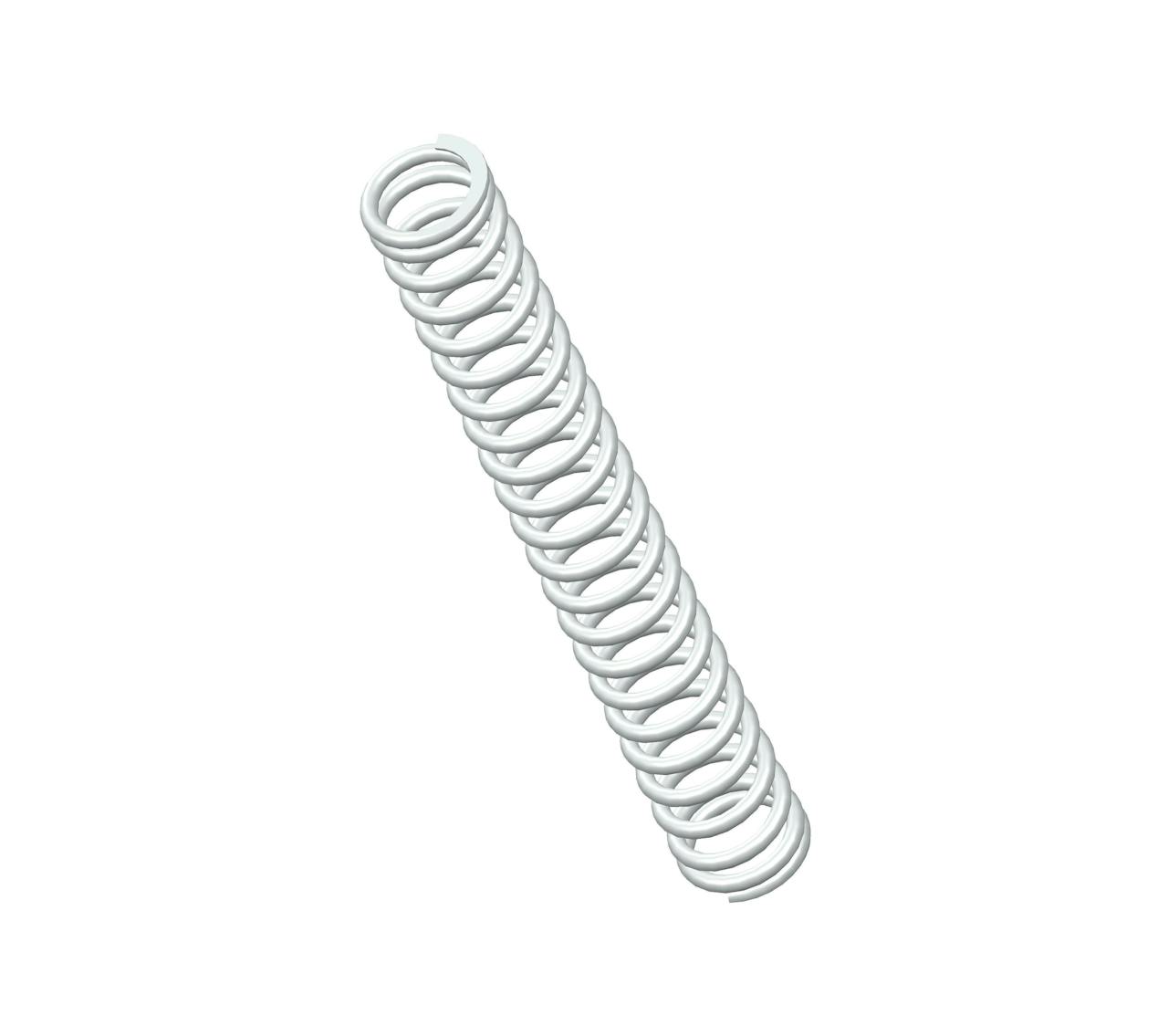

J-74CS - 1.44" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 22.5 coils and closed & ground ends. This spring features an O.D. of 0.188", and an I.D. of 0.138".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | J-74 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.44 in |
| Inside Diameter | 0.138 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.188 in |
| Part Type | Standard |
| Rate | 5.6 lbs/in |
| SKU | J-74CS |
| Solid Length | 0.56 in |
| Suggested Max Deflection | 0.54 in |
| Suggested Max Load | 3.1 lbf |
| Total Coils | 22.5 |
| Wire Diameter | 0.025 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | J-74 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 36.58 mm |
| Inside Diameter | 3.51 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 4.78 mm |
| Part Type | Standard |
| Rate | 0.98 N/mm |
| SKU | J-74CS |
| Solid Length | 14.22 mm |
| Suggested Max Deflection | 13.72 mm |
| Suggested Max Load | 13.79 N |
| Total Coils | 22.5 |
| Wire Diameter | 0.64 mm |
The J-74 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The J-74CS compression spring is designed with a free length of 0.41" total of 7.5 coils, and a rate of 114 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The J-74 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The J-74CS compression spring is designed with a free length of 0.41" total of 7.5 coils, and a rate of 114 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The J-74 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
