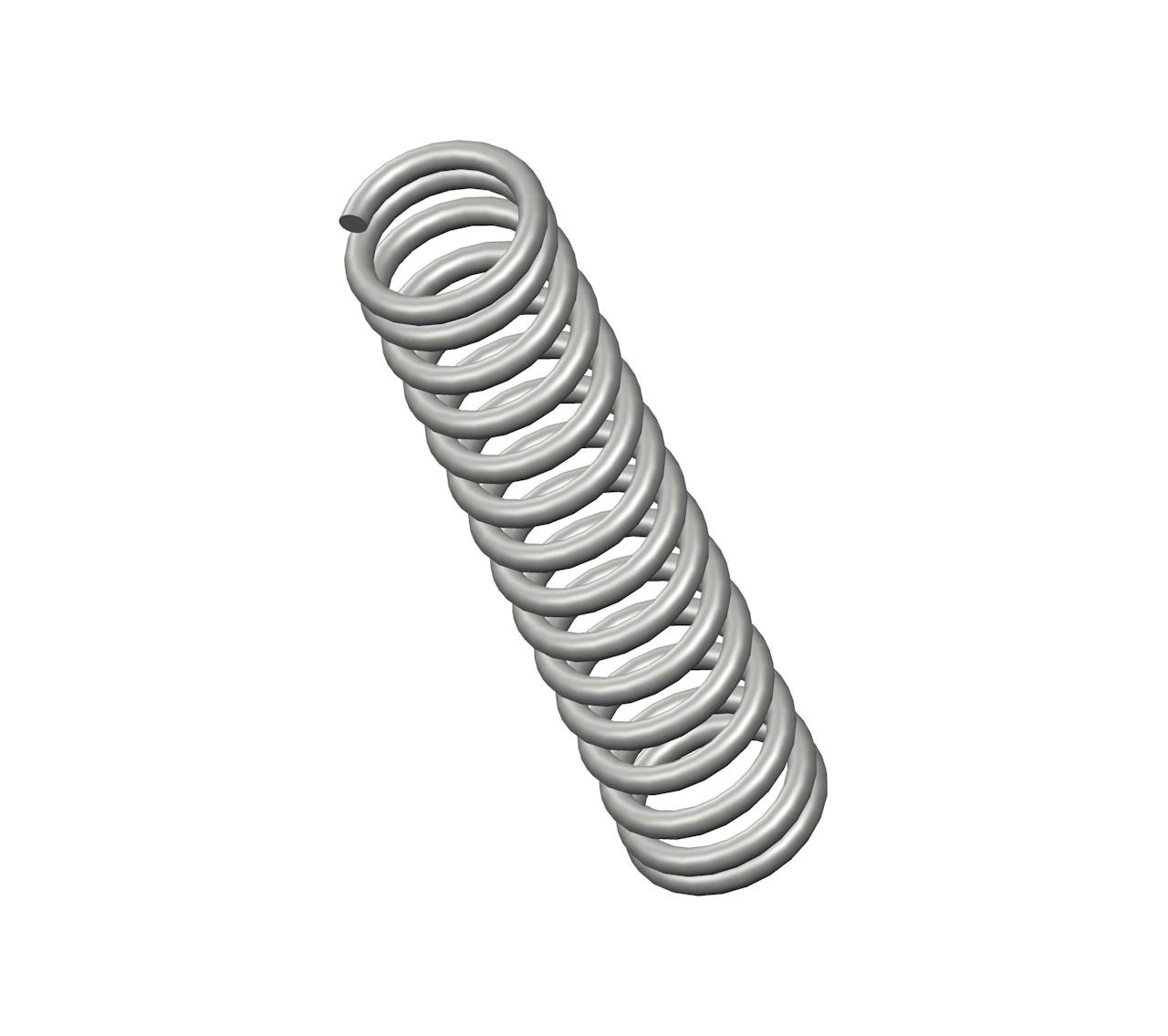

J-69CS - 0.56" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 15 coils and closed ends. This spring features an O.D. of 0.125", and an I.D. of 0.091".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | J-69 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.56 in |
| Inside Diameter | 0.091 in |
| Material | Music Wire |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 7.3 lbs/in |
| SKU | J-69CS |
| Solid Length | 0.27 in |
| Suggested Max Deflection | 0.29 in |
| Suggested Max Load | 2.1 lbf |
| Total Coils | 15 |
| Wire Diameter | 0.017 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | J-69 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 14.22 mm |
| Inside Diameter | 2.31 mm |
| Material | Music Wire |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 1.28 N/mm |
| SKU | J-69CS |
| Solid Length | 6.86 mm |
| Suggested Max Deflection | 7.37 mm |
| Suggested Max Load | 9.34 N |
| Total Coils | 15 |
| Wire Diameter | 0.43 mm |
The J-69 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The J-69CS compression spring is designed with a free length of 0.25" total of 7 coils, and a rate of 31 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The J-69 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The J-69CS compression spring is designed with a free length of 0.25" total of 7 coils, and a rate of 31 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The J-69 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
