J-68CS - 0.25" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

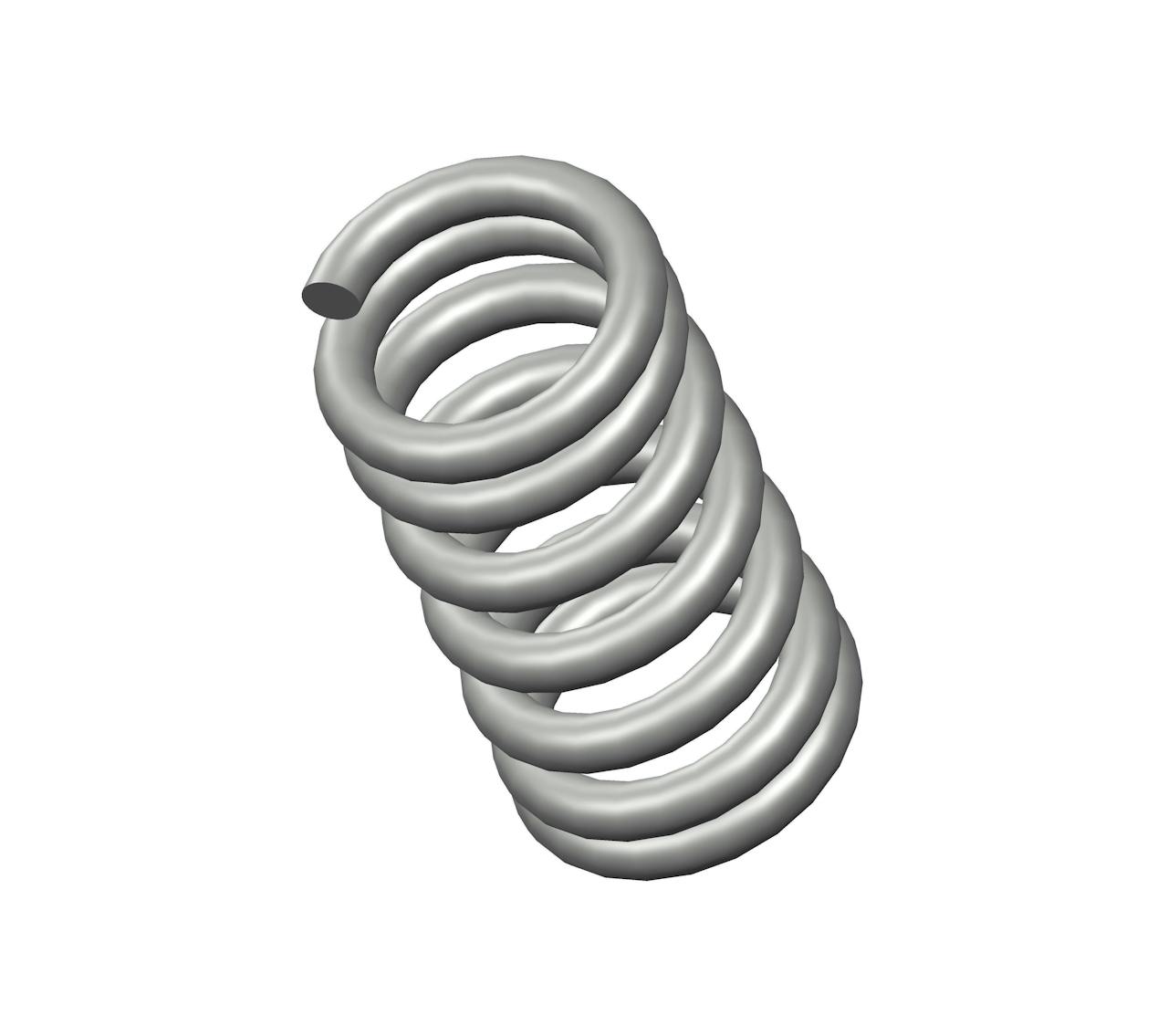

Compression spring manufactured from music wire with 7 coils and closed ends. This spring features an O.D. of 0.125", and an I.D. of 0.085".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | J-68 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.25 in |
| Inside Diameter | 0.085 in |
| Material | Music Wire |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 31 lbs/in |
| SKU | J-68CS |
| Solid Length | 0.15 in |
| Suggested Max Deflection | 0.1 in |
| Suggested Max Load | 3.1 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.02 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | J-68 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 6.35 mm |
| Inside Diameter | 2.16 mm |
| Material | Music Wire |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 5.43 N/mm |
| SKU | J-68CS |
| Solid Length | 3.81 mm |
| Suggested Max Deflection | 2.54 mm |
| Suggested Max Load | 13.79 N |
| Total Coils | 7 |
| Wire Diameter | 0.51 mm |
The compression spring J-68CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the J-68 compression spring design exhibits exceptional tensile strength and resilience.
The J-68 design is manufactured with a free length of 0.25", with an outer diameter of 0.125", an inner diameter of 0.085", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 31 lbs/in.
The J-68CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring J-68 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The J-68 design is manufactured with a free length of 0.25", with an outer diameter of 0.125", an inner diameter of 0.085", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 31 lbs/in.
The J-68CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring J-68 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
