J-62CS - 0.84" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

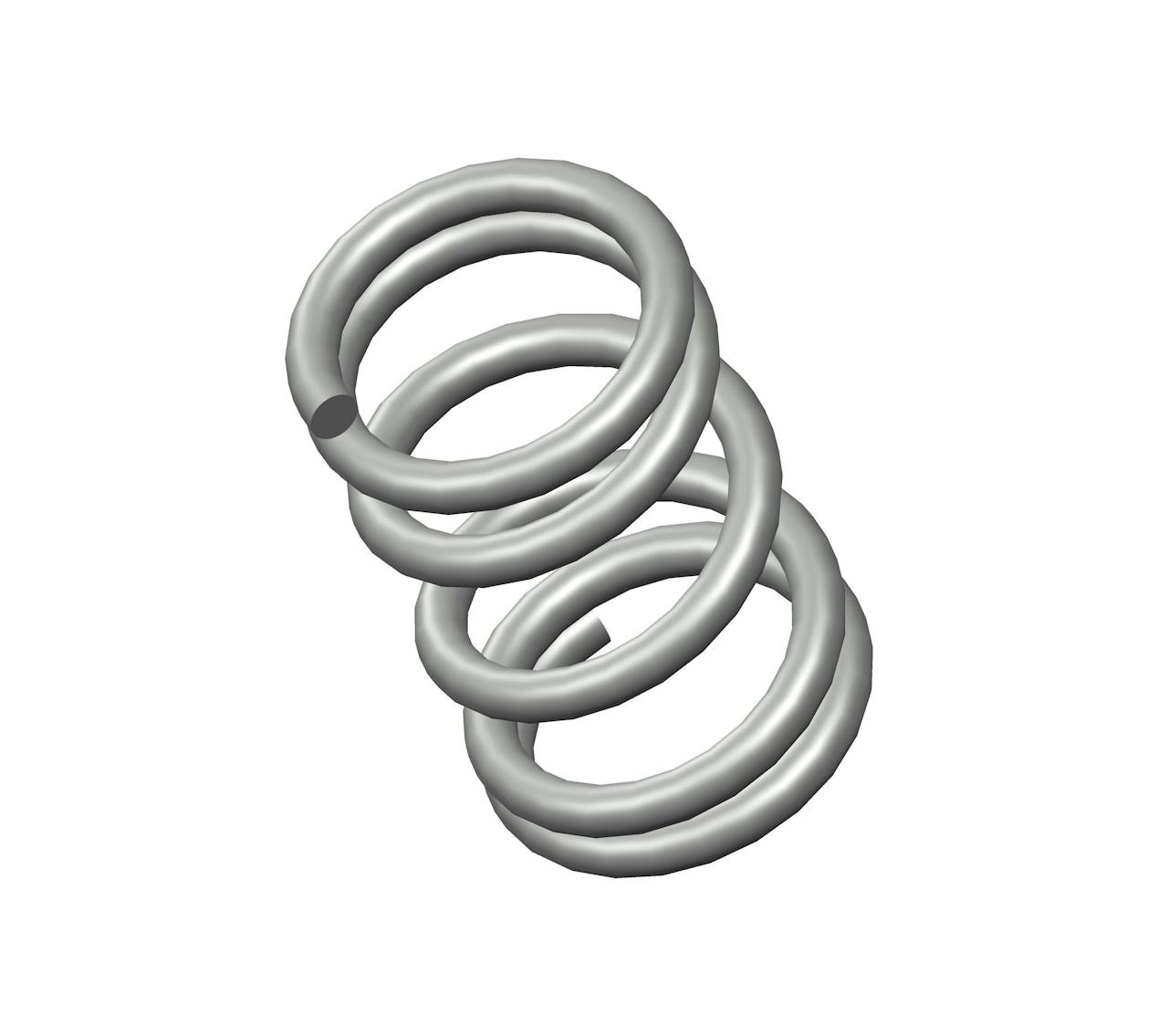

Compression spring manufactured from spring steel with 5.25 coils and closed ends. This spring features an O.D. of 0.5", and an I.D. of 0.372".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | J-62 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.84 in |
| Inside Diameter | 0.372 in |
| Material | Spring Steel |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 86 lbs/in |
| SKU | J-62CS |
| Solid Length | 0.41 in |
| Suggested Max Deflection | 0.21 in |
| Suggested Max Load | 19 lbf |
| Total Coils | 5.25 |
| Wire Diameter | 0.064 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | J-62 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 21.34 mm |
| Inside Diameter | 9.45 mm |
| Material | Spring Steel |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 15.06 N/mm |
| SKU | J-62CS |
| Solid Length | 10.41 mm |
| Suggested Max Deflection | 5.33 mm |
| Suggested Max Load | 84.51 N |
| Total Coils | 5.25 |
| Wire Diameter | 1.63 mm |
The J-62 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The J-62CS compression spring is designed with a free length of 1.75" total of 24 coils, and a rate of 8.7 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The J-62 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The J-62CS compression spring is designed with a free length of 1.75" total of 24 coils, and a rate of 8.7 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The J-62 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
