J-61CS - 1.75" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

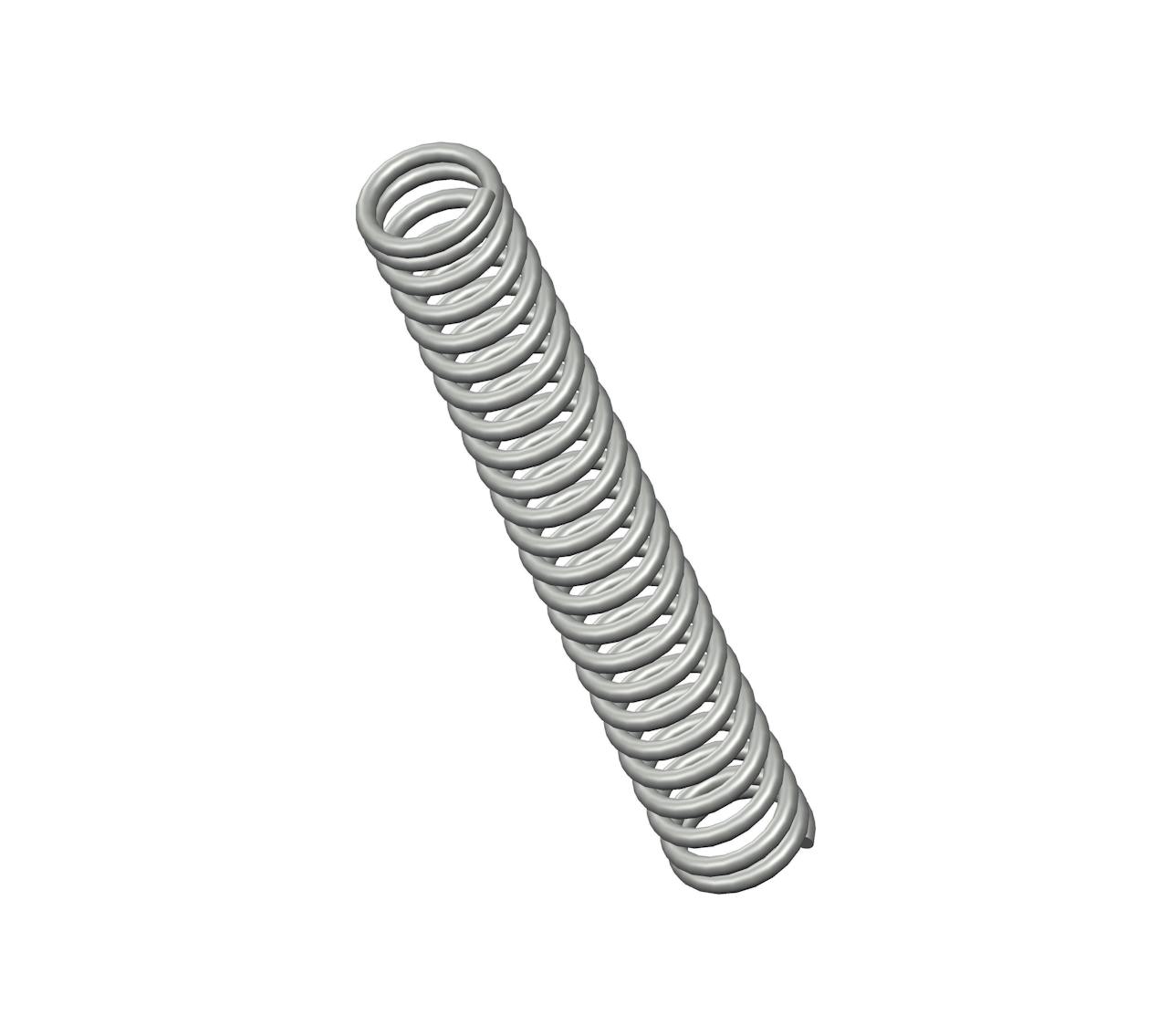

Compression spring manufactured from spring steel with 24 coils and closed ends. This spring features an O.D. of 0.25", and an I.D. of 0.182".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | J-61 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 1.75 in |
| Inside Diameter | 0.182 in |
| Material | Spring Steel |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 8.7 lbs/in |
| SKU | J-61CS |
| Solid Length | 0.82 in |
| Suggested Max Deflection | 0.71 in |
| Suggested Max Load | 6.2 lbf |
| Total Coils | 24 |
| Wire Diameter | 0.034 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | J-61 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 44.45 mm |
| Inside Diameter | 4.62 mm |
| Material | Spring Steel |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 1.52 N/mm |
| SKU | J-61CS |
| Solid Length | 20.83 mm |
| Suggested Max Deflection | 18.03 mm |
| Suggested Max Load | 27.58 N |
| Total Coils | 24 |
| Wire Diameter | 0.86 mm |
The compression spring J-61CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the J-61 compression spring design exhibits exceptional tensile strength and resilience.
The J-61 design is manufactured with a free length of 1.75", with an outer diameter of 0.25", an inner diameter of 0.182", and a total of 24 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.7 lbs/in.
The J-61CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring J-61 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The J-61 design is manufactured with a free length of 1.75", with an outer diameter of 0.25", an inner diameter of 0.182", and a total of 24 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.7 lbs/in.
The J-61CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring J-61 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
