J-18CS - 0.69" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

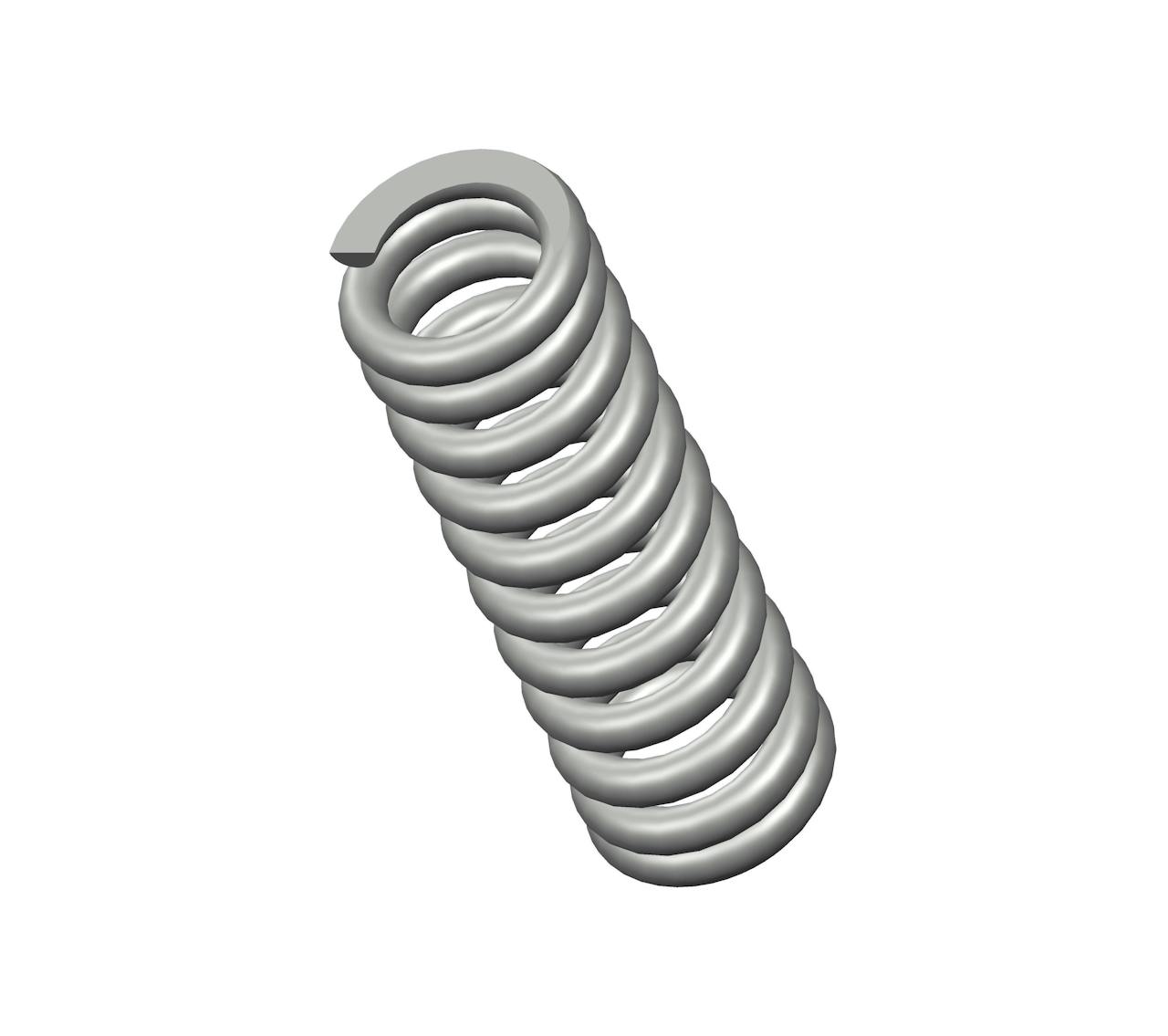

Compression spring manufactured from spring steel with 11 coils and closed & ground ends. This spring features an O.D. of 0.219", and an I.D. of 0.139".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | J-18 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 0.69 in |
| Inside Diameter | 0.139 in |
| Material | Spring Steel |
| Outside Diameter | 0.219 in |
| Part Type | Standard |
| Rate | 71 lbs/in |
| SKU | J-18CS |
| Solid Length | 0.44 in |
| Suggested Max Deflection | 0.15 in |
| Suggested Max Load | 11 lbf |
| Total Coils | 11 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | J-18 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 17.53 mm |
| Inside Diameter | 3.53 mm |
| Material | Spring Steel |
| Outside Diameter | 5.56 mm |
| Part Type | Standard |
| Rate | 12.43 N/mm |
| SKU | J-18CS |
| Solid Length | 11.18 mm |
| Suggested Max Deflection | 3.81 mm |
| Suggested Max Load | 48.93 N |
| Total Coils | 11 |
| Wire Diameter | 1.02 mm |
The compression spring J-18CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the J-18 compression spring design exhibits exceptional tensile strength and resilience.
The J-18 design is manufactured with a free length of 0.69", with an outer diameter of 0.219", an inner diameter of 0.139", and a total of 11 coils, expertly designed to deliver consistent compression characteristics including a rate of 71 lbs/in.
The J-18CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring J-18 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The J-18 design is manufactured with a free length of 0.69", with an outer diameter of 0.219", an inner diameter of 0.139", and a total of 11 coils, expertly designed to deliver consistent compression characteristics including a rate of 71 lbs/in.
The J-18CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring J-18 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
