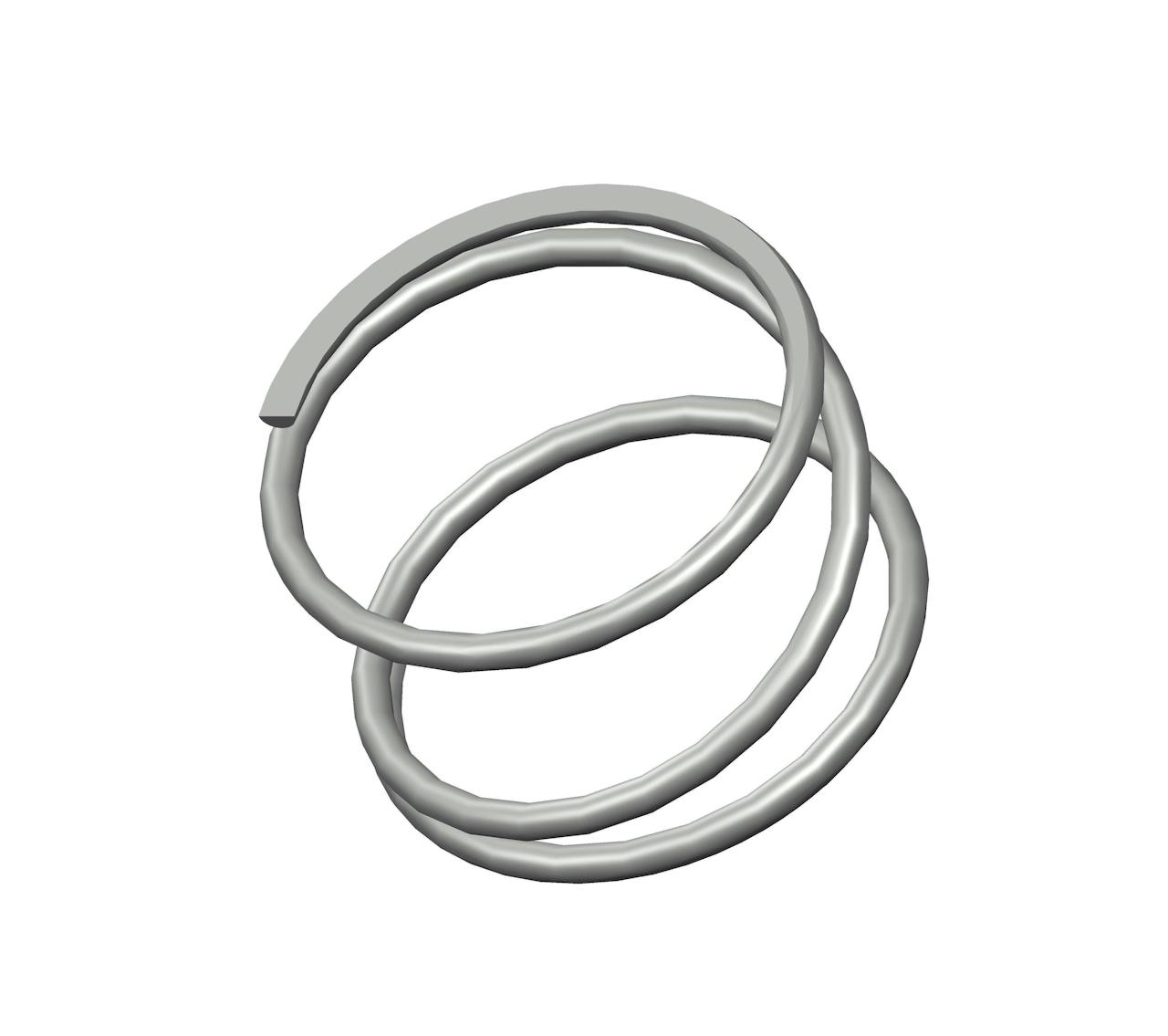

II-92CS - 0.78" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from spring steel with 3 coils and closed & ground ends. This spring features an O.D. of 1.234", and an I.D. of 1.074".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | II-92 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.78 in |
| Inside Diameter | 1.074 in |
| Material | Spring Steel |
| Outside Diameter | 1.234 in |
| Part Type | Standard |
| Rate | 38 lbs/in |
| SKU | II-92CS |
| Solid Length | 0.24 in |
| Suggested Max Deflection | 0.38 in |
| Suggested Max Load | 14 lbf |
| Total Coils | 3 |
| Wire Diameter | 0.08 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | II-92 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 19.81 mm |
| Inside Diameter | 27.28 mm |
| Material | Spring Steel |
| Outside Diameter | 31.34 mm |
| Part Type | Standard |
| Rate | 6.65 N/mm |
| SKU | II-92CS |
| Solid Length | 6.1 mm |
| Suggested Max Deflection | 9.65 mm |
| Suggested Max Load | 62.27 N |
| Total Coils | 3 |
| Wire Diameter | 2.03 mm |
The compression spring II-92CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the II-92 compression spring design exhibits exceptional tensile strength and resilience.
The II-92 design is manufactured with a free length of 0.78", with an outer diameter of 1.234", an inner diameter of 1.074", and a total of 3 coils, expertly designed to deliver consistent compression characteristics including a rate of 38 lbs/in.
The II-92CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring II-92 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
