II-81CS - 0.75" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

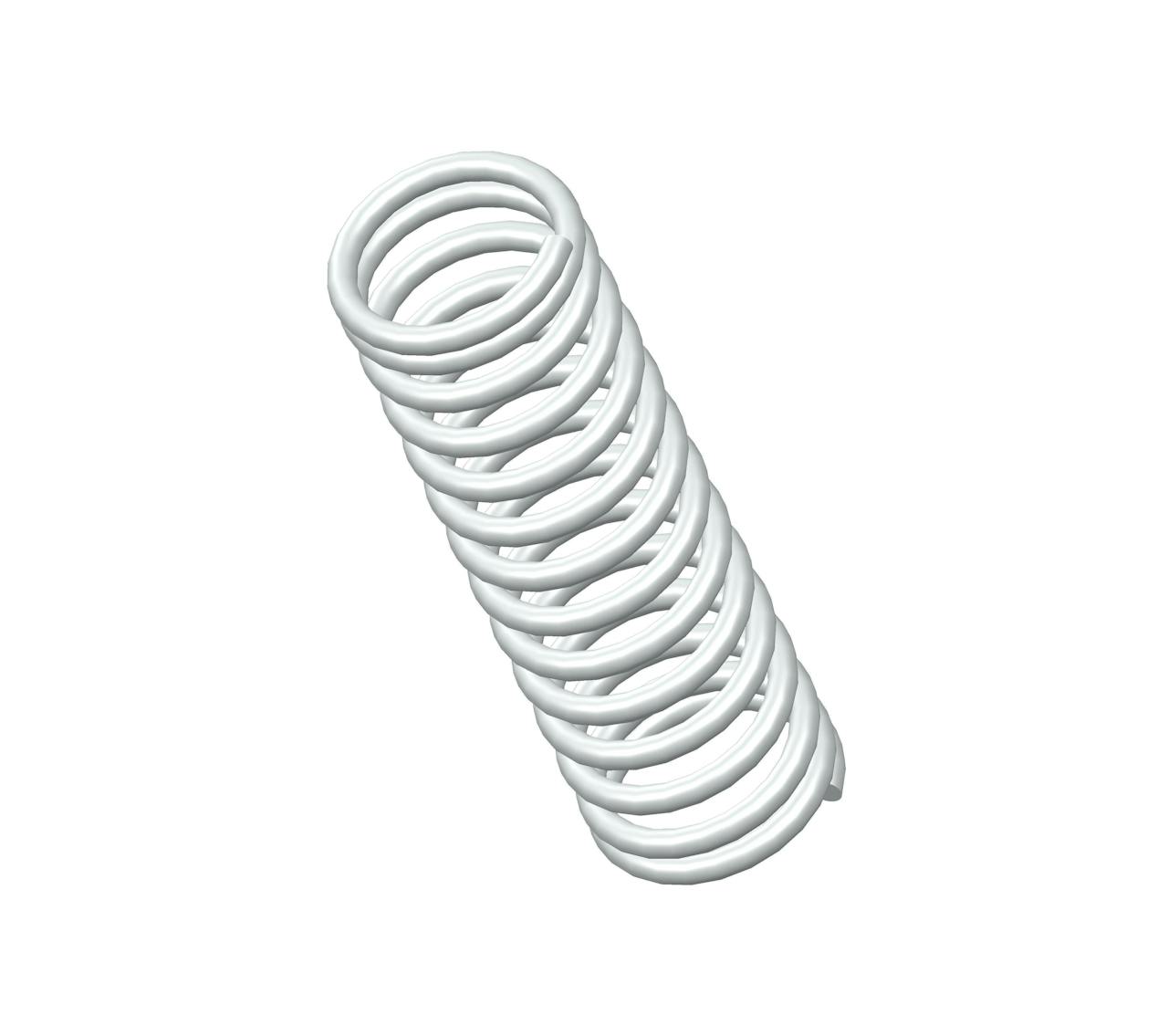

Compression spring manufactured from 302/304 stainless steel with 14 coils and closed ends. This spring features an O.D. of 0.219", and an I.D. of 0.169".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | II-81 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.75 in |
| Inside Diameter | 0.169 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.219 in |
| Part Type | Standard |
| Rate | 5.6 lbs/in |
| SKU | II-81CS |
| Solid Length | 0.38 in |
| Suggested Max Deflection | 0.38 in |
| Suggested Max Load | 2.1 lbf |
| Total Coils | 14 |
| Wire Diameter | 0.025 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | II-81 |
| Ends | Closed |
| Finish | None |
| Free Length | 19.05 mm |
| Inside Diameter | 4.29 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 5.56 mm |
| Part Type | Standard |
| Rate | 0.98 N/mm |
| SKU | II-81CS |
| Solid Length | 9.65 mm |
| Suggested Max Deflection | 9.65 mm |
| Suggested Max Load | 9.34 N |
| Total Coils | 14 |
| Wire Diameter | 0.64 mm |
The compression spring II-81CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the II-81 compression spring design exhibits exceptional tensile strength and resilience.
The II-81 design is manufactured with a free length of 0.75", with an outer diameter of 0.219", an inner diameter of 0.169", and a total of 14 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.6 lbs/in.
The II-81CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring II-81 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The II-81 design is manufactured with a free length of 0.75", with an outer diameter of 0.219", an inner diameter of 0.169", and a total of 14 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.6 lbs/in.
The II-81CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring II-81 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
