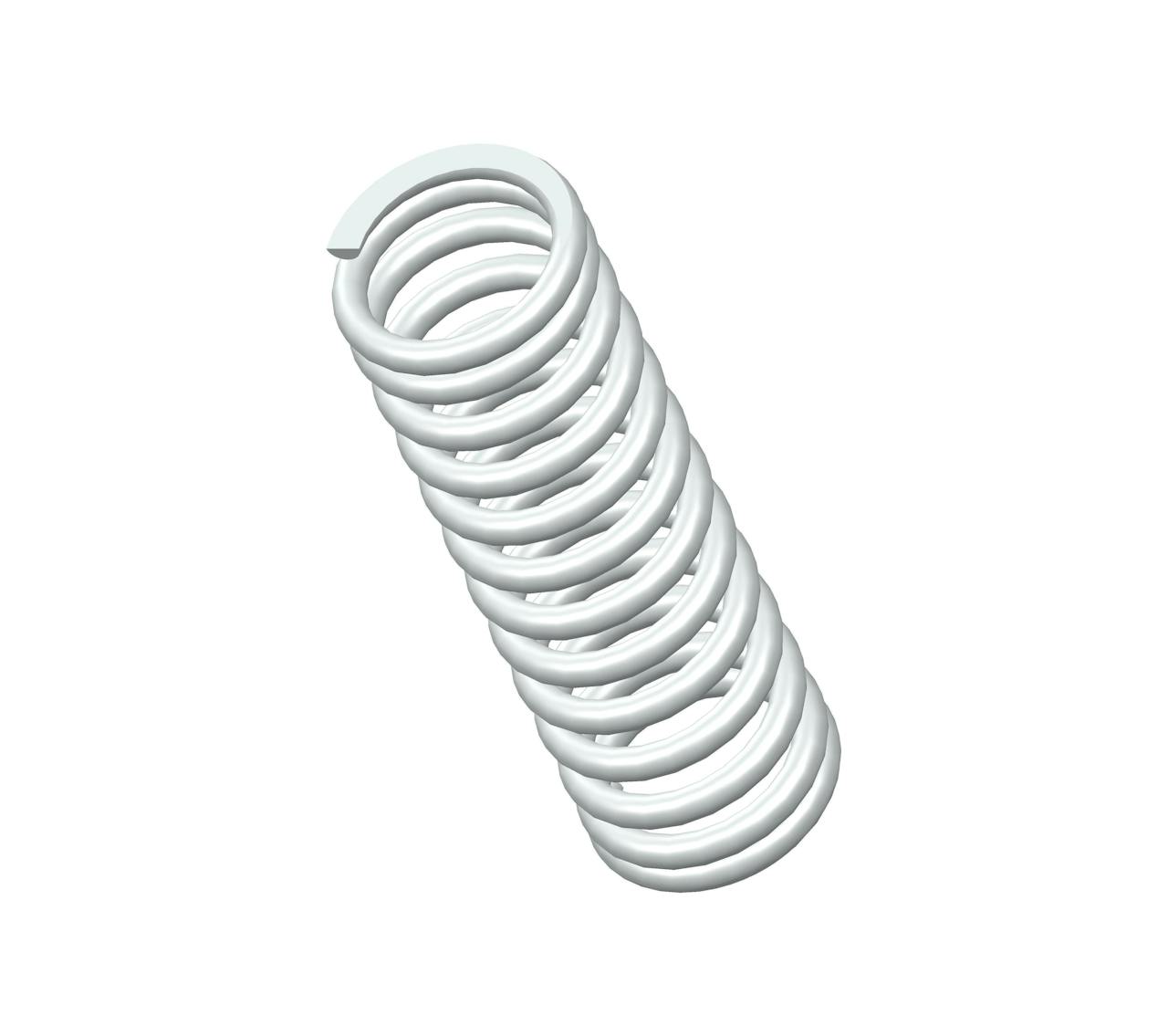

II-55CS - 1.19" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 13 coils and closed & ground ends. This spring features an O.D. of 0.375", and an I.D. of 0.277".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | II-55 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.19 in |
| Inside Diameter | 0.277 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.375 in |
| Part Type | Standard |
| Rate | 19 lbs/in |
| SKU | II-55CS |
| Solid Length | 0.64 in |
| Suggested Max Deflection | 0.55 in |
| Suggested Max Load | 10 lbf |
| Total Coils | 13 |
| Wire Diameter | 0.049 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | II-55 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 30.23 mm |
| Inside Diameter | 7.04 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 9.53 mm |
| Part Type | Standard |
| Rate | 3.33 N/mm |
| SKU | II-55CS |
| Solid Length | 16.26 mm |
| Suggested Max Deflection | 13.97 mm |
| Suggested Max Load | 44.48 N |
| Total Coils | 13 |
| Wire Diameter | 1.24 mm |
The compression spring II-55CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the II-55 compression spring design exhibits exceptional tensile strength and resilience.
The II-55 design is manufactured with a free length of 1.19", with an outer diameter of 0.375", an inner diameter of 0.277", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 19 lbs/in.
The II-55CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring II-55 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The II-55 design is manufactured with a free length of 1.19", with an outer diameter of 0.375", an inner diameter of 0.277", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 19 lbs/in.
The II-55CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring II-55 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
