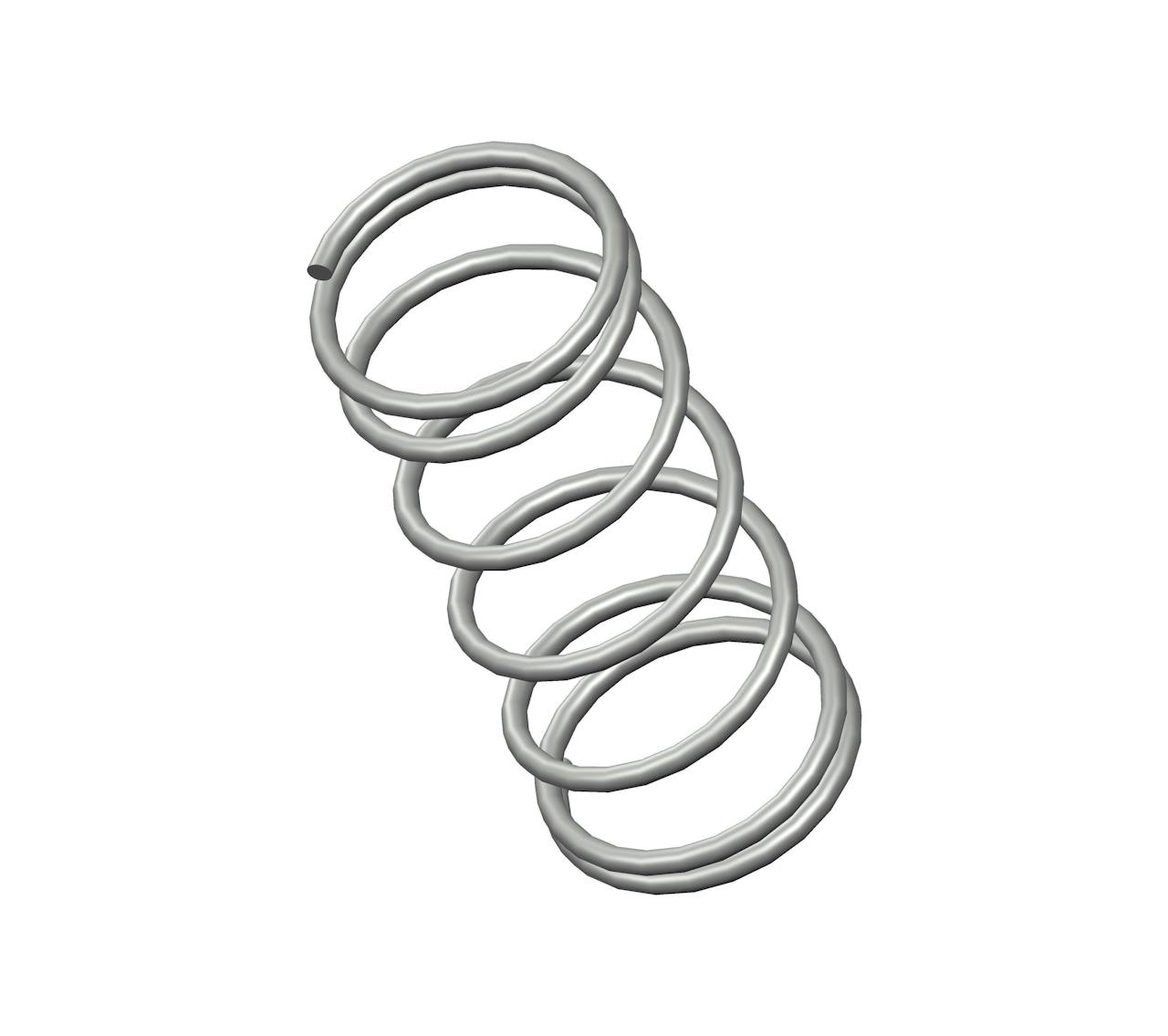

II-29CS - 0.75" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 7 coils and closed ends. This spring features an O.D. of 0.312", and an I.D. of 0.264".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | II-29 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.75 in |
| Inside Diameter | 0.264 in |
| Material | Music Wire |
| Outside Diameter | 0.312 in |
| Part Type | Standard |
| Rate | 4 lbs/in |
| SKU | II-29CS |
| Solid Length | 0.19 in |
| Suggested Max Deflection | 0.56 in |
| Suggested Max Load | 2.2 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.024 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | II-29 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 19.05 mm |
| Inside Diameter | 6.71 mm |
| Material | Music Wire |
| Outside Diameter | 7.92 mm |
| Part Type | Standard |
| Rate | 0.7 N/mm |
| SKU | II-29CS |
| Solid Length | 4.83 mm |
| Suggested Max Deflection | 14.22 mm |
| Suggested Max Load | 9.79 N |
| Total Coils | 7 |
| Wire Diameter | 0.61 mm |
The compression spring II-29CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the II-29 compression spring design exhibits exceptional tensile strength and resilience.
The II-29 design is manufactured with a free length of 0.75", with an outer diameter of 0.312", an inner diameter of 0.264", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 4 lbs/in.
The II-29CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring II-29 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
