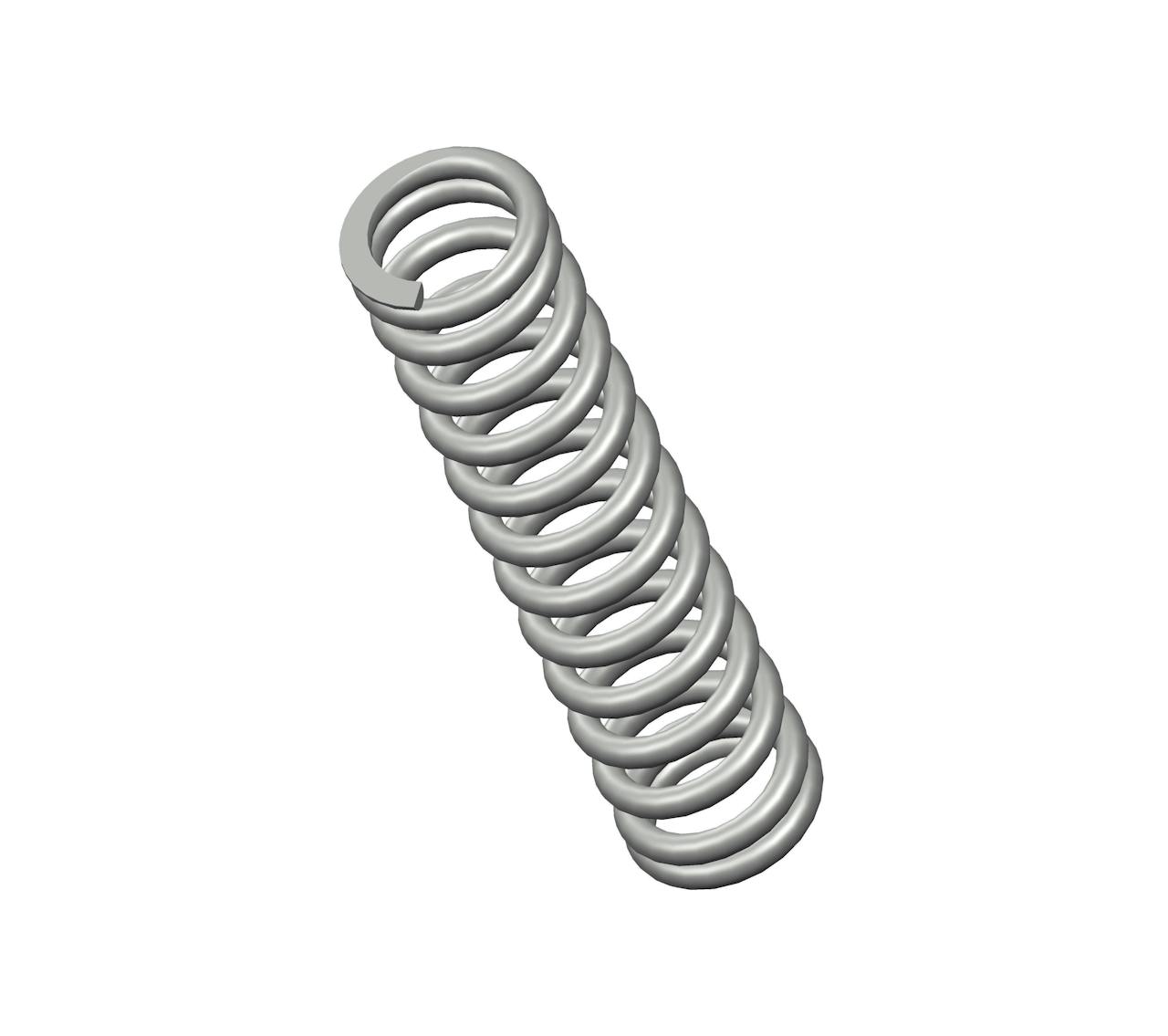

I-77CS - 1.31" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from spring steel with 13.5 coils and closed & ground ends. This spring features an O.D. of 0.296", and an I.D. of 0.206".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | I-77 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.31 in |
| Inside Diameter | 0.206 in |
| Material | Spring Steel |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 32 lbs/in |
| SKU | I-77CS |
| Solid Length | 0.61 in |
| Suggested Max Deflection | 0.35 in |
| Suggested Max Load | 11 lbf |
| Total Coils | 13.5 |
| Wire Diameter | 0.045 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | I-77 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 33.27 mm |
| Inside Diameter | 5.23 mm |
| Material | Spring Steel |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 5.6 N/mm |
| SKU | I-77CS |
| Solid Length | 15.49 mm |
| Suggested Max Deflection | 8.89 mm |
| Suggested Max Load | 48.93 N |
| Total Coils | 13.5 |
| Wire Diameter | 1.14 mm |
The compression spring I-77CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the I-77 compression spring design exhibits exceptional tensile strength and resilience.
The I-77 design is manufactured with a free length of 1.31", with an outer diameter of 0.296", an inner diameter of 0.206", and a total of 13.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 32 lbs/in.
The I-77CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring I-77 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The I-77 design is manufactured with a free length of 1.31", with an outer diameter of 0.296", an inner diameter of 0.206", and a total of 13.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 32 lbs/in.
The I-77CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring I-77 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
