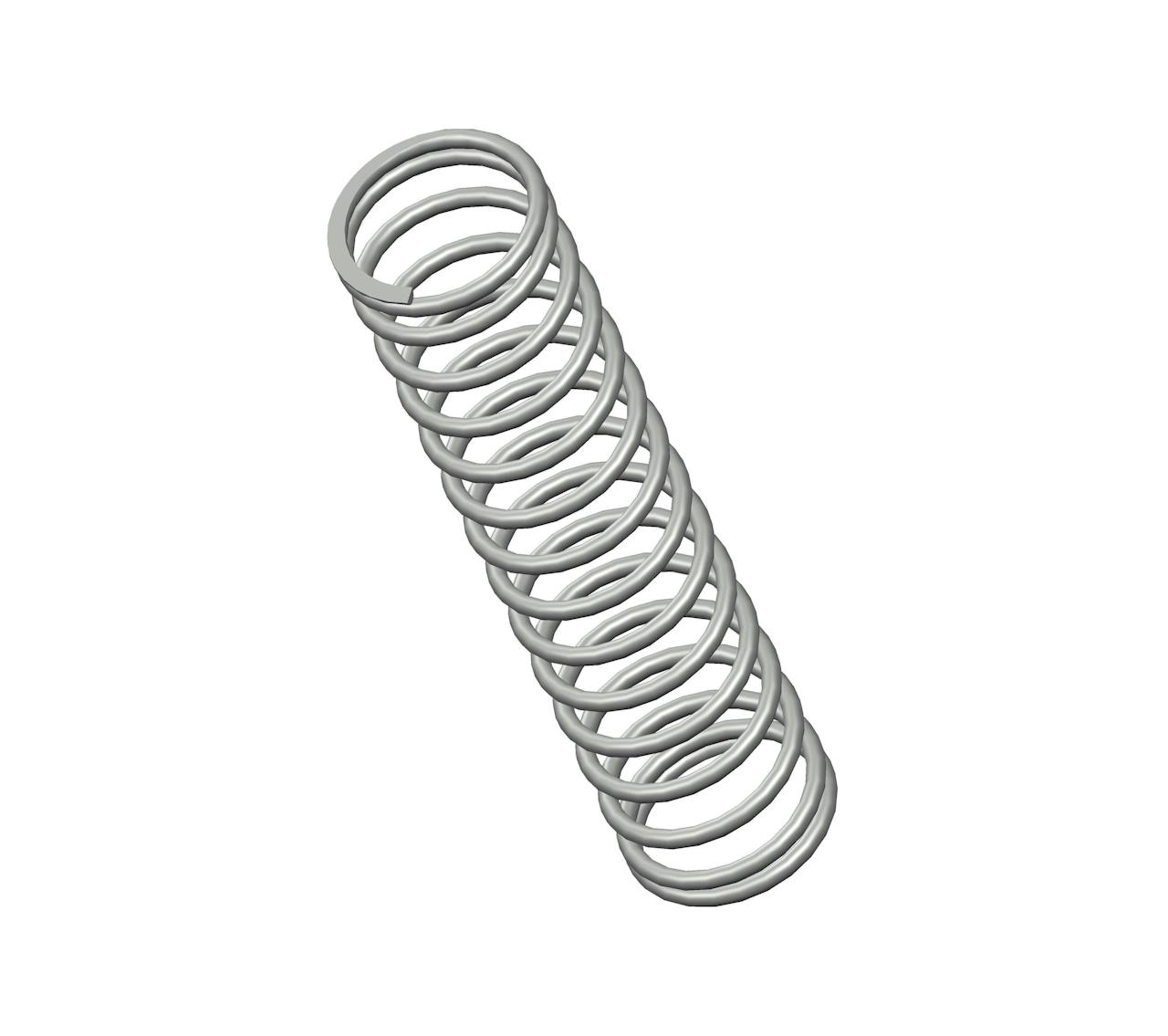

HH-75CS - 1.94" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 15.5 coils and closed & ground ends. This spring features an O.D. of 0.453", and an I.D. of 0.373".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | HH-75 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 1.94 in |
| Inside Diameter | 0.373 in |
| Material | Spring Steel |
| Outside Diameter | 0.453 in |
| Part Type | Standard |
| Rate | 3.9 lbs/in |
| SKU | HH-75CS |
| Solid Length | 0.62 in |
| Suggested Max Deflection | 1.3 in |
| Suggested Max Load | 5.1 lbf |
| Total Coils | 15.5 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | HH-75 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 49.28 mm |
| Inside Diameter | 9.47 mm |
| Material | Spring Steel |
| Outside Diameter | 11.51 mm |
| Part Type | Standard |
| Rate | 0.68 N/mm |
| SKU | HH-75CS |
| Solid Length | 15.75 mm |
| Suggested Max Deflection | 33.02 mm |
| Suggested Max Load | 22.68 N |
| Total Coils | 15.5 |
| Wire Diameter | 1.02 mm |
The compression spring HH-75CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the HH-75 compression spring design exhibits exceptional tensile strength and resilience.
The HH-75 design is manufactured with a free length of 1.94", with an outer diameter of 0.453", an inner diameter of 0.373", and a total of 15.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.9 lbs/in.
The HH-75CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring HH-75 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The HH-75 design is manufactured with a free length of 1.94", with an outer diameter of 0.453", an inner diameter of 0.373", and a total of 15.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.9 lbs/in.
The HH-75CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring HH-75 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
