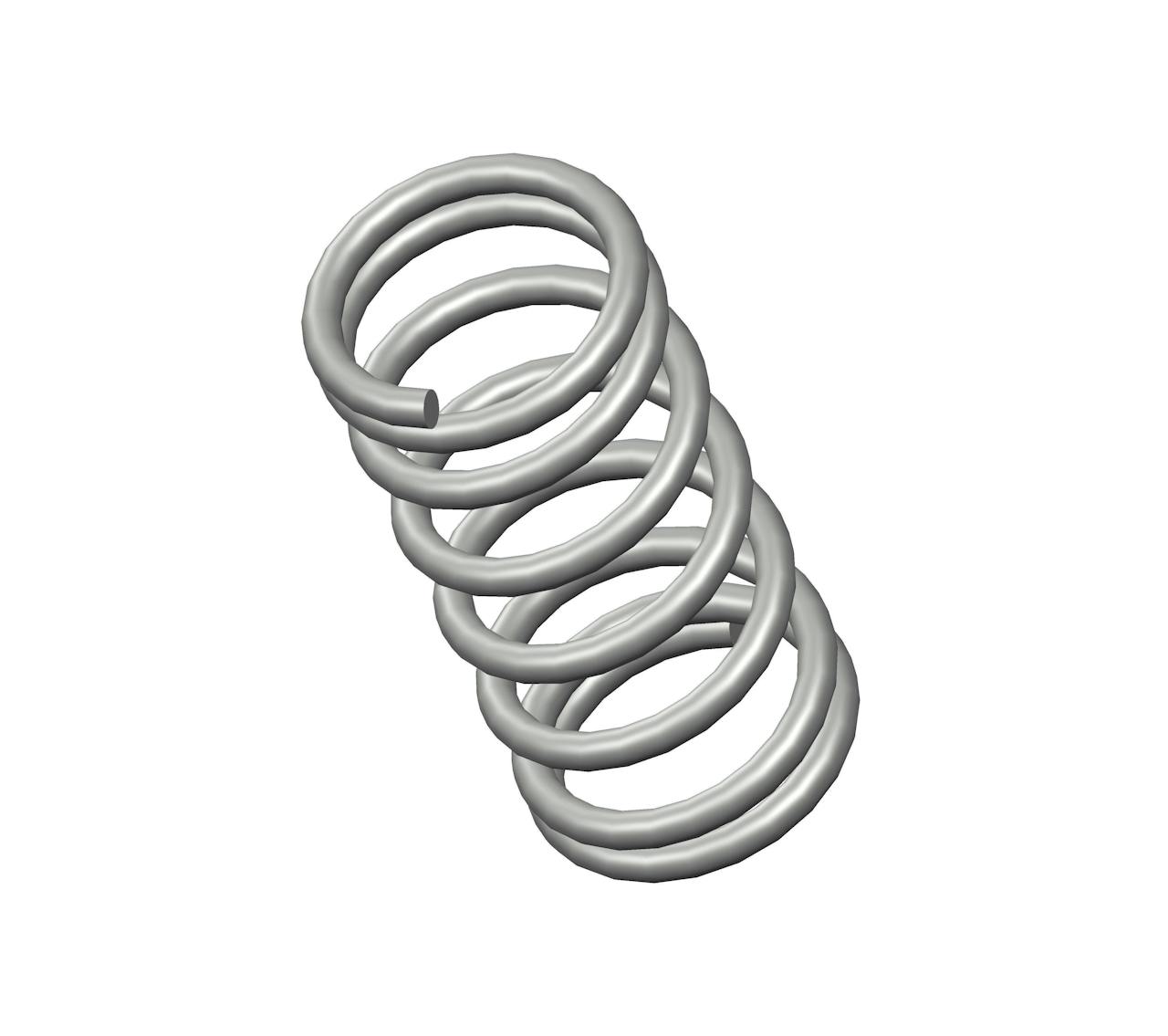

HH-73CS - 0.69" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 7.5 coils and closed ends. This spring features an O.D. of 0.312", and an I.D. of 0.242".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | HH-73 |
| Ends | Closed |
| Finish | Gold Iridite |
| Free Length | 0.69 in |
| Inside Diameter | 0.242 in |
| Material | Spring Steel |
| Outside Diameter | 0.312 in |
| Part Type | Standard |
| Rate | 18 lbs/in |
| SKU | HH-73CS |
| Solid Length | 0.3 in |
| Suggested Max Deflection | 0.28 in |
| Suggested Max Load | 5.2 lbf |
| Total Coils | 7.5 |
| Wire Diameter | 0.035 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | HH-73 |
| Ends | Closed |
| Finish | Gold Iridite |
| Free Length | 17.53 mm |
| Inside Diameter | 6.15 mm |
| Material | Spring Steel |
| Outside Diameter | 7.92 mm |
| Part Type | Standard |
| Rate | 3.15 N/mm |
| SKU | HH-73CS |
| Solid Length | 7.62 mm |
| Suggested Max Deflection | 7.11 mm |
| Suggested Max Load | 23.13 N |
| Total Coils | 7.5 |
| Wire Diameter | 0.89 mm |
The HH-73 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The HH-73CS compression spring is designed with a free length of 1.13" total of 7.25 coils, and a rate of 88 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The HH-73 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The HH-73CS compression spring is designed with a free length of 1.13" total of 7.25 coils, and a rate of 88 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The HH-73 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
