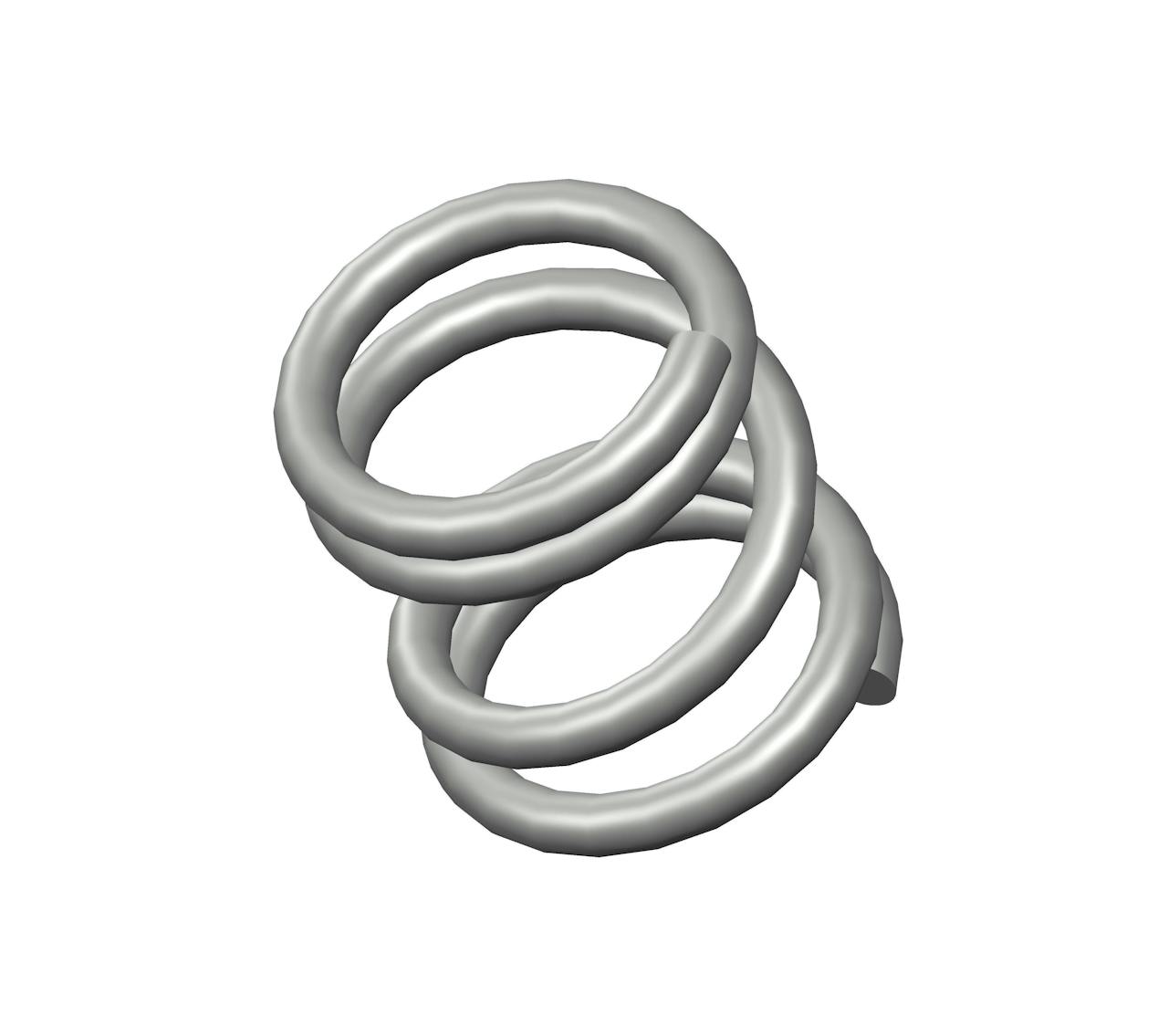

HH-70CS - 0.19" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 4 coils and closed ends. This spring features an O.D. of 0.156", and an I.D. of 0.116".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | HH-70 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.19 in |
| Inside Diameter | 0.116 in |
| Material | Music Wire |
| Outside Diameter | 0.156 in |
| Part Type | Standard |
| Rate | 46 lbs/in |
| SKU | HH-70CS |
| Solid Length | 0.1 in |
| Suggested Max Deflection | 0.07 in |
| Suggested Max Load | 3 lbf |
| Total Coils | 4 |
| Wire Diameter | 0.02 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | HH-70 |
| Ends | Closed |
| Finish | None |
| Free Length | 4.83 mm |
| Inside Diameter | 2.95 mm |
| Material | Music Wire |
| Outside Diameter | 3.96 mm |
| Part Type | Standard |
| Rate | 8.05 N/mm |
| SKU | HH-70CS |
| Solid Length | 2.54 mm |
| Suggested Max Deflection | 1.78 mm |
| Suggested Max Load | 13.34 N |
| Total Coils | 4 |
| Wire Diameter | 0.51 mm |
The HH-70 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The HH-70CS compression spring is designed with a free length of 0.53" total of 9.75 coils, and a rate of 8.4 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The HH-70 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The HH-70CS compression spring is designed with a free length of 0.53" total of 9.75 coils, and a rate of 8.4 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The HH-70 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
