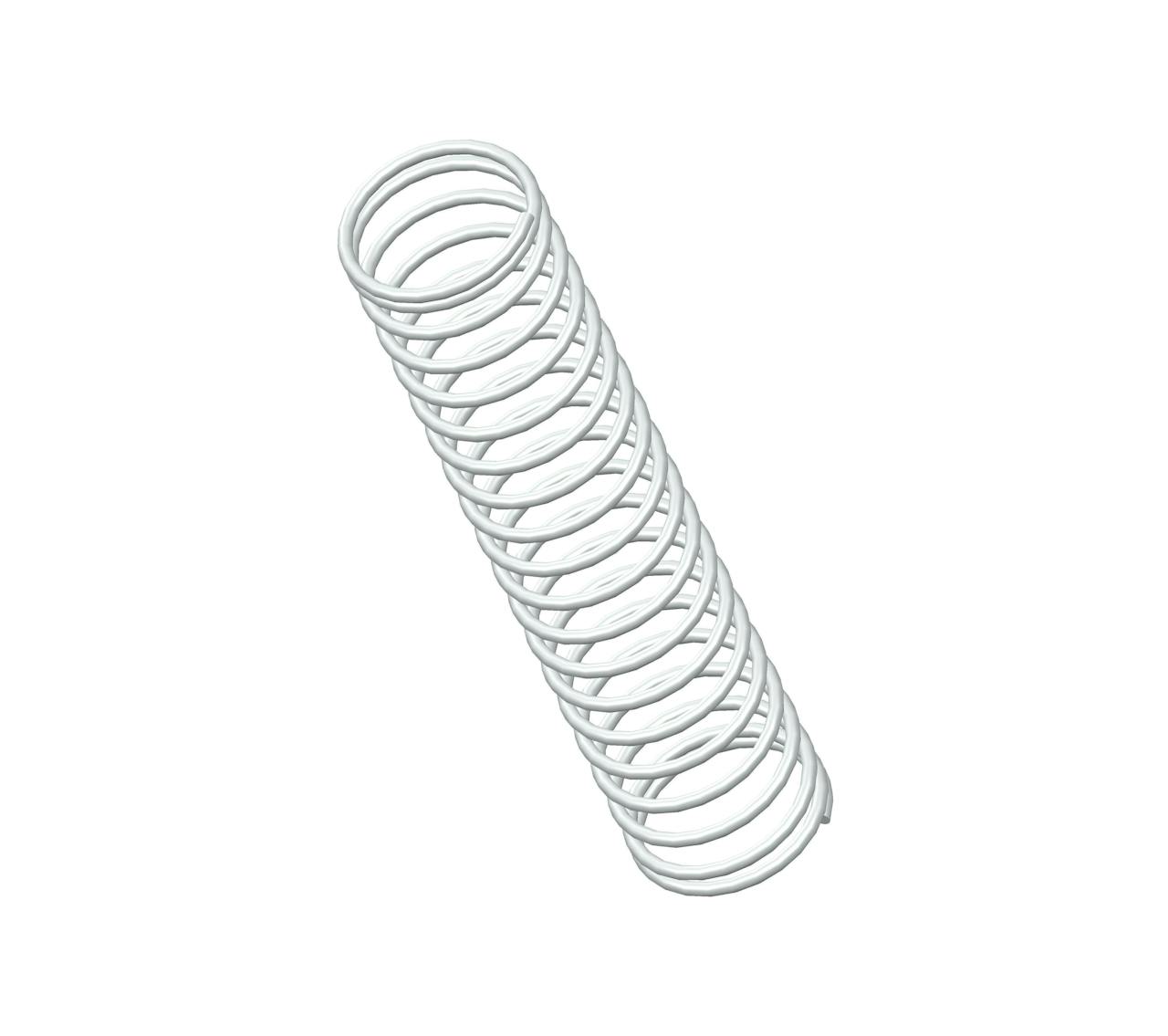

HH-55CS - 1.16" 302/304 Stainless Steel Compression Spring
Inventory Status |
|
---|---|
Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 20 coils and closed ends. This spring features an O.D. of 0.25", and an I.D. of 0.214".


Label | Value |
---|---|
Brand | Century Spring |
Display Name | HH-55 |
Ends | Closed |
Finish | None |
Free Length | 1.16 in |
Inside Diameter | 0.214 in |
Material | 302/304 Stainless Steel |
Outside Diameter | 0.25 in |
Part Type | Standard |
Rate | 0.58 lbs/in |
SKU | HH-55CS |
Solid Length | 0.38 in |
Suggested Max Deflection | 0.78 in |
Suggested Max Load | 0.45 lbf |
Total Coils | 20 |
Wire Diameter | 0.018 in |
Label | Value |
---|---|
Brand | Century Spring |
Display Name | HH-55 |
Ends | Closed |
Finish | None |
Free Length | 29.46 mm |
Inside Diameter | 5.44 mm |
Material | 302/304 Stainless Steel |
Outside Diameter | 6.35 mm |
Part Type | Standard |
Rate | 0.1 N/mm |
SKU | HH-55CS |
Solid Length | 9.65 mm |
Suggested Max Deflection | 19.81 mm |
Suggested Max Load | 2 N |
Total Coils | 20 |
Wire Diameter | 0.46 mm |
The compression spring HH-55CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the HH-55 compression spring design exhibits exceptional tensile strength and resilience.
The HH-55 design is manufactured with a free length of 1.16", with an outer diameter of 0.25", an inner diameter of 0.214", and a total of 20 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.58 lbs/in.
The HH-55CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring HH-55 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The HH-55 design is manufactured with a free length of 1.16", with an outer diameter of 0.25", an inner diameter of 0.214", and a total of 20 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.58 lbs/in.
The HH-55CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring HH-55 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
