HH-54CS - 1.47" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

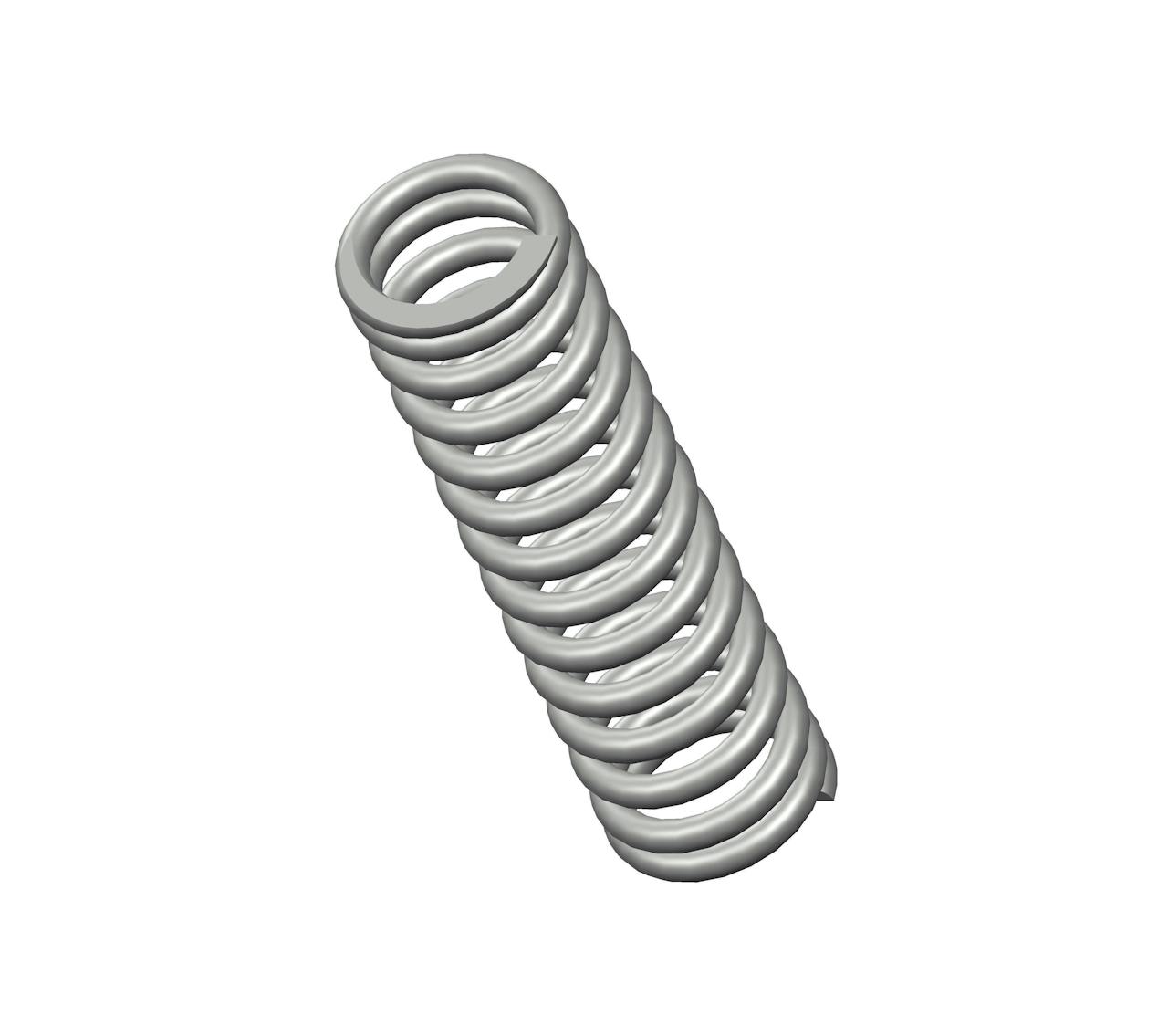

Compression spring manufactured from spring steel with 14 coils and closed & ground ends. This spring features an O.D. of 0.39", and an I.D. of 0.276".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name HH-54
Ends Closed & Ground
Finish Gold Iridite
Free Length 1.47 in
Inside Diameter 0.276 in
Material Spring Steel
Outside Diameter 0.39 in
Part Type Standard
Rate 34 lbs/in
SKU HH-54CS
Solid Length 0.8 in
Suggested Max Deflection 0.48 in
Suggested Max Load 17 lbf
Total Coils 14
Wire Diameter 0.057 in
The HH-54CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.057" diameter spring steel, the HH-54 spring design exhibits reliable strength across its 14 active coils, withstanding repeated compression cycles with a maximum load of 17 lbf without succumbing to fatigue.

We manufacture the HH-54 design to provide a compression spring that is 1.47" long at rest and provides a consistent rate of 34 lbs/in along its recommended maximum of 0.48" deflection. For best results, your application should fully accommodate the inner (0.276") and outer (0.39") diameters of this spring and be designed for its closed & ground end configuration.
