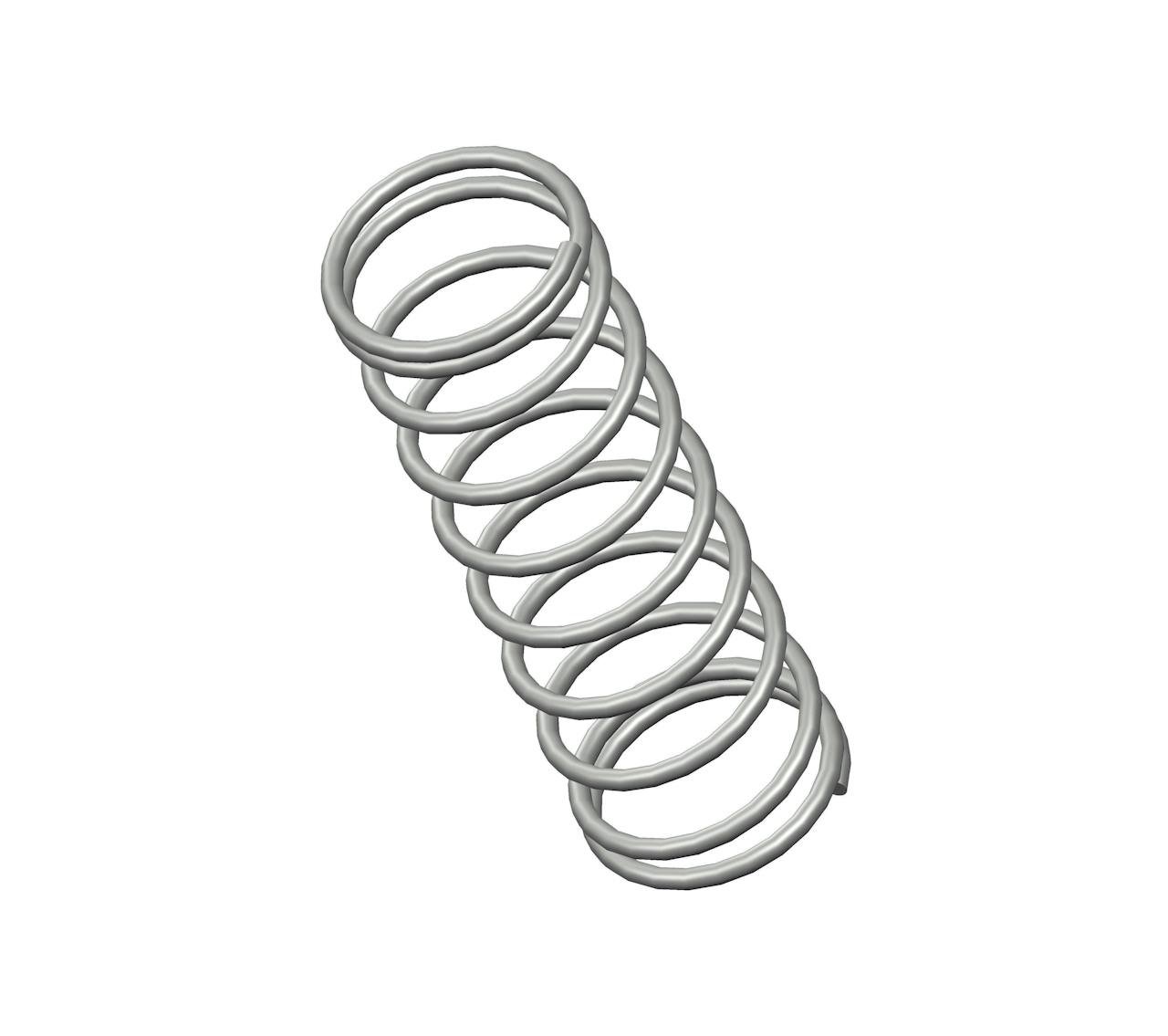

HH-44CS - 1.19" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 10 coils and closed ends. This spring features an O.D. of 0.375", and an I.D. of 0.315".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | HH-44 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.19 in |
| Inside Diameter | 0.315 in |
| Material | Music Wire |
| Outside Diameter | 0.375 in |
| Part Type | Standard |
| Rate | 3.5 lbs/in |
| SKU | HH-44CS |
| Solid Length | 0.33 in |
| Suggested Max Deflection | 0.86 in |
| Suggested Max Load | 3 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.03 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | HH-44 |
| Ends | Closed |
| Finish | None |
| Free Length | 30.23 mm |
| Inside Diameter | 8 mm |
| Material | Music Wire |
| Outside Diameter | 9.53 mm |
| Part Type | Standard |
| Rate | 0.61 N/mm |
| SKU | HH-44CS |
| Solid Length | 8.38 mm |
| Suggested Max Deflection | 21.84 mm |
| Suggested Max Load | 13.34 N |
| Total Coils | 10 |
| Wire Diameter | 0.76 mm |
The HH-44 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The HH-44CS compression spring is designed with a free length of 0.75" total of 11 coils, and a rate of 19 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The HH-44 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The HH-44CS compression spring is designed with a free length of 0.75" total of 11 coils, and a rate of 19 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The HH-44 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
