HH-32CS - 0.69" Music Wire Compression Spring

Inventory:
Estimated Lead Time

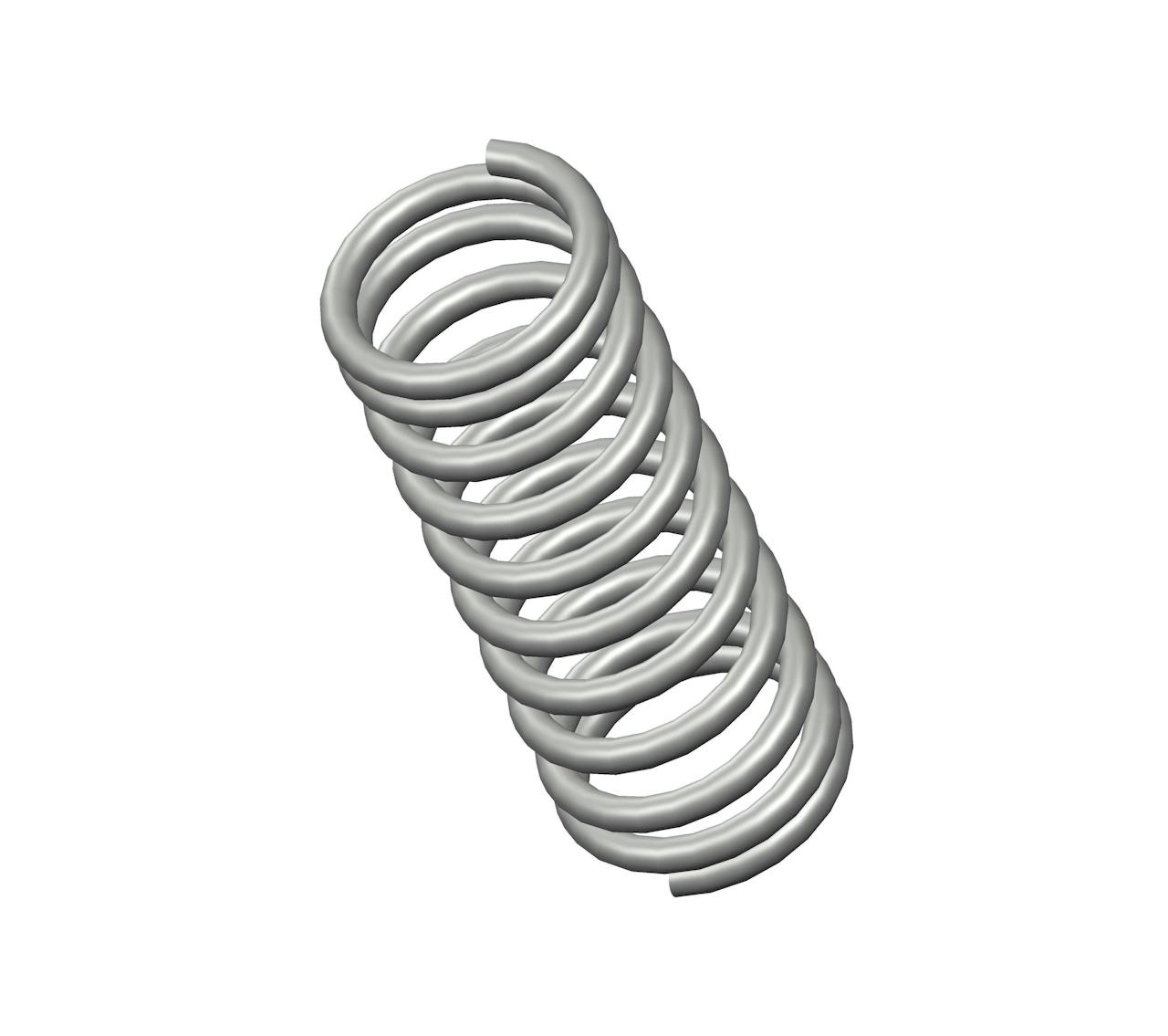

Compression spring manufactured from music wire with 10.5 coils and closed ends. This spring features an O.D. of 0.25", and an I.D. of 0.19".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name HH-32
Ends Closed
Finish Zinc
Free Length 0.69 in
Inside Diameter 0.19 in
Material Music Wire
Outside Diameter 0.25 in
Part Type Standard
Rate 13 lbs/in
SKU HH-32CS
Solid Length 0.35 in
Suggested Max Deflection 0.34 in
Suggested Max Load 4.4 lbf
Total Coils 10.5
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name HH-32
Ends Closed
Finish Zinc
Free Length 17.53 mm
Inside Diameter 4.83 mm
Material Music Wire
Outside Diameter 6.35 mm
Part Type Standard
Rate 2.28 N/mm
SKU HH-32CS
Solid Length 8.89 mm
Suggested Max Deflection 8.64 mm
Suggested Max Load 19.57 N
Total Coils 10.5
Wire Diameter 0.76 mm
The compression spring HH-32CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the HH-32 compression spring design exhibits exceptional tensile strength and resilience.

The HH-32 design is manufactured with a free length of 0.69", with an outer diameter of 0.25", an inner diameter of 0.19", and a total of 10.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 13 lbs/in.

The HH-32CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring HH-32 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
