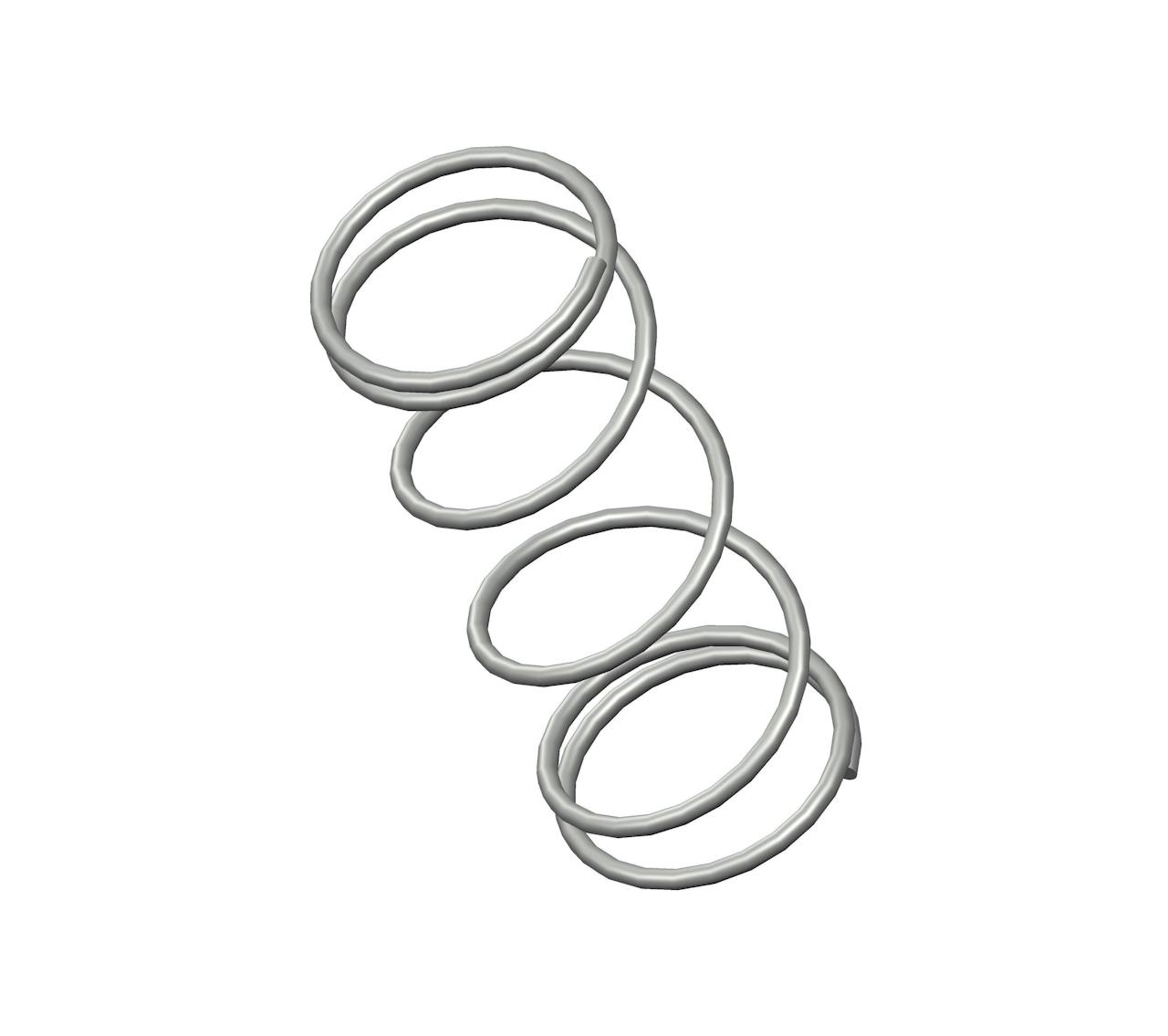

HH-21CS - 0.78" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 6 coils and closed ends. This spring features an O.D. of 0.296", and an I.D. of 0.256".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | HH-21 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.78 in |
| Inside Diameter | 0.256 in |
| Material | Music Wire |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 2.7 lbs/in |
| SKU | HH-21CS |
| Solid Length | 0.14 in |
| Suggested Max Deflection | 0.6 in |
| Suggested Max Load | 1.6 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.02 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | HH-21 |
| Ends | Closed |
| Finish | None |
| Free Length | 19.81 mm |
| Inside Diameter | 6.5 mm |
| Material | Music Wire |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 0.47 N/mm |
| SKU | HH-21CS |
| Solid Length | 3.56 mm |
| Suggested Max Deflection | 15.24 mm |
| Suggested Max Load | 7.12 N |
| Total Coils | 6 |
| Wire Diameter | 0.51 mm |
The compression spring HH-21CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the HH-21 compression spring design exhibits exceptional tensile strength and resilience.
The HH-21 design is manufactured with a free length of 0.78", with an outer diameter of 0.296", an inner diameter of 0.256", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.7 lbs/in.
The HH-21CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring HH-21 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The HH-21 design is manufactured with a free length of 0.78", with an outer diameter of 0.296", an inner diameter of 0.256", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.7 lbs/in.
