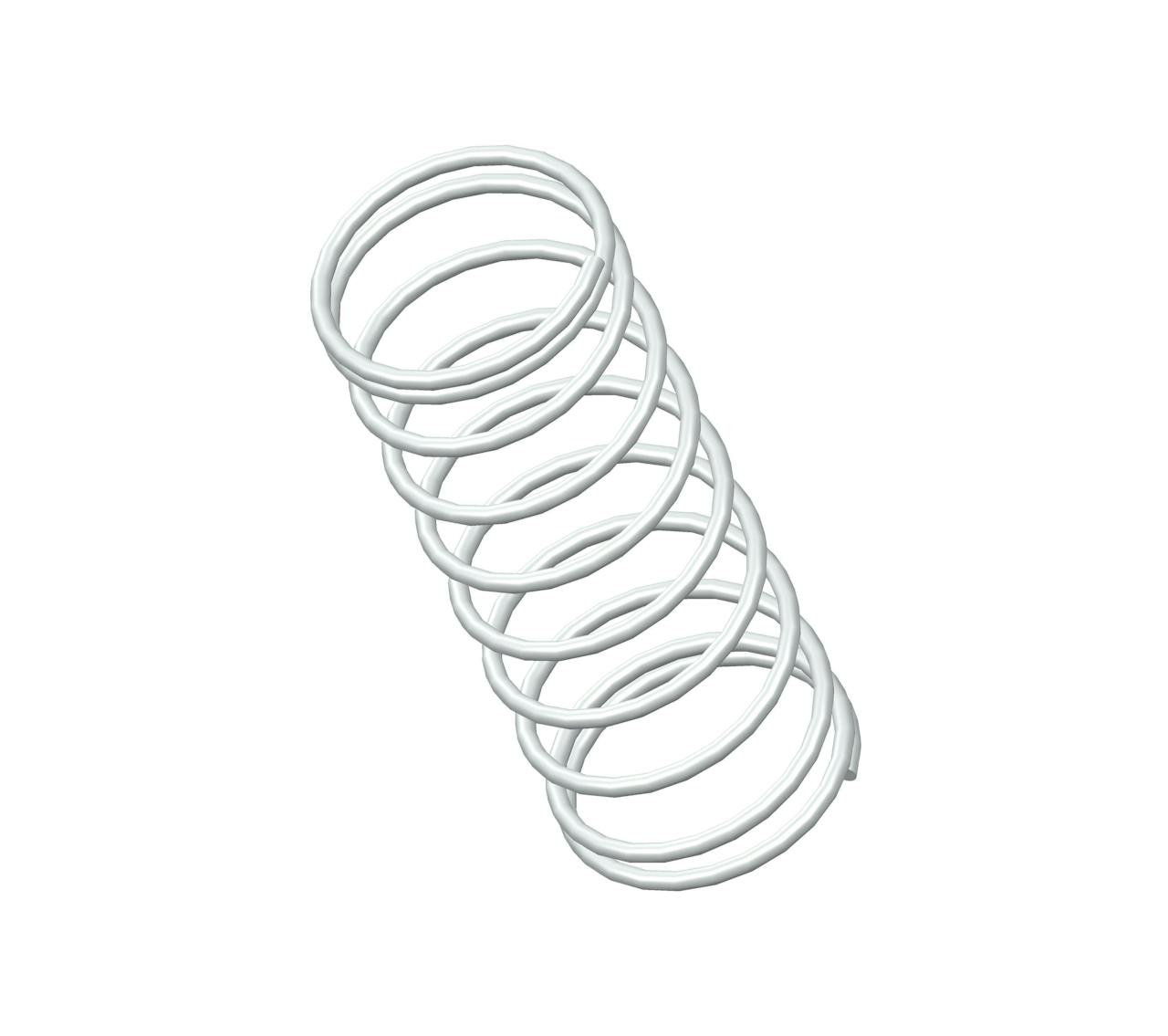

H-7CS - 1" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 10 coils and closed ends. This spring features an O.D. of 0.375", and an I.D. of 0.327".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | H-7 |
| Ends | Closed |
| Finish | None |
| Free Length | 1 in |
| Inside Diameter | 0.327 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.375 in |
| Part Type | Standard |
| Rate | 1.2 lbs/in |
| SKU | H-7CS |
| Solid Length | 0.26 in |
| Suggested Max Deflection | 0.74 in |
| Suggested Max Load | 0.88 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.024 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | H-7 |
| Ends | Closed |
| Finish | None |
| Free Length | 25.4 mm |
| Inside Diameter | 8.31 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 9.53 mm |
| Part Type | Standard |
| Rate | 0.21 N/mm |
| SKU | H-7CS |
| Solid Length | 6.6 mm |
| Suggested Max Deflection | 18.8 mm |
| Suggested Max Load | 3.91 N |
| Total Coils | 10 |
| Wire Diameter | 0.61 mm |
The compression spring H-7CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the H-7 compression spring design exhibits exceptional tensile strength and resilience.
The H-7 design is manufactured with a free length of 1", with an outer diameter of 0.375", an inner diameter of 0.327", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.2 lbs/in.
The H-7CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring H-7 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The H-7 design is manufactured with a free length of 1", with an outer diameter of 0.375", an inner diameter of 0.327", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.2 lbs/in.
The H-7CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring H-7 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
