H-77CS - 0.34" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

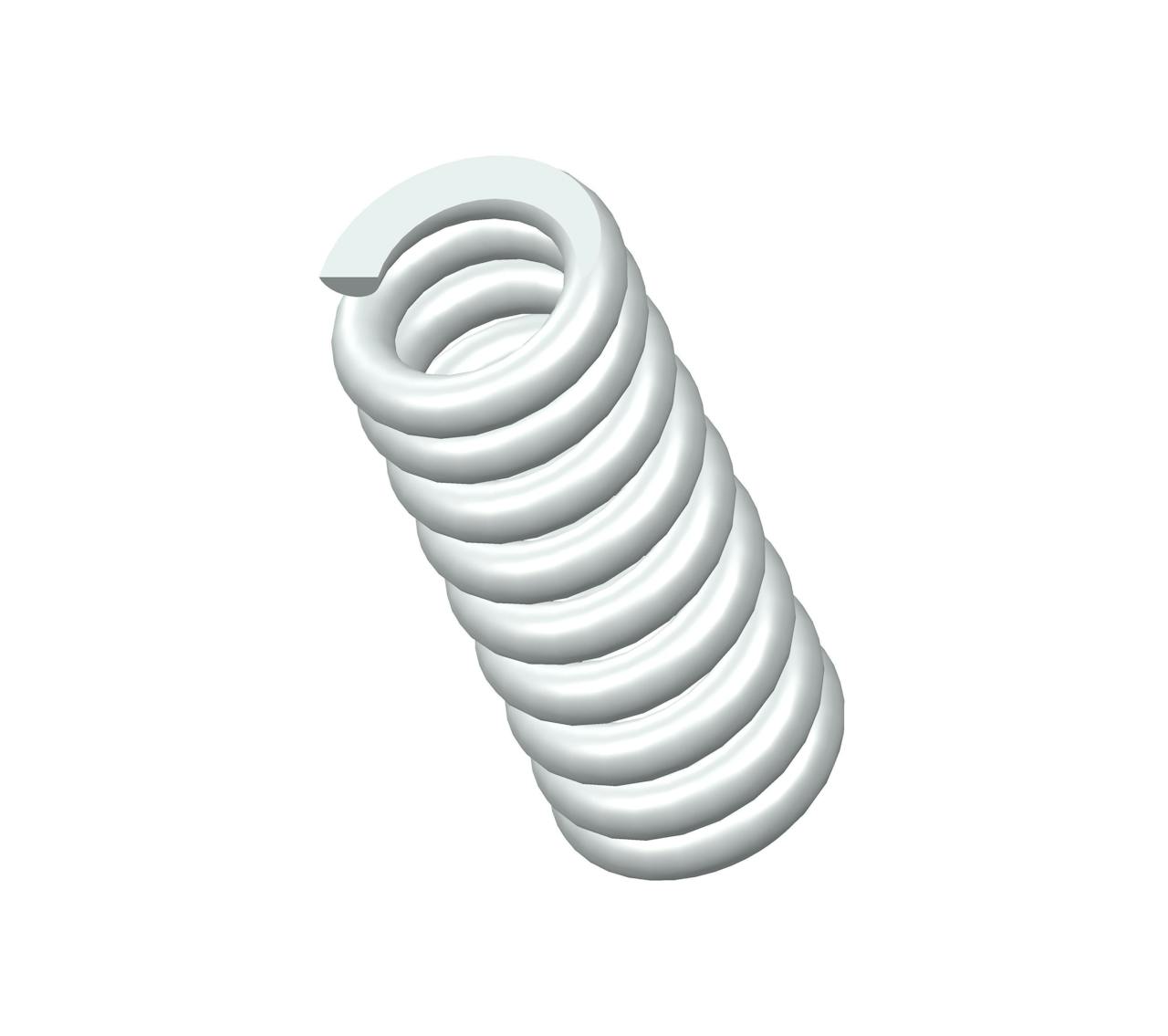

Compression spring manufactured from 302/304 stainless steel with 9 coils and closed & ground ends. This spring features an O.D. of 0.14", and an I.D. of 0.084".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | H-77 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.34 in |
| Inside Diameter | 0.084 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.14 in |
| Part Type | Standard |
| Rate | 78 lbs/in |
| SKU | H-77CS |
| Solid Length | 0.25 in |
| Suggested Max Deflection | 0.07 in |
| Suggested Max Load | 5.5 lbf |
| Total Coils | 9 |
| Wire Diameter | 0.028 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | H-77 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 8.64 mm |
| Inside Diameter | 2.13 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 3.56 mm |
| Part Type | Standard |
| Rate | 13.66 N/mm |
| SKU | H-77CS |
| Solid Length | 6.35 mm |
| Suggested Max Deflection | 1.78 mm |
| Suggested Max Load | 24.46 N |
| Total Coils | 9 |
| Wire Diameter | 0.71 mm |
The compression spring H-77CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the H-77 compression spring design exhibits exceptional tensile strength and resilience.
The H-77 design is manufactured with a free length of 0.34", with an outer diameter of 0.14", an inner diameter of 0.084", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 78 lbs/in.
The H-77CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring H-77 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
