Century Spring

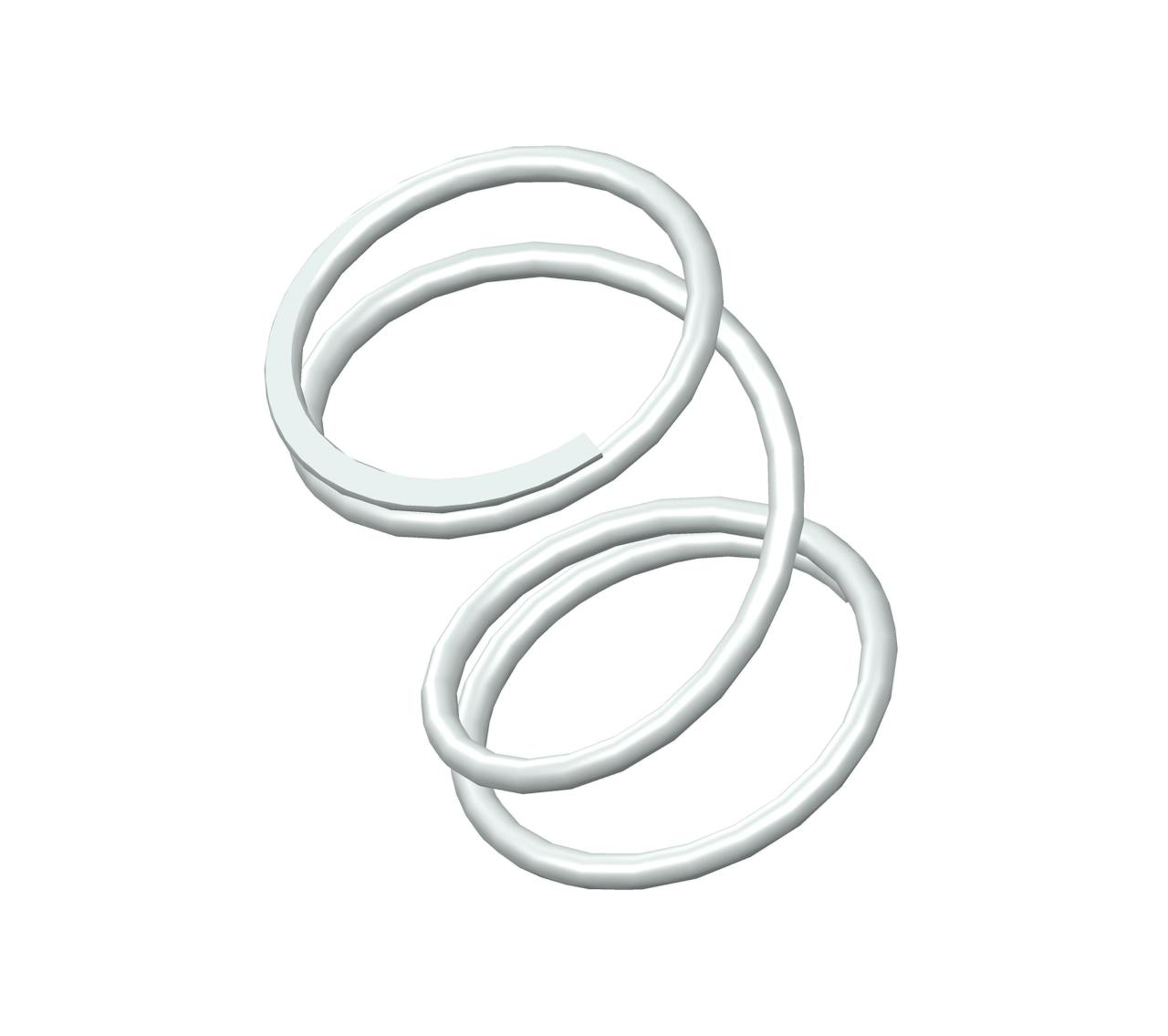

H-62CS - 0.56" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 3.75 coils and closed & ground ends. This spring features an O.D. of 0.42", and an I.D. of 0.356".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name H-62
Ends Closed & Ground
Finish None
Free Length 0.56 in
Inside Diameter 0.356 in
Material 302/304 Stainless Steel
Outside Diameter 0.42 in
Part Type Standard
Rate 13 lbs/in
SKU H-62CS
Solid Length 0.12 in
Suggested Max Deflection 0.23 in
Suggested Max Load 3 lbf
Total Coils 3.75
Wire Diameter 0.032 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name H-62
Ends Closed & Ground
Finish None
Free Length 14.22 mm
Inside Diameter 9.04 mm
Material 302/304 Stainless Steel
Outside Diameter 10.67 mm
Part Type Standard
Rate 2.28 N/mm
SKU H-62CS
Solid Length 3.05 mm
Suggested Max Deflection 5.84 mm
Suggested Max Load 13.34 N
Total Coils 3.75
Wire Diameter 0.81 mm
The H-62 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The H-62CS compression spring is designed with a free length of 1.06" total of 9 coils, and a rate of 99 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The H-62 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
