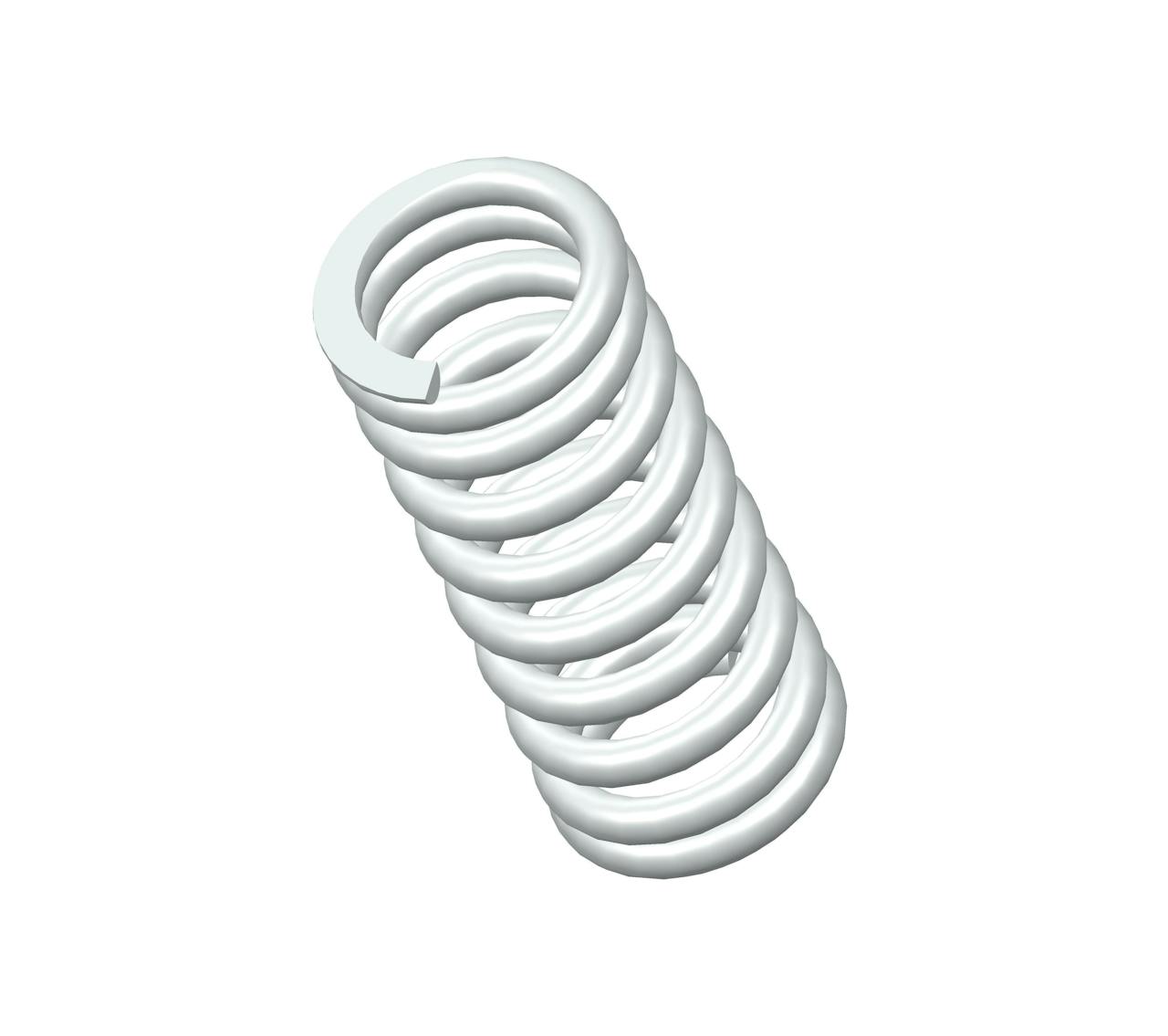

H-22CS - 0.88" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 9.5 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.252".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | H-22 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.88 in |
| Inside Diameter | 0.252 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.36 in |
| Part Type | Standard |
| Rate | 50 lbs/in |
| SKU | H-22CS |
| Solid Length | 0.51 in |
| Suggested Max Deflection | 0.29 in |
| Suggested Max Load | 14 lbf |
| Total Coils | 9.5 |
| Wire Diameter | 0.054 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | H-22 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 22.35 mm |
| Inside Diameter | 6.4 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 9.14 mm |
| Part Type | Standard |
| Rate | 8.76 N/mm |
| SKU | H-22CS |
| Solid Length | 12.95 mm |
| Suggested Max Deflection | 7.37 mm |
| Suggested Max Load | 62.27 N |
| Total Coils | 9.5 |
| Wire Diameter | 1.37 mm |
The compression spring H-22CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the H-22 compression spring design exhibits exceptional tensile strength and resilience.
The H-22 design is manufactured with a free length of 0.88", with an outer diameter of 0.36", an inner diameter of 0.252", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 50 lbs/in.
The H-22CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring H-22 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The H-22 design is manufactured with a free length of 0.88", with an outer diameter of 0.36", an inner diameter of 0.252", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 50 lbs/in.
The H-22CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring H-22 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
