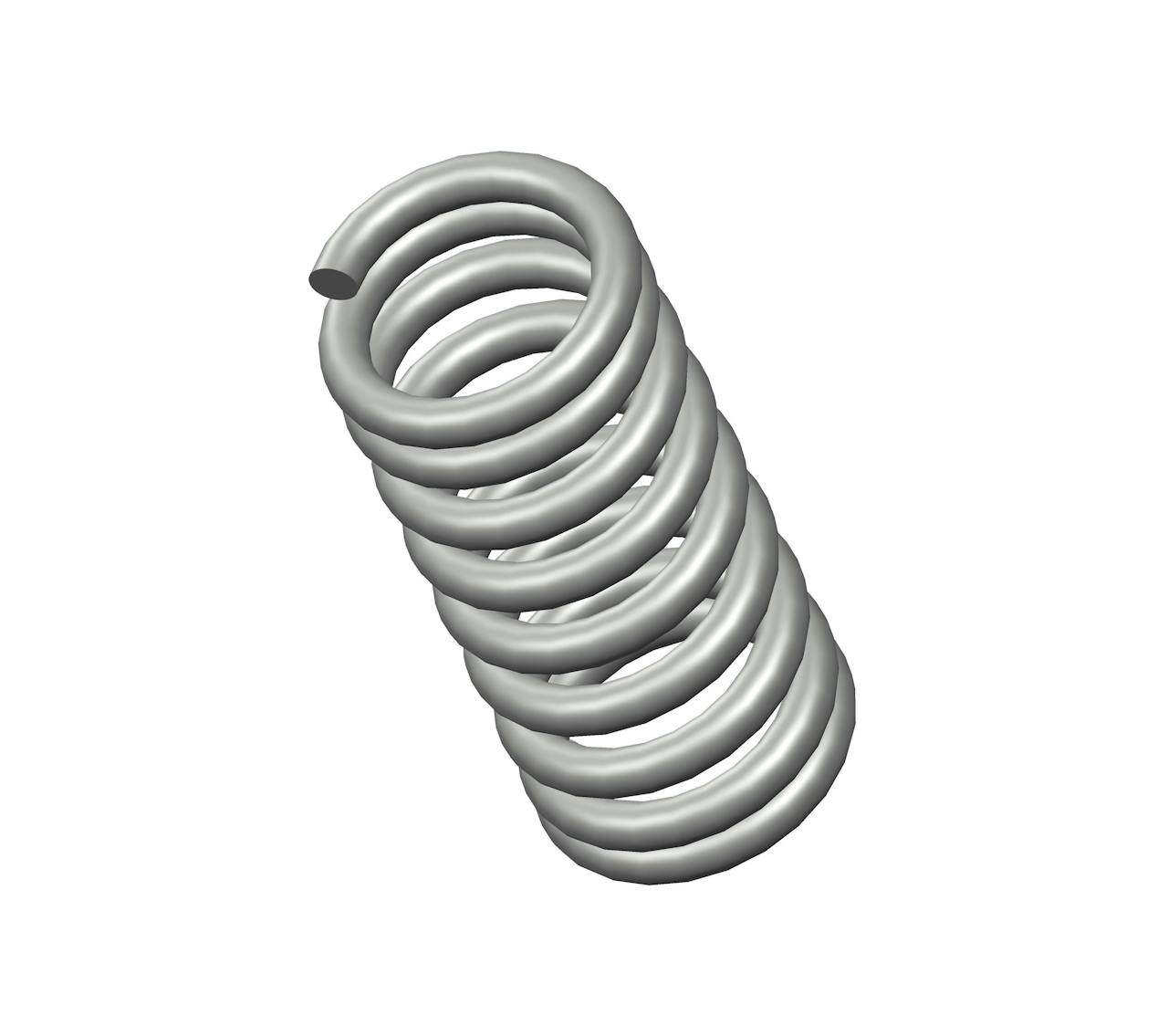

GG-59CS - 0.47" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from music wire with 9 coils and closed ends. This spring features an O.D. of 0.203", and an I.D. of 0.143".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | GG-59 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.47 in |
| Inside Diameter | 0.143 in |
| Material | Music Wire |
| Outside Diameter | 0.203 in |
| Part Type | Standard |
| Rate | 32 lbs/in |
| SKU | GG-59CS |
| Solid Length | 0.3 in |
| Suggested Max Deflection | 0.17 in |
| Suggested Max Load | 5.4 lbf |
| Total Coils | 9 |
| Wire Diameter | 0.03 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | GG-59 |
| Ends | Closed |
| Finish | None |
| Free Length | 11.94 mm |
| Inside Diameter | 3.63 mm |
| Material | Music Wire |
| Outside Diameter | 5.16 mm |
| Part Type | Standard |
| Rate | 5.6 N/mm |
| SKU | GG-59CS |
| Solid Length | 7.62 mm |
| Suggested Max Deflection | 4.32 mm |
| Suggested Max Load | 24.02 N |
| Total Coils | 9 |
| Wire Diameter | 0.76 mm |
The GG-59 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The GG-59CS compression spring is designed with a free length of 1.88" total of 15 coils, and a rate of 1.7 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The GG-59 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The GG-59CS compression spring is designed with a free length of 1.88" total of 15 coils, and a rate of 1.7 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The GG-59 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
