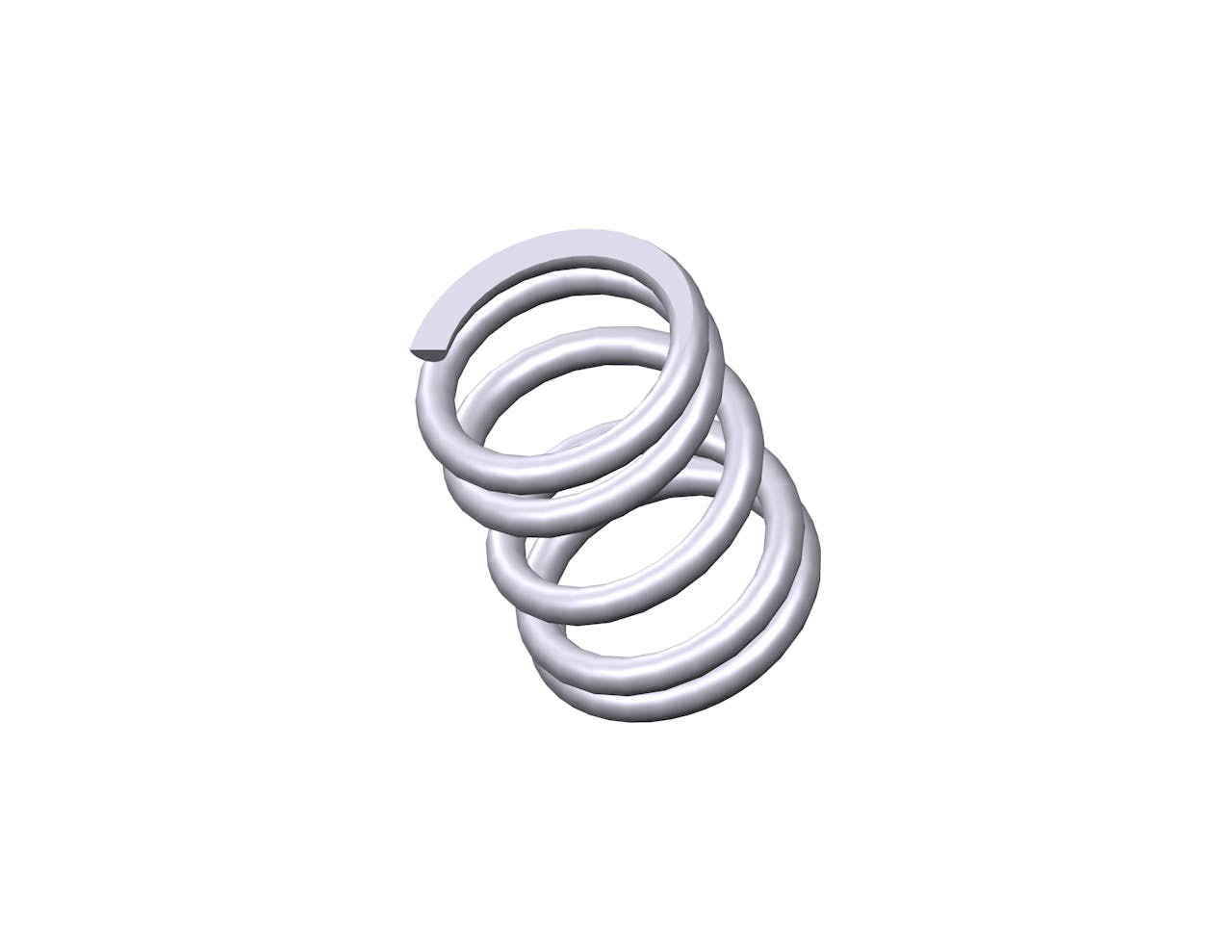

GG-53CS - 1.13" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.875", and an I.D. of 0.655".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | GG-53 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 1.13 in |
| Inside Diameter | 0.655 in |
| Material | Spring Steel |
| Outside Diameter | 0.875 in |
| Part Type | Standard |
| Rate | 157 lbs/in |
| SKU | GG-53CS |
| Solid Length | 0.55 in |
| Suggested Max Deflection | 0.3 in |
| Suggested Max Load | 47 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.11 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | GG-53 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 28.7 mm |
| Inside Diameter | 16.64 mm |
| Material | Spring Steel |
| Outside Diameter | 22.23 mm |
| Part Type | Standard |
| Rate | 27.49 N/mm |
| SKU | GG-53CS |
| Solid Length | 13.97 mm |
| Suggested Max Deflection | 7.62 mm |
| Suggested Max Load | 209.06 N |
| Total Coils | 5 |
| Wire Diameter | 2.79 mm |
The compression spring GG-53CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the GG-53 compression spring design exhibits exceptional tensile strength and resilience.
The GG-53 design is manufactured with a free length of 1.13", with an outer diameter of 0.875", an inner diameter of 0.655", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 157 lbs/in.
The GG-53CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring GG-53 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The GG-53 design is manufactured with a free length of 1.13", with an outer diameter of 0.875", an inner diameter of 0.655", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 157 lbs/in.
The GG-53CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring GG-53 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
