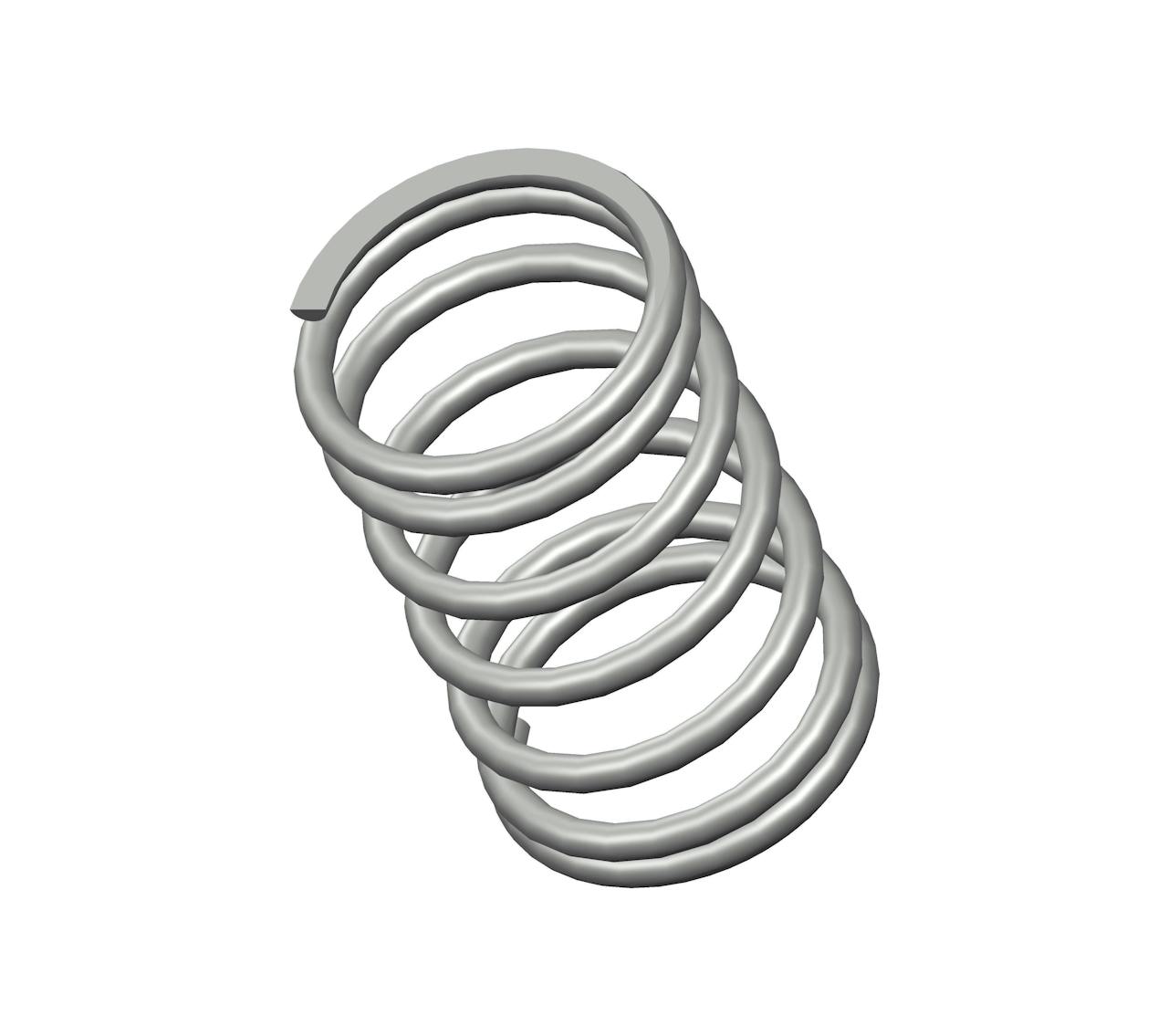

GG-48CS - 1.03" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from spring steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.64", and an I.D. of 0.52".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | GG-48 |
| Ends | Closed & Ground |
| Finish | Black Oxide |
| Free Length | 1.03 in |
| Inside Diameter | 0.52 in |
| Material | Spring Steel |
| Outside Diameter | 0.64 in |
| Part Type | Standard |
| Rate | 19 lbs/in |
| SKU | GG-48CS |
| Solid Length | 0.42 in |
| Suggested Max Deflection | 0.61 in |
| Suggested Max Load | 12 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.06 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | GG-48 |
| Ends | Closed & Ground |
| Finish | Black Oxide |
| Free Length | 26.16 mm |
| Inside Diameter | 13.21 mm |
| Material | Spring Steel |
| Outside Diameter | 16.26 mm |
| Part Type | Standard |
| Rate | 3.33 N/mm |
| SKU | GG-48CS |
| Solid Length | 10.67 mm |
| Suggested Max Deflection | 15.49 mm |
| Suggested Max Load | 53.38 N |
| Total Coils | 7 |
| Wire Diameter | 1.52 mm |
The compression spring GG-48CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the GG-48 compression spring design exhibits exceptional tensile strength and resilience.
The GG-48 design is manufactured with a free length of 1.03", with an outer diameter of 0.64", an inner diameter of 0.52", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 19 lbs/in.
The GG-48CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring GG-48 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The GG-48 design is manufactured with a free length of 1.03", with an outer diameter of 0.64", an inner diameter of 0.52", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 19 lbs/in.
The GG-48CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring GG-48 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
