GG-3CS - 0.47" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

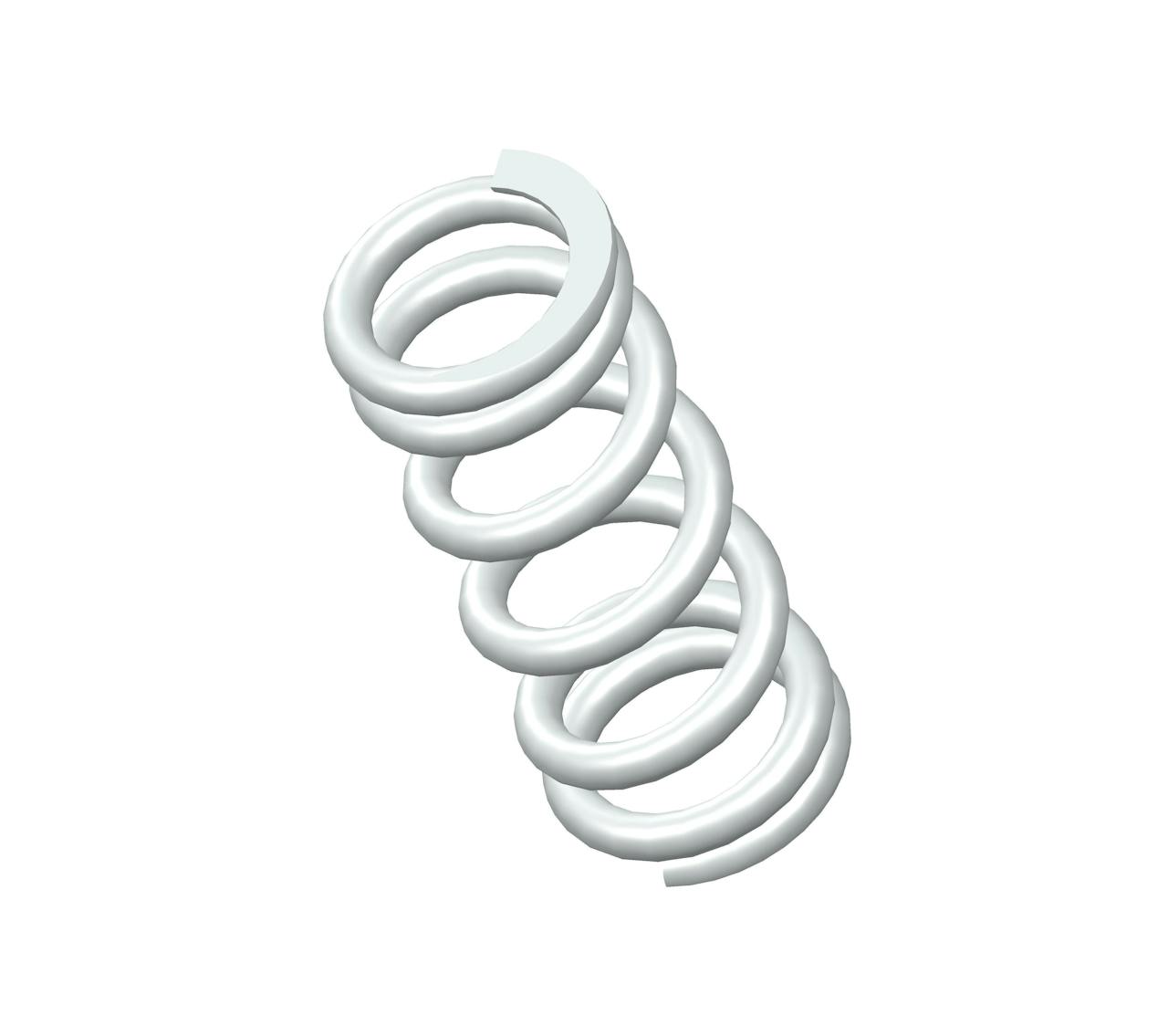

Compression spring manufactured from 302/304 stainless steel with 6.5 coils and closed & ground ends. This spring features an O.D. of 0.188", and an I.D. of 0.13".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name GG-3
Ends Closed & Ground
Finish None
Free Length 0.47 in
Inside Diameter 0.13 in
Material 302/304 Stainless Steel
Outside Diameter 0.188 in
Part Type Standard
Rate 51 lbs/in
SKU GG-3CS
Solid Length 0.19 in
Suggested Max Deflection 0.09 in
Suggested Max Load 4.7 lbf
Total Coils 6.5
Wire Diameter 0.029 in
The compression spring GG-3CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the GG-3 compression spring design exhibits exceptional tensile strength and resilience.

The GG-3 design is manufactured with a free length of 0.47", with an outer diameter of 0.188", an inner diameter of 0.13", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 51 lbs/in.

The GG-3CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring GG-3 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
