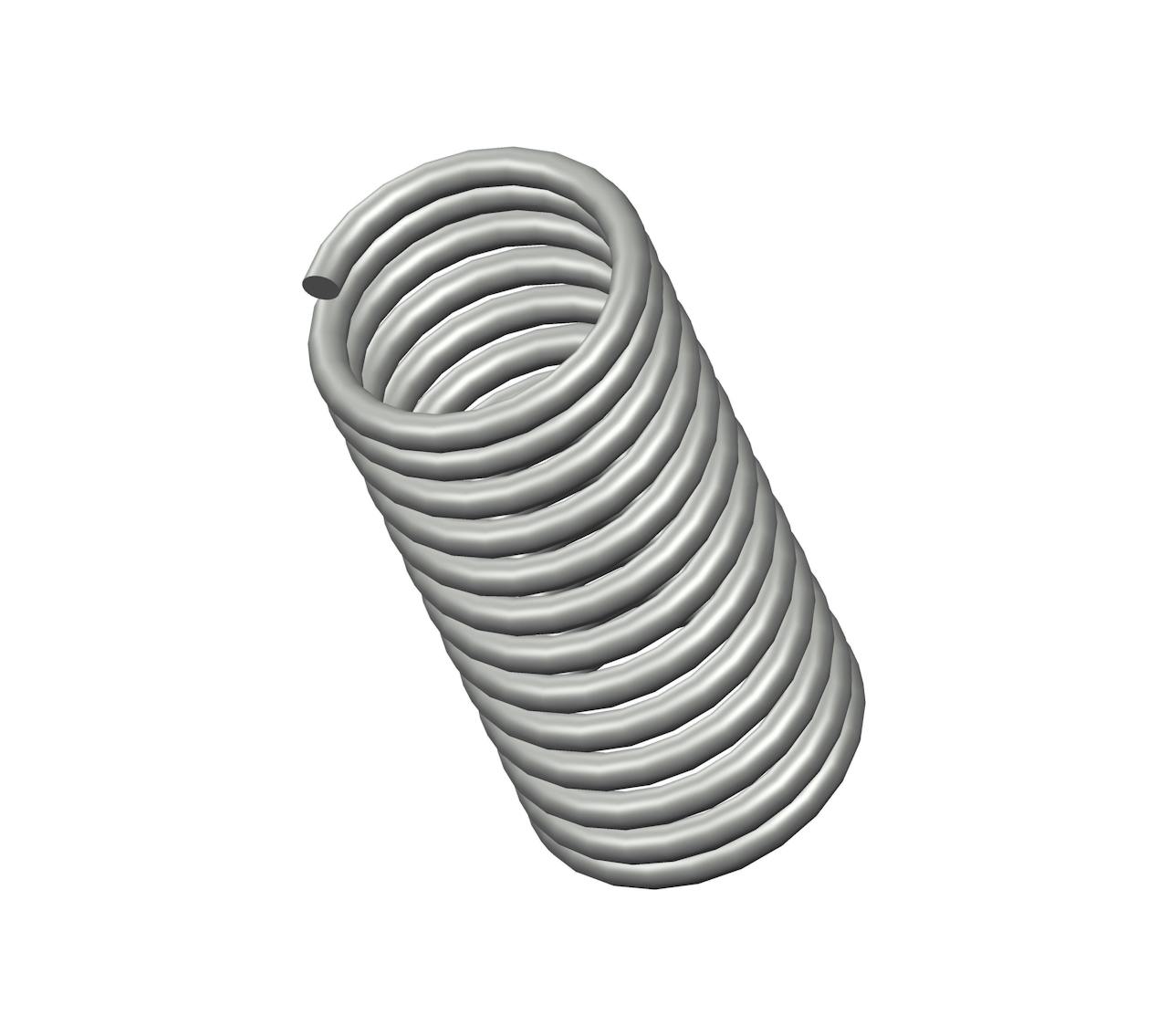

GG-100CS - 1.5" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 13 coils and closed ends. This spring features an O.D. of 0.703", and an I.D. of 0.553".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | GG-100 |
| Ends | Closed |
| Finish | Gold Iridite |
| Free Length | 1.5 in |
| Inside Diameter | 0.553 in |
| Material | Spring Steel |
| Outside Diameter | 0.703 in |
| Part Type | Standard |
| Rate | 17 lbs/in |
| SKU | GG-100CS |
| Solid Length | 1.05 in |
| Suggested Max Deflection | 0.45 in |
| Suggested Max Load | 7.5 lbf |
| Total Coils | 13 |
| Wire Diameter | 0.075 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | GG-100 |
| Ends | Closed |
| Finish | Gold Iridite |
| Free Length | 38.1 mm |
| Inside Diameter | 14.05 mm |
| Material | Spring Steel |
| Outside Diameter | 17.86 mm |
| Part Type | Standard |
| Rate | 2.98 N/mm |
| SKU | GG-100CS |
| Solid Length | 26.67 mm |
| Suggested Max Deflection | 11.43 mm |
| Suggested Max Load | 33.36 N |
| Total Coils | 13 |
| Wire Diameter | 1.91 mm |
The compression spring GG-100CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the GG-100 compression spring design exhibits exceptional tensile strength and resilience.
The GG-100 design is manufactured with a free length of 1.5", with an outer diameter of 0.703", an inner diameter of 0.553", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 17 lbs/in.
The GG-100CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring GG-100 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The GG-100 design is manufactured with a free length of 1.5", with an outer diameter of 0.703", an inner diameter of 0.553", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 17 lbs/in.
The GG-100CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring GG-100 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
