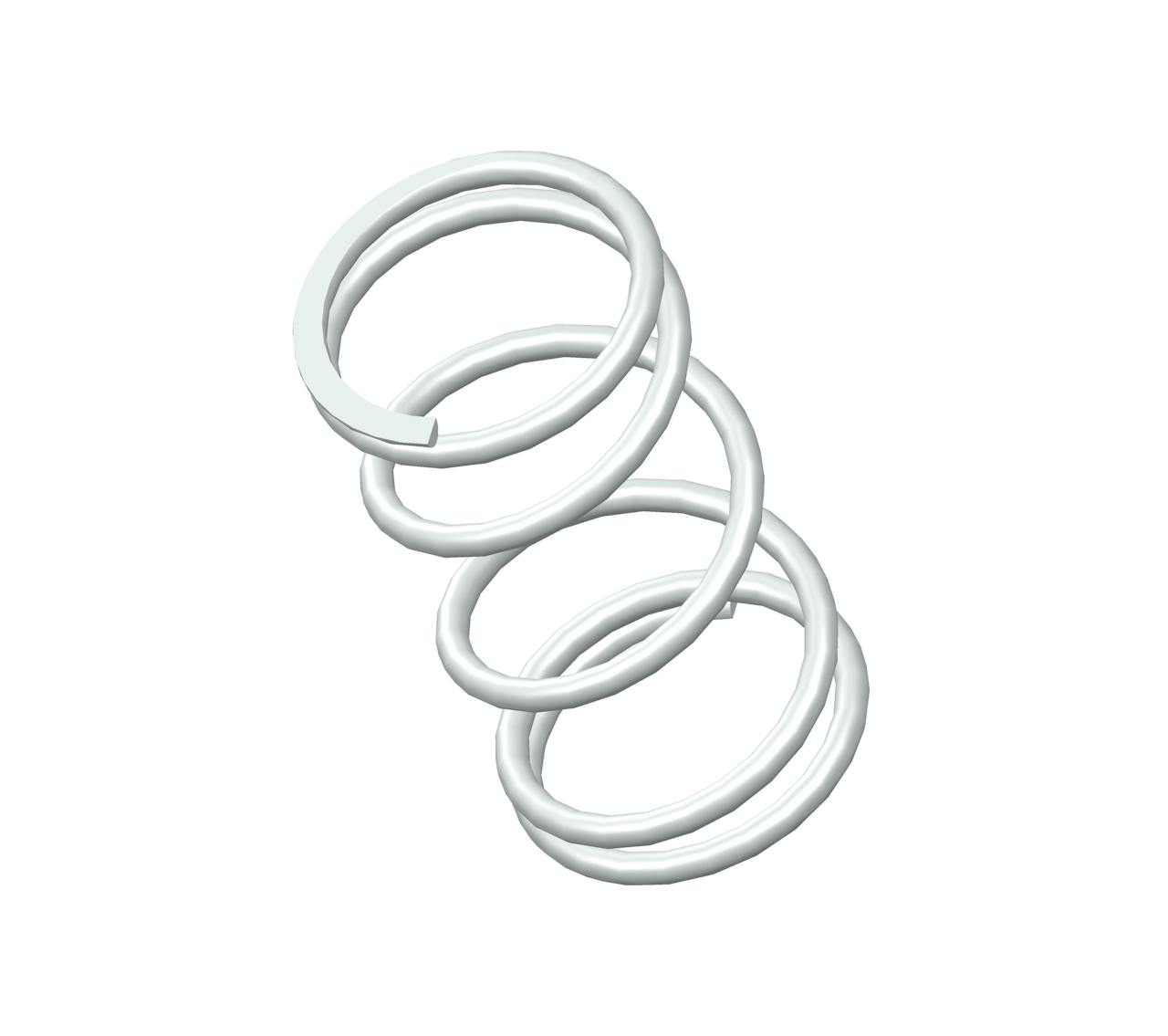

G-98CS - 0.47" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 5.5 coils and closed & ground ends. This spring features an O.D. of 0.25", and an I.D. of 0.206".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-98 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.47 in |
| Inside Diameter | 0.206 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 7.2 lbs/in |
| SKU | G-98CS |
| Solid Length | 0.12 in |
| Suggested Max Deflection | 0.23 in |
| Suggested Max Load | 1.7 lbf |
| Total Coils | 5.5 |
| Wire Diameter | 0.022 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-98 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 11.94 mm |
| Inside Diameter | 5.23 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 1.26 N/mm |
| SKU | G-98CS |
| Solid Length | 3.05 mm |
| Suggested Max Deflection | 5.84 mm |
| Suggested Max Load | 7.56 N |
| Total Coils | 5.5 |
| Wire Diameter | 0.56 mm |
The compression spring G-98CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the G-98 compression spring design exhibits exceptional tensile strength and resilience.
The G-98 design is manufactured with a free length of 0.47", with an outer diameter of 0.25", an inner diameter of 0.206", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.2 lbs/in.
The G-98CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring G-98 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
