G-8CS - 0.16" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

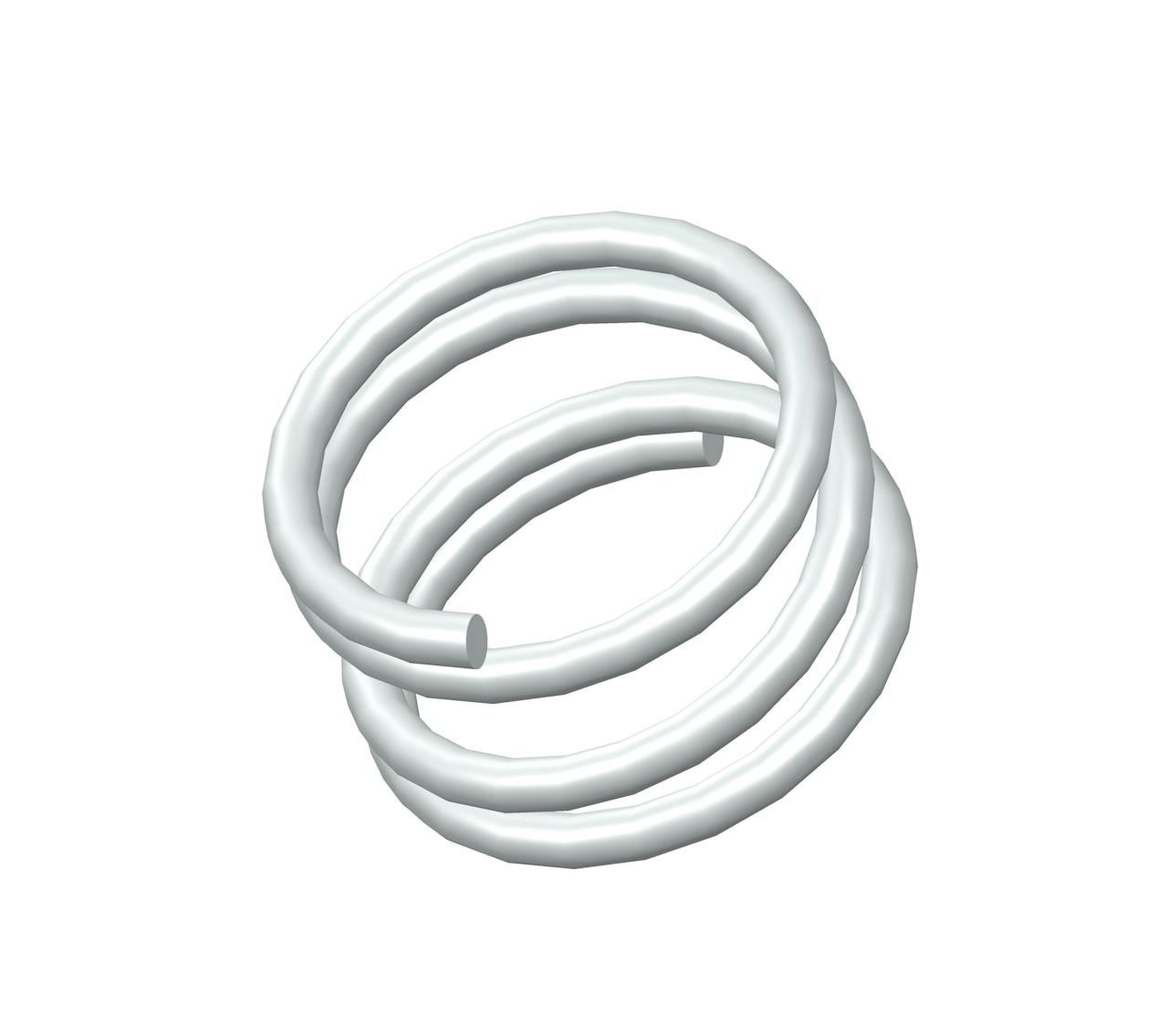

Compression spring manufactured from 302/304 stainless steel with 3.5 coils and closed ends. This spring features an O.D. of 0.234", and an I.D. of 0.19".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-8 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.16 in |
| Inside Diameter | 0.19 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 21 lbs/in |
| SKU | G-8CS |
| Solid Length | 0.1 in |
| Suggested Max Deflection | 0.06 in |
| Suggested Max Load | 1.2 lbf |
| Total Coils | 3.5 |
| Wire Diameter | 0.022 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-8 |
| Ends | Closed |
| Finish | None |
| Free Length | 4.06 mm |
| Inside Diameter | 4.83 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 3.68 N/mm |
| SKU | G-8CS |
| Solid Length | 2.54 mm |
| Suggested Max Deflection | 1.52 mm |
| Suggested Max Load | 5.34 N |
| Total Coils | 3.5 |
| Wire Diameter | 0.56 mm |
The compression spring G-8CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the G-8 compression spring design exhibits exceptional tensile strength and resilience.
The G-8 design is manufactured with a free length of 0.16", with an outer diameter of 0.234", an inner diameter of 0.19", and a total of 3.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 21 lbs/in.
The G-8CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring G-8 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The G-8 design is manufactured with a free length of 0.16", with an outer diameter of 0.234", an inner diameter of 0.19", and a total of 3.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 21 lbs/in.
The G-8CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring G-8 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
