Shop Online > Springs > Compression > Regular

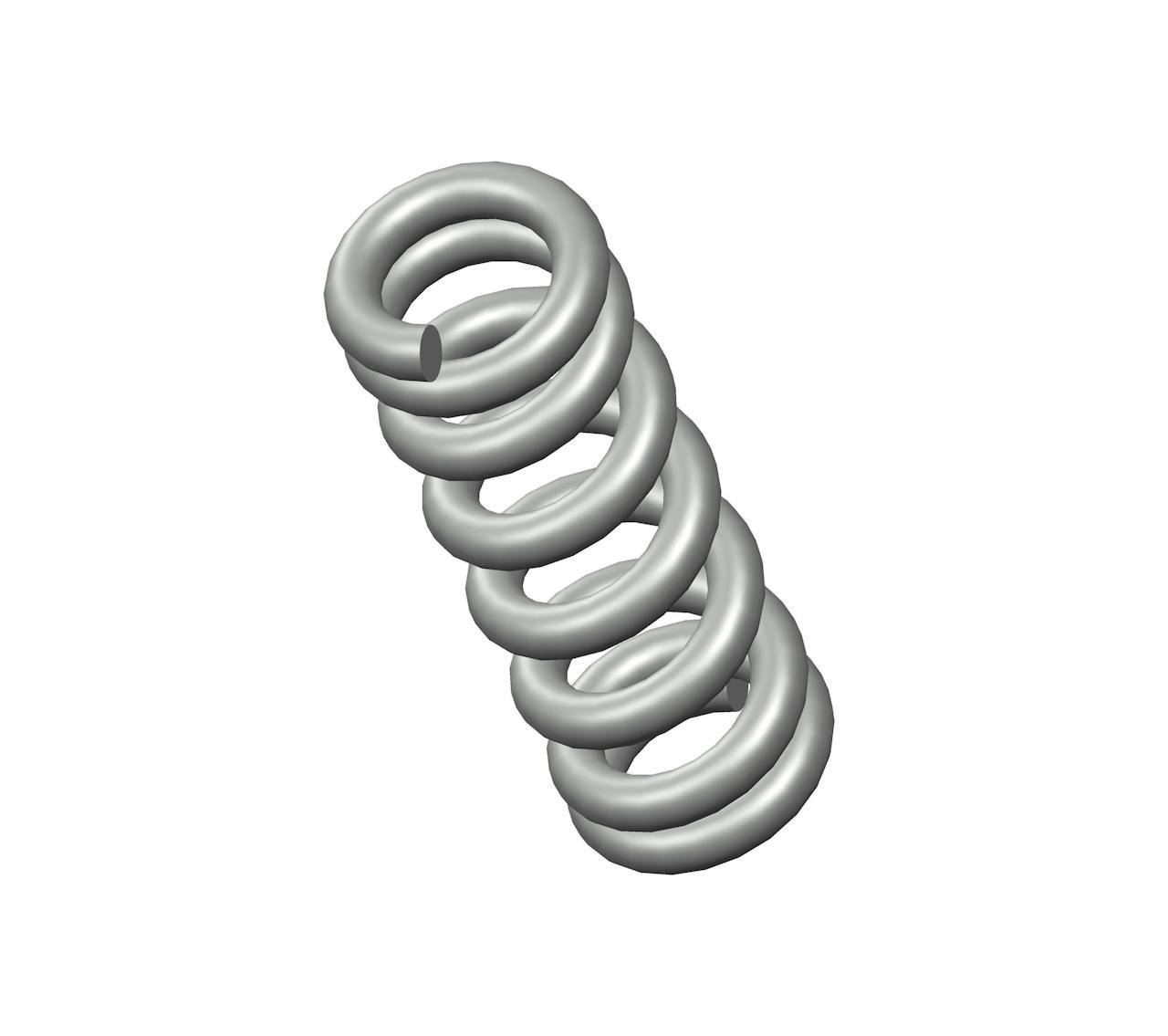

G-5CS - 0.38" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 7.5 coils and closed ends. This spring features an O.D. of 0.125", and an I.D. of 0.075".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-5 |
| Ends | Closed |
| Finish | Black Oxide |
| Free Length | 0.38 in |
| Inside Diameter | 0.075 in |
| Material | Music Wire |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 102 lbs/in |
| SKU | G-5CS |
| Solid Length | 0.21 in |
| Suggested Max Deflection | 0.06 in |
| Suggested Max Load | 6.5 lbf |
| Total Coils | 7.5 |
| Wire Diameter | 0.025 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-5 |
| Ends | Closed |
| Finish | Black Oxide |
| Free Length | 9.65 mm |
| Inside Diameter | 1.91 mm |
| Material | Music Wire |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 17.86 N/mm |
| SKU | G-5CS |
| Solid Length | 5.33 mm |
| Suggested Max Deflection | 1.52 mm |
| Suggested Max Load | 28.91 N |
| Total Coils | 7.5 |
| Wire Diameter | 0.64 mm |
The G-5 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The G-5CS compression spring is designed with a free length of 1.38" total of 9 coils, and a rate of 42 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The G-5 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The G-5CS compression spring is designed with a free length of 1.38" total of 9 coils, and a rate of 42 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The G-5 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
